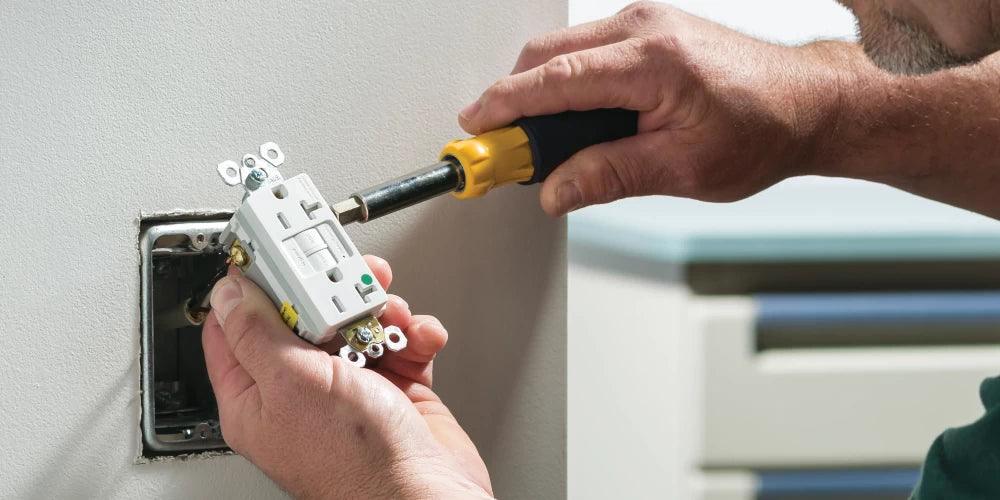

How To Wire and Install a GFCI Outlet

The installation of GFCI outlets is a proactive measure in safeguarding a home's electrical system and is now a standard in new constructions. This modern safety standard not only protects the residents but also contributes to the overall electrical efficiency and reliability of the home infrastructure.

Safety Precautions

Before beginning the installation of a GFCI outlet, it is crucial to ensure all power is turned off at the service panel. This is a fundamental step to prevent any electrical shock or accidents during the installation process. Homeowners should use a non-contact voltage tester to confirm that power is indeed off. This tester should be applied to the terminals of the existing outlet to verify no current is present. If there is any uncertainty or if the outlet shows signs of damage such as overheating or sparking, consulting a qualified electrician is strongly recommended.

Shop GFCI Outlets ►

Shop All Electrical Outlets ►

Installation Steps

1. Turn Off Power: Ensure the power supply to the circuit is shut off at the breaker panel to guarantee safety.
2. Remove Existing Outlet: Carefully remove the wall plate and use a screwdriver to detach the existing outlet from the junction box.
3. Check Wiring: Examine the wires for any signs of wear or damage. If the existing wires are not long enough or if there are signs of damage, professional advice may be needed.
4. Connect Wires to New GFCI: Attach the wires to the new GFCI outlet. Ensure that the 'line' wires (power in) are connected to the line terminals and the 'load' wires (power out) to the load terminals. Typically, the black (hot) wire connects to the brass terminal, and the white (neutral) wire connects to the silver terminal. The bare copper wire should be connected to the green grounding screw.
5. Secure the GFCI Outlet: Carefully fold and tuck the wires into the junction box and secure the GFCI outlet using the provided screws.
6. Reattach Faceplate: Once the GFCI outlet is secured, replace the faceplate.

Testing the Outlet

After installation, it is imperative to test the GFCI outlet to ensure it is functioning correctly:

1. Restore Power: Turn on the power at the breaker panel.
2. Test GFCI Functionality: Press the 'Test' button on the GFCI outlet. This should cause the 'Reset' button to pop out, indicating the GFCI has tripped and is operational.
3. Reset the Outlet: Press the 'Reset' button to restore power to the outlet. The outlet should now be active, and the indicator light (if present) should turn on.
4. Use a Receptacle Tester: For further verification, use a receptacle tester to check for any wiring errors.

Regular testing of the GFCI outlet, at least once a month, is recommended to ensure ongoing protection. If the GFCI fails to trip when tested or if it does not reset, it may need to be replaced.
