American Lighting Minuet — Compact 24V Flexible LED Neon Tape Light

Turn cabinet edges, curved woodwork, and architectural details into a smooth, continuous line of light. American Lighting Minuet combines flexible LED lighting with a fully encased silicone diffuser, creating an evenly illuminated neon effect without a separate diffusion housing. Its compact 4×6 mm side-bend and 6×6 mm top-bend profiles bring neon linear light into narrow reveals and small-scale accent installations.

Choose the bend direction that suits your layout, then select 2700K, 3000K, or 4000K and a length of 3.28 ft, 6.56 ft, 9.84 ft, or 16.4 ft. Both profiles operate at 24V DC and 2.43W/ft, with a 120° beam angle and a 50,000-hour rated life.

Key Features

• Smooth, Diffused Neon Effect: Fully encased silicone creates an even line of light for visible outlines and accent details, without a separate diffusion housing.
• Two Compact Bend Profiles: Choose 4×6 mm side-bend or 6×6 mm top-bend to match your installation's required bending direction. Neither profile is an all-direction bend product.
• Output Matched to Your Project: The 4×6 profile delivers 93–105 lm/ft; the brighter 6×6 profile delivers 158–182 lm/ft. Output varies with color temperature.
• Three Static-White Options: Select 2700K for a warm, cozy effect, 3000K for soft-white accents, or 4000K for a cooler, crisper appearance. Each option is a fixed color temperature.
• Cut-to-Fit Flexibility: Cuttable anywhere to fit your layout, subject to the manufacturer's cutting and sealing instructions. Maximum continuous run: 16.4 ft (5 m).
• Adjustable Ambience: Specified 5–100% dimming with compatible TRIAC, ELV, or CL dimmer and driver combinations.
• Location Rating with Clear Limits: IP67 and cULus listed for wet locations; field cutting reduces the stated rating to IP65. Observe the manufacturer's weather and temperature restrictions.

Choose Your Profile: Side-Bend or Top-Bend

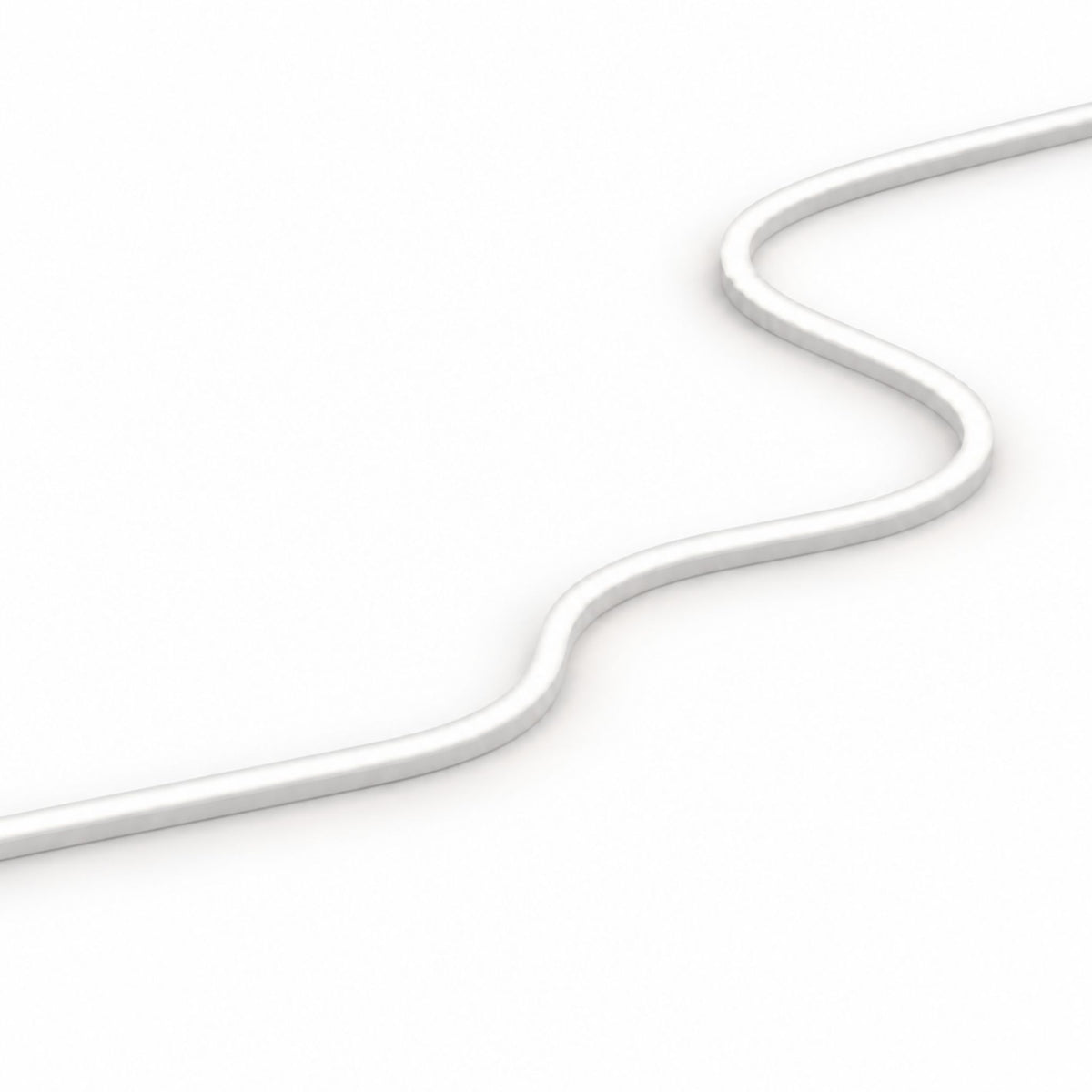

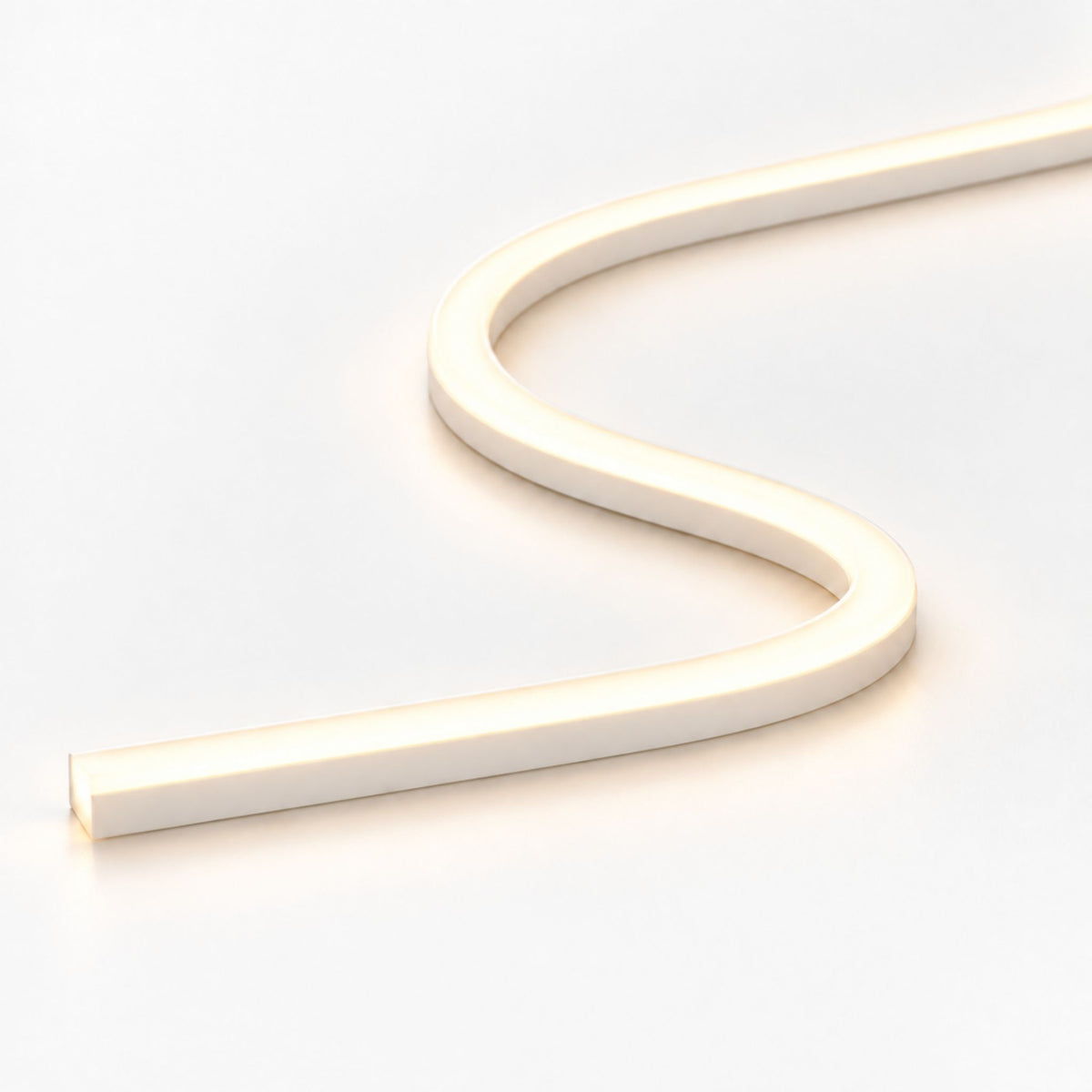

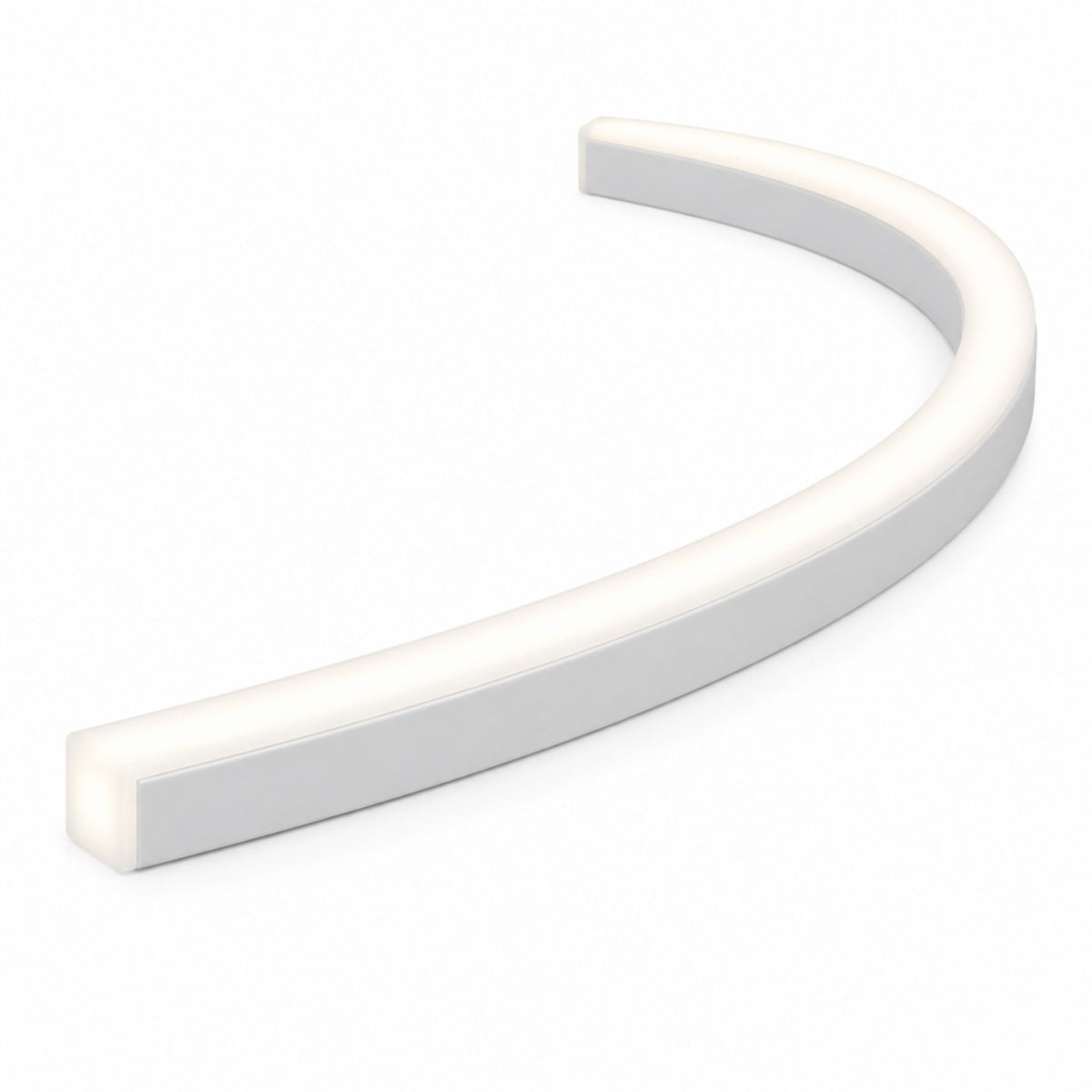

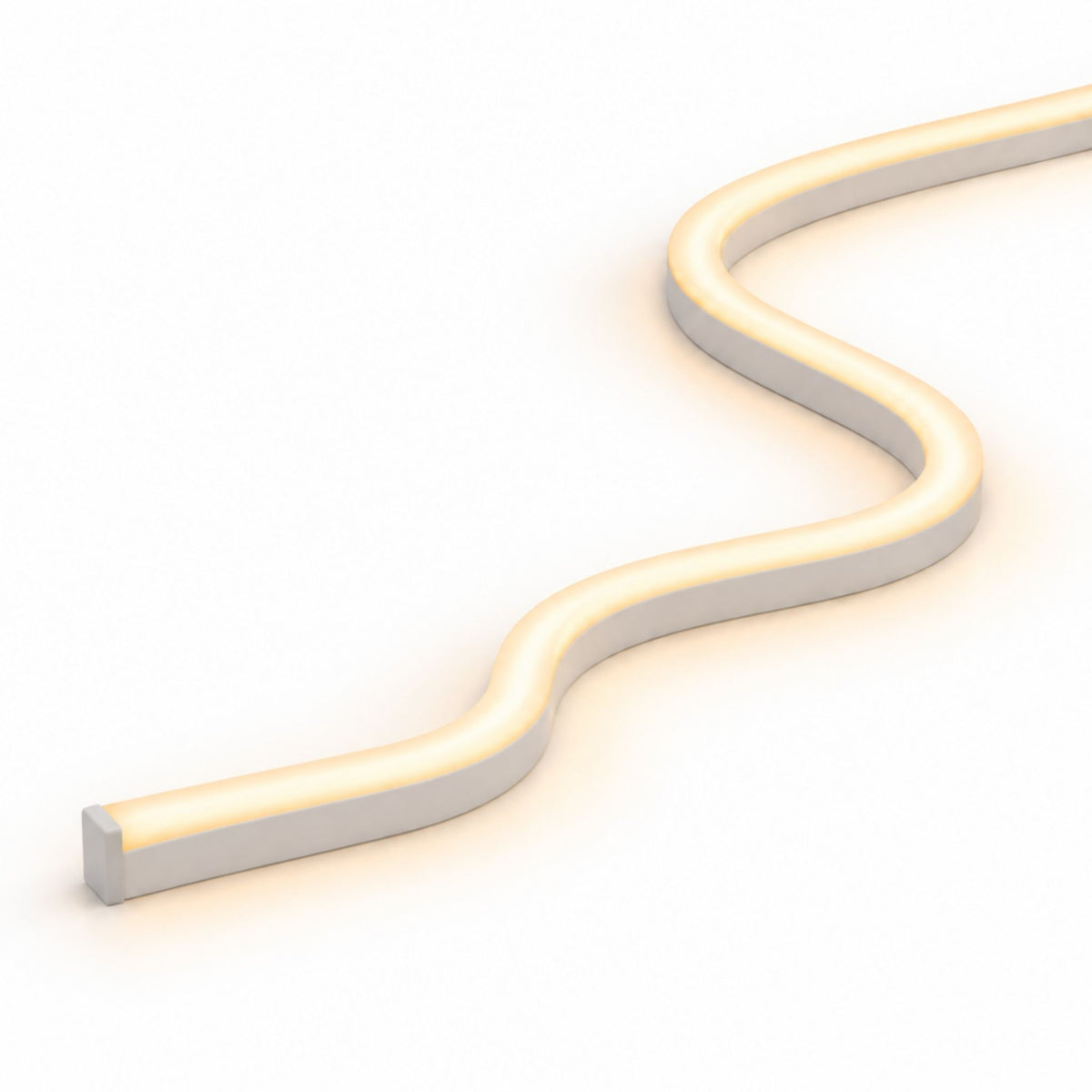

4×6 mm side-bend is the smaller profile, ideal when a compact neon outline is the priority and your layout requires side-bending. 6×6 mm top-bend suits layouts requiring top-bending and provides higher light output at every offered color temperature. Select the correct bend direction before ordering; the two profiles are not interchangeable for every curved layout. Maintain the specified 2.36 in (60 mm) bending radius and follow the installation guide.

Light Output & Color Temperature

• 2700K Warm White: 93 lm/ft in 4×6 side-bend; 158 lm/ft in 6×6 top-bend. A warm choice for relaxed residential and hospitality accents.
• 3000K Soft White: 98 lm/ft in 4×6 side-bend; 165 lm/ft in 6×6 top-bend. A versatile choice for cabinetry, living spaces, and decorative details.
• 4000K Cool White: 105 lm/ft in 4×6 side-bend; 182 lm/ft in 6×6 top-bend. A cooler appearance for contemporary interiors and display accents.

Where Minuet Works Best

• Cabinetry and narrow reveals where a compact, diffused light source is needed
• Cove details and curved woodwork with the appropriate bend profile
• Frames and architectural outlines that benefit from a continuous neon effect
• Bars, rails, and decorative accents in residential, retail, or hospitality projects

Power, Dimming & Run Planning

Minuet requires a compatible 24V DC LED power supply. Calculate the connected load as length in feet × 2.43W, then select a supply with the manufacturer's required capacity allowance. A 16.4 ft run uses approximately 40W before that allowance. Keep each continuous run within 16.4 ft (5 m); a higher-wattage supply does not increase this run limit. Plan longer layouts as separately fed runs.

For dimming, pair the strip with a compatible dimmable driver and TRIAC, ELV, or CL control. The specified range is 5–100%; performance depends on the selected driver and dimmer. Follow their wiring instructions rather than assuming every dimmer connects in the same place.

Cutting, Mounting & Location Limits

Minuet can be cut anywhere for a tailored fit, but field cutting reduces the stated rating from IP67 to IP65. Follow the manufacturer's termination and sealing instructions. Profile-specific mounting channels and installation accessories are available; the silicone diffuser replaces a separate diffusion housing, not the need for suitable mounting support.

Although Minuet is cULus listed for wet locations, do not install it in inclement weather or extreme conditions, including −25°C (−13°F) and below. This installation restriction applies despite the separately listed operating-temperature range of −40°C to 55°C. Confirm site conditions before installation.

Connections & Accessories

The manufacturer specifies a 6 ft lead wire and 6 ft tail wire with each neon. Plan for a compatible 24V power supply, mounting components, and any required dimming or connection accessories; verify the selected SKU's package contents before ordering. Minuet is available in 1 m, 2 m, 3 m, and 5 m lengths to match projects ranging from individual accents to full-length outlines.
