Fanimation TriAire Custom MAD8514 DC Ceiling Fan Motor Matte White Marine Grade - Blades Sold Separately
Available in stock (383)
About this item
About this item
- Airflow Performance: 6,765 CFM high / 821 CFM low at 230 CFM/W — suits large covered outdoor spaces and rooms over 400 sq ft (56 in+ blades).
- DC Motor: 158x22mm sensorless DC, 16 speeds, Summer & Winter reversible — quiet precision airflow from low-sip to full power.
- Marine Grade Rated: cUL marine grade — built for salt-air coastal environments: open patios, dockside, and beachfront. Energy Star rated.
- Smart Controls: TR305 remote + WiFi receiver included — 16-speed, CCT select, dimmer, timer. fanSync app (iOS & Android). TW306 wall control sold separately.
- Light Kit Compatible: LK8514M marine grade (18W, 1,600 lm, 3000/4000/5000K, CRI 90, opal frosted) — sold separately.
Description
Description
The Fanimation TriAire Custom MAD8514MWM is a marine grade DC ceiling fan motor in Matte White, engineered for the harshest coastal and salt-air environments. Pair it with a compatible BPW8514 blade set (44–60 in, sold separately) and an optional marine grade light kit to create your ideal fan. The DC 158x22mm sensorless motor delivers 6,765 CFM at high speed at 230 CFM/W (tested with 60 in blades), with 16 variable speeds and WiFi via the fanSync app. Energy Star rated.
⚠️ Motor unit only. Compatible blade sets (BPW8514) and light kit (LK8514M) sold separately at Bees Lighting.
Key Features- Airflow (w/ 60 in blades): 6,765 CFM high / 4,222 CFM med / 821 CFM low — 230 CFM/W high efficiency
- Motor Finish: Matte White (MWM) — marine grade
- Motor: DC 158x22mm sensorless DC, 16 variable speeds, reversible
- Compatible Blade Spans: 44, 48, 52, 56, 60 in (BPW8514 — sold separately)
- Wattage (w/ 60 in blades): 29W high / 8W med / 2W low
- Location: Marine grade — cUL listed, Energy Star
- Room Size: 44–48 in: up to 225 sq ft / 52–54 in: up to 400 sq ft / 56 in+: over 400 sq ft
Includes WiFi receiver and TR305 hand-held remote — 16-speed control, fresh air mode, Summer & Winter reverse, on/off plus full-range light dimmer, CCT select, fan/light timer, away mode, safe exit/off. Control via fanSync WiFi app (iOS & Android). Optional TW306 wall control sold separately.

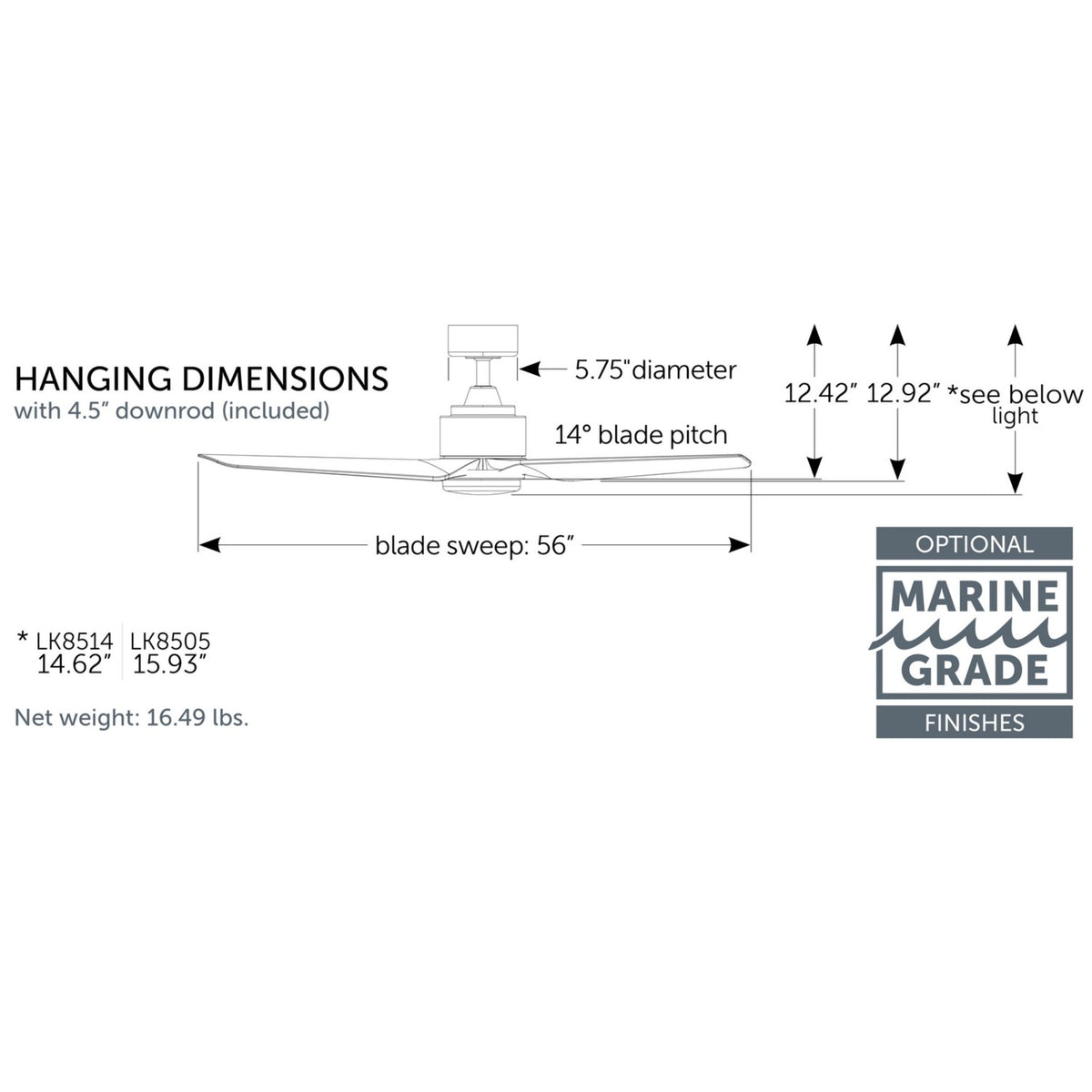

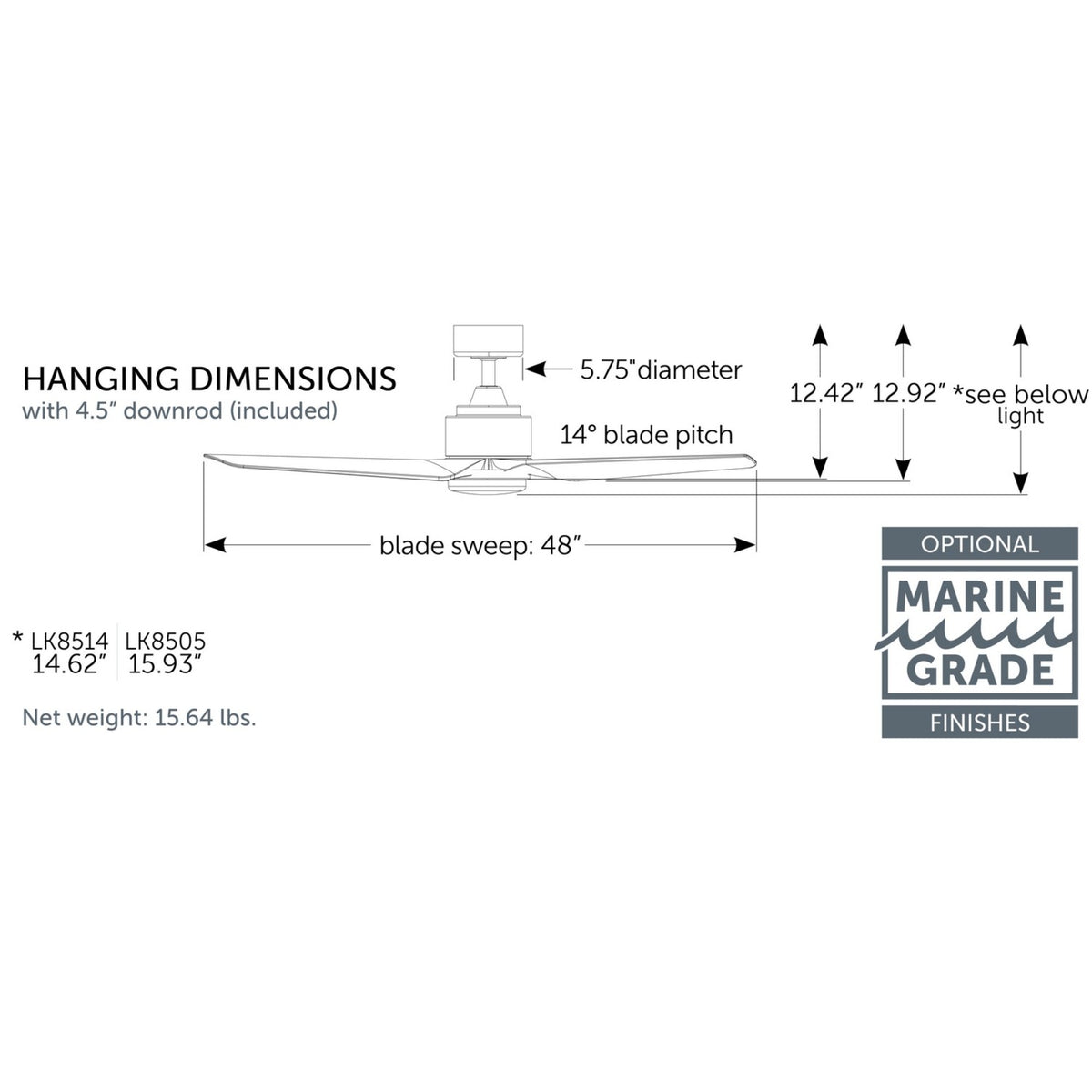

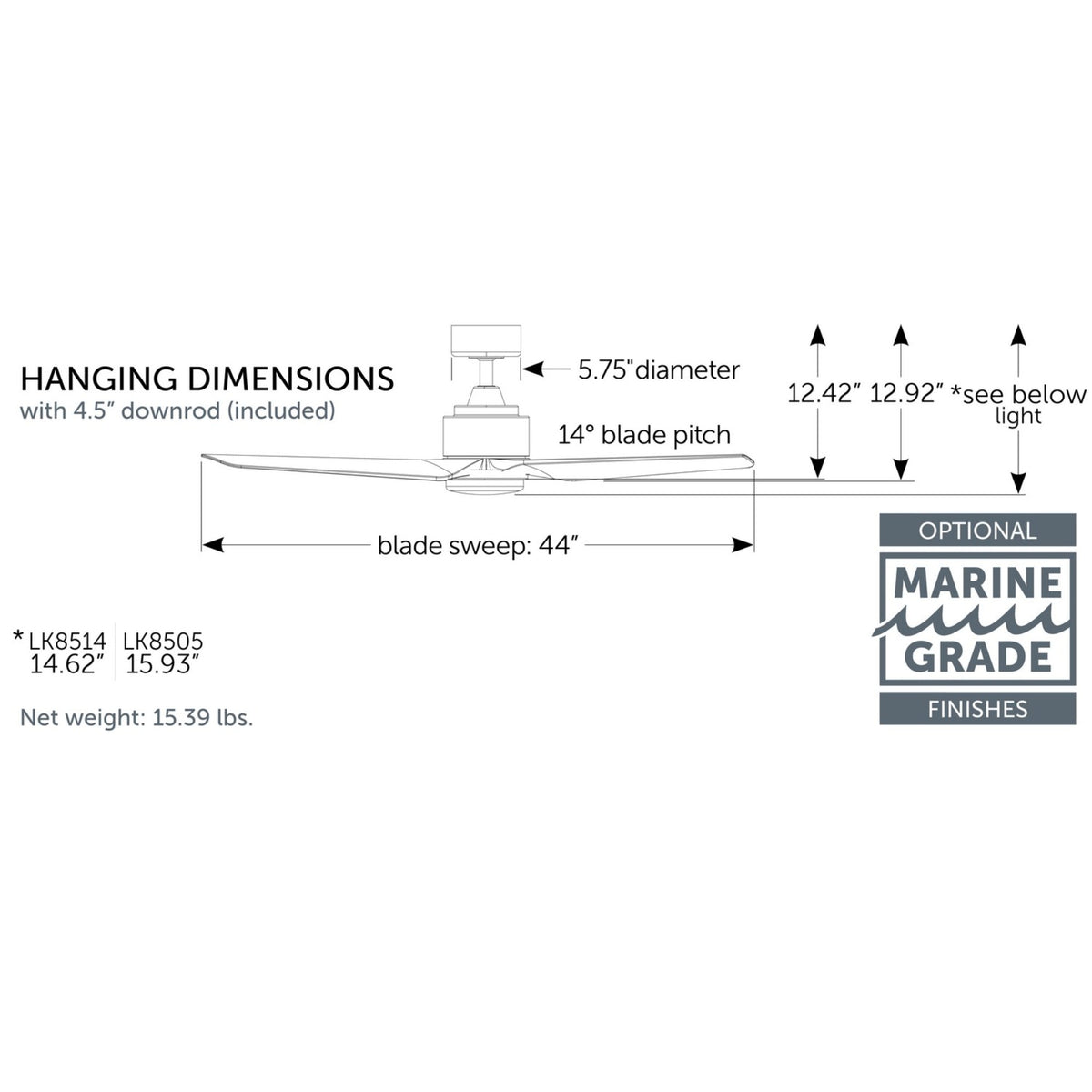

Construction & DesignMatte White marine grade motor housing, 5.75 in diameter. Built to withstand salt air and coastal moisture. Compatible with BPW8514 blade sets (44–60 in) and LK8514M marine grade light kit — all sold separately. cUL marine grade listed. Energy Star rated.
Fan PerformanceTested with BPW8514-60 (60 in) blades. Performance varies by blade span.
- High (16th): 6,765 CFM / 230 CFM/W / 29W
- Med (9th): 4,222 CFM / 503 CFM/W / 8W
- Low (1st): 821 CFM / 357 CFM/W / 2W
- Light kit ready: LK8514M marine grade (18W, 1,600 lm, 3000/4000/5000K, CRI 90) — sold separately
- BPW8514-44*** — 44 in / up to 225 sq ft
- BPW8514-48*** — 48 in / up to 225 sq ft
- BPW8514-52*** — 52 in / up to 400 sq ft
- BPW8514-56*** — 56 in / over 400 sq ft
- BPW8514-60*** — 60 in / over 400 sq ft
120V AC, 60Hz, 15A circuit. Downrod: 4.5 in included (1 in dia). Slope to 27° — SCB1-52 sloped ceiling ball available separately for up to 42°. Close-to-ceiling kit available separately. Additional downrods: 12, 18, 24, 36, 48, 60, 72 in. Motor dia: 5.75 in.
Suggested Downrod by Ceiling HeightShips with 4.5 in downrod (1 in dia). Blades sold separately — maintain 7 ft minimum floor-to-blade clearance once blade set is installed. Additional Fanimation downrods available separately.
- 9 ft → 12 in
- 10 ft → 18 in
- 12 ft → 24 in
- 14 ft → 36 in
- 16 ft → 48 in
- 18 ft → 60 in
- 20 ft → 72 in
- MAD8514MWM ceiling fan motor (Matte White, Marine Grade)
- TR305 hand-held remote (WiFi receiver included)
- 4.5 in downrod (1 in dia)
- Mounting hardware
