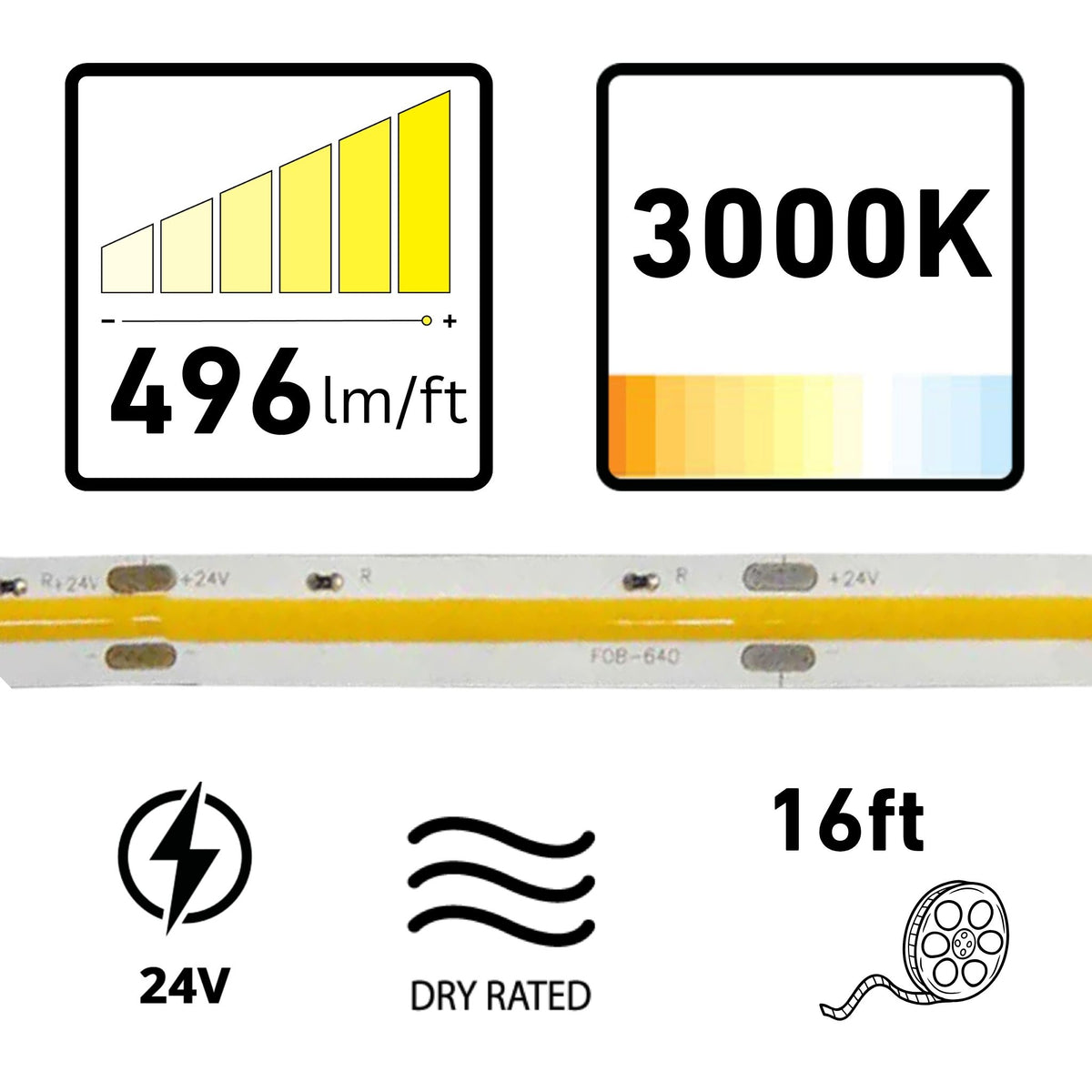

GM Lighting LTR-S SPEC - 24V LED tape light roll, 3000K warm white, 496 lm/ft, 16 ft length
GM Lighting LTR-S SPEC - LED tape light strip with dry-rated, Class 2, 95+ CRI, and warranty icons
GM Lighting LTR-S SPEC - LED tape light with cut spacing marks and series connector diagram
GM Lighting LTR-S SPEC - Close-up of yellow LED tape strip with circuit pads and cut-ready holes
GM Lighting LTR-S SPEC - Bright white LED tape light illuminating a glass shelf in a bar display
GM LTR-S Specification Series - COB LED tape light with yellow LED strip on silver backing
GM Lighting LTR-S SPEC - LED tape light strip with bright white glow on a mounted surface
GM Lighting LTR-S SPEC - 24V LED tape light roll, 3000K warm white, 496 lm/ft, 16 ft length
GM Lighting LTR-S SPEC - LED tape light strip with dry-rated, Class 2, 95+ CRI, and warranty icons
GM Lighting LTR-S SPEC - LED tape light with cut spacing marks and series connector diagram
GM Lighting LTR-S SPEC - Close-up of yellow LED tape strip with circuit pads and cut-ready holes
GM Lighting LTR-S SPEC - Bright white LED tape light illuminating a glass shelf in a bar display

GM Lighting LTR-S SPEC 16'-4" LED Tape Light, 3000K, 496 Lumens/ft, 24V

Vendor: GM Lighting

SKU: LTR-S-COB-24V-4.5W-30K-16

New
$198.00
$0.00
Shipping calculated at checkout.
Get 20% Off Accessories Purchase GM tape or undercabinet lights and receive 20% off drivers, channels & connectors.
Length: 16ft
Wattage: 4.5W
Light color: 3000K Soft White

Available in stock (100)

Must be ordered in quantities of .

About this item
  • Voltage: Operates at 24V, ensuring efficient power usage for extended installations.
  • Color Temperature: Emits a warm 3000K light, ideal for creating cozy environments.
  • Lumens per Foot: Delivers 496 lumens per foot, providing bright and consistent illumination.
  • Cuttable Increments: Can be cut every 2 inches, allowing for precise customization.
  • COB Technology: Features COB (Chip On Board) for a seamless, dotless light output.
View More Details

Description

GM Lighting LTR-S SPEC LED Tape Light — 3000K & COB Technology

The GM Lighting LTR-S-COB-24V-4.5W-30K-16 is a 16'-4" LED tape light featuring advanced COB (Chip On Board) technology. This tape light operates at 24V and is designed for dry locations, making it ideal for indoor applications.

Key Features

  • Voltage: 24V DC operation for efficient power management.
  • Wattage: Consumes 4.5 watts per foot for energy-efficient lighting.
  • Lumens per Foot: Provides 496 lumens per foot for bright illumination.
  • LEDs per Foot: 146 LEDs per foot for a dense and uniform light output.
  • Maximum Run: Supports up to 16'-4" continuous run on a single power feed.
  • Cuttable: Field cuttable every 2 inches for custom lengths.
  • PCB Width: 10mm width compatible with standard channels.
  • Beam Angle: 180-degree viewing angle for wide light distribution.
  • IP Rating: Dry location rated for indoor use.
  • Certifications: UL listed and Title 24 compliant when paired with specific drivers.

Core Design & Construction

The tape light features a 10mm wide PCB, suitable for use with standard aluminum channels. It includes a 3M adhesive backing for easy installation and is designed for dry indoor environments.

LED Illumination & Performance

With a high CRI of 95+, this tape light ensures excellent color rendering. The COB technology provides a seamless, dotless light output, ideal for applications requiring uniform illumination.

Power, Wiring & Installation

This 24V tape light requires a compatible driver for operation. It is dimmable and can be cut every 2 inches, allowing for tailored installations. Maximum continuous run is 16'-4" to prevent voltage drop.

Where This Tape Works Best

  • Cove lighting
  • Under cabinet lighting
  • Accent lighting
  • Display case lighting

What's Included

  • 16'-4" LED tape light
  • (3) ESTW-60 Sure-Tite connectors
  • 60" lead affixed to tape

Specifications

Dimensions

Length/Depth
192 in
Width/Diameter
0.39 in
Height
0.04 in
Weight
1 lb

Documents

Characteristics & Features

Lamp Color
3000K
Color Rendering
95 CRI
Beam Angle
180
Dimmable
Yes

Electrical Information

Voltage
24V

Item Details

MPN
LTR-S-COB-24V-4.5W-30K-16
Brand
GM Lighting
UPC
849951025133

Warranty & Certifications

Product Warranty
5 Years
Product Rating
Dry Rated, Class 2

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What is the maximum run length for the LTR-S-COB-24V-4.5W-30K-16?
The maximum run length is 16'-4" on a single power feed.

How often can the tape be cut?
The tape can be cut every 2 inches for custom installations.

What voltage is required for this LED tape light?
This LED tape light operates at 24V DC and requires a compatible driver.

Is this tape light dimmable?
Yes, the LTR-S-COB-24V-4.5W-30K-16 is dimmable when used with compatible dimmers.

What is the width of the PCB?
The PCB width is 10mm, making it compatible with standard channels.
