Gray LED tape light strip with multiple amber-cased SMD LED segments
LED tape light strip under cabinets, bright white linear lighting
LED tape light spec: 2700K, 1115 lm/ft, 24V, 100ft, dry rated
24V LED tape light diagram showing cuttable line and installation icons
LED tape light cut marks every 2 in with connector layout diagram
Close-up of 24V LED tape light with rows of square SMD chips on gray strip
LED tape light strips outlining wall shelves with bright white linear glow
Gray LED tape light strip with multiple amber-cased SMD LED segments
LED tape light strip under cabinets, bright white linear lighting
LED tape light spec: 2700K, 1115 lm/ft, 24V, 100ft, dry rated
24V LED tape light diagram showing cuttable line and installation icons
LED tape light cut marks every 2 in with connector layout diagram
Close-up of 24V LED tape light with rows of square SMD chips on gray strip
LED tape light strips outlining wall shelves with bright white linear glow

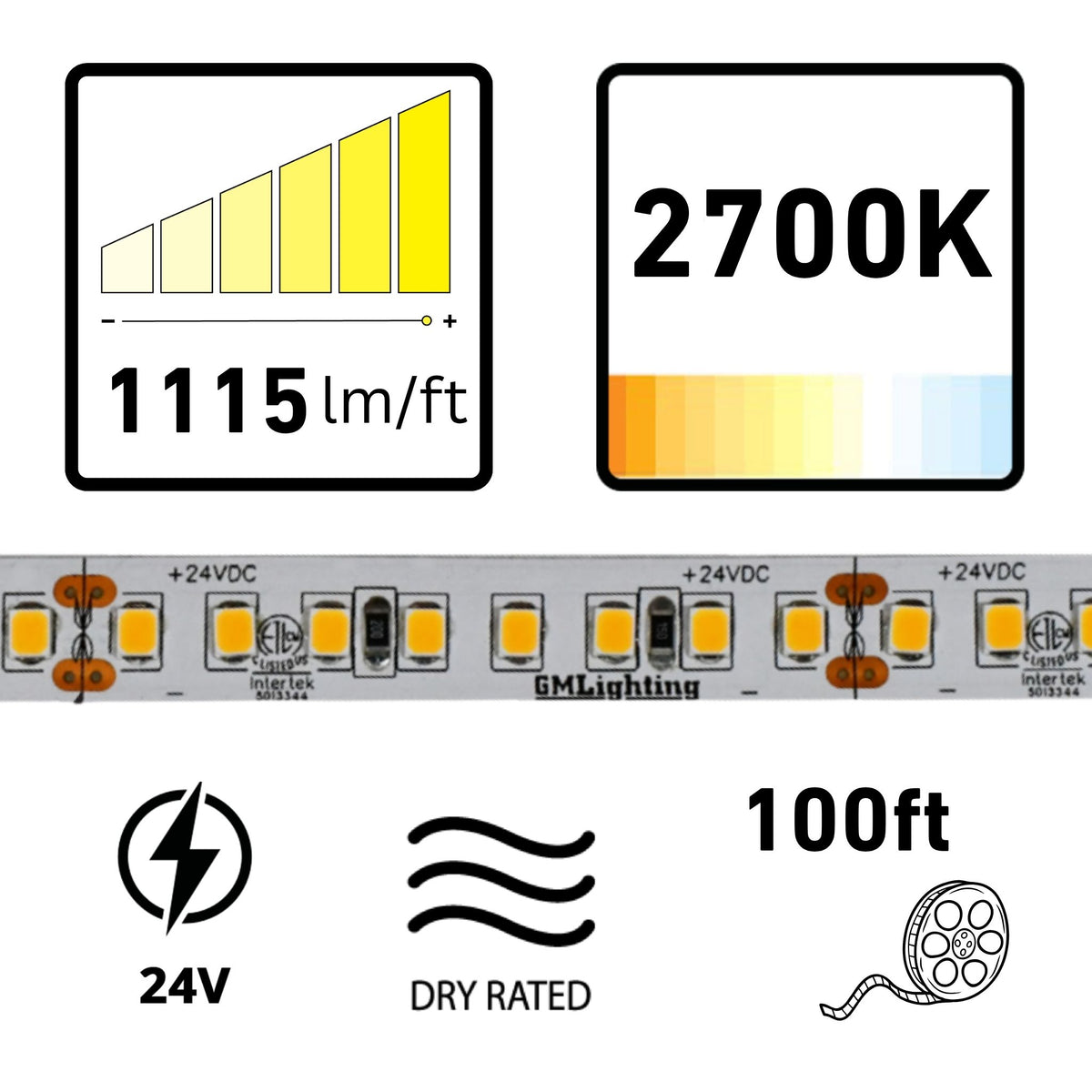

GM Lighting LTR-S SPEC, 98'6 in., LED Tape Light, 2700K, 1115 Lumens/ft, 24V

Vendor: GM Lighting

SKU: LTR-S-HO-24V-8W-27K-100

New
$2,118.60
$0.00
Shipping calculated at checkout.
Get 20% Off Accessories Purchase GM tape or undercabinet lights and receive 20% off drivers, channels & connectors.
Length: 100ft
Light color: 2700K Warm White

In stock

Must be ordered in quantities of .

About this item
  • Color Temperature: Provides a warm 2700K light ideal for ambient settings.
  • Voltage & Power: Operates at 24V with 8W per foot for high output applications.
  • Maximum Run: Supports up to 12 feet on a single lead to prevent voltage drop.
  • Cuttable Increments: Customizable with cut points every 2 inches for precise installations.
  • PCB Width: Features a 10mm PCB width for compatibility with standard channels.
View More Details

Description

GM Lighting LTR-S SPEC LED Tape Light — 2700K & High Output

The GM Lighting LTR-S-HO-24V-8W-27K-100 is a high-output LED tape light designed for architectural-grade applications. This tape light offers a warm 2700K color temperature, delivering over 1115 lumens per foot. It operates at 24V and is suitable for dry locations.

Key Features

  • Voltage: 24V DC operation for consistent performance.
  • Wattage: Consumes 8 watts per foot.
  • Lumens: Delivers 1115 lumens per foot for bright illumination.
  • LEDs per Foot: High-density placement with 8 LEDs per 2 inches.
  • Maximum Run: Capable of running up to 12 feet on a single power lead.
  • Cuttable: Field cuttable every 2 inches for custom lengths.
  • PCB Width: 10mm width for easy channel installation.
  • Beam Angle: 120-degree viewing angle for wide light distribution.
  • IP Rating: Rated IP20 for indoor use.
  • Certifications: ETL listed and Title 24 compliant.

Core Design & Construction

This LED tape features a 10mm PCB width, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for secure mounting and requires installation in an aluminum channel for optimal thermal management.

LED Illumination & Performance

With a high CRI of 90+, this tape light provides excellent color rendering. The light engine is designed for high output, making it suitable for demanding applications.

Power, Wiring & Installation

The tape operates at 24V and requires a compatible driver. It is dimmable and can be cut every 2 inches, allowing for flexible installations. The maximum continuous run is 12 feet to prevent voltage drop.

Where This Tape Works Best

  • Cove lighting
  • Under cabinet lighting
  • Accent lighting
  • Display case lighting
  • Architectural detailing

What's Included

  • 98'6 in. reel of LED tape light
  • 48 in. soldered lead

Specifications

Dimensions

Length/Depth
1200 in
Width/Diameter
0.39 in
Height
0.04 in
Weight
2 lb

Documents

Characteristics & Features

Lamp Color
2700K
Color Rendering
90 CRI
Beam Angle
120
Dimmable
Yes

Electrical Information

Voltage
24V

Item Details

MPN
LTR-S-HO-24V-8W-27K-100
Brand
GM Lighting

Warranty & Certifications

Product Warranty
5 Years
Product Rating
Dry Rated, Class 2

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What is the maximum run length for the LTR-S-HO-24V-8W-27K-100?
The maximum run length is 12 feet on a single power lead to prevent voltage drop.

How often can the tape be cut?
The tape can be cut every 2 inches, allowing for precise customization.

What voltage is required for this LED tape light?
This LED tape light operates at 24V and requires a compatible driver.

Is this tape light dimmable?
Yes, the LTR-S-HO-24V-8W-27K-100 is dimmable with compatible dimmers.

What is the PCB width of this tape light?
The PCB width is 10mm, which is compatible with standard aluminum channels.
