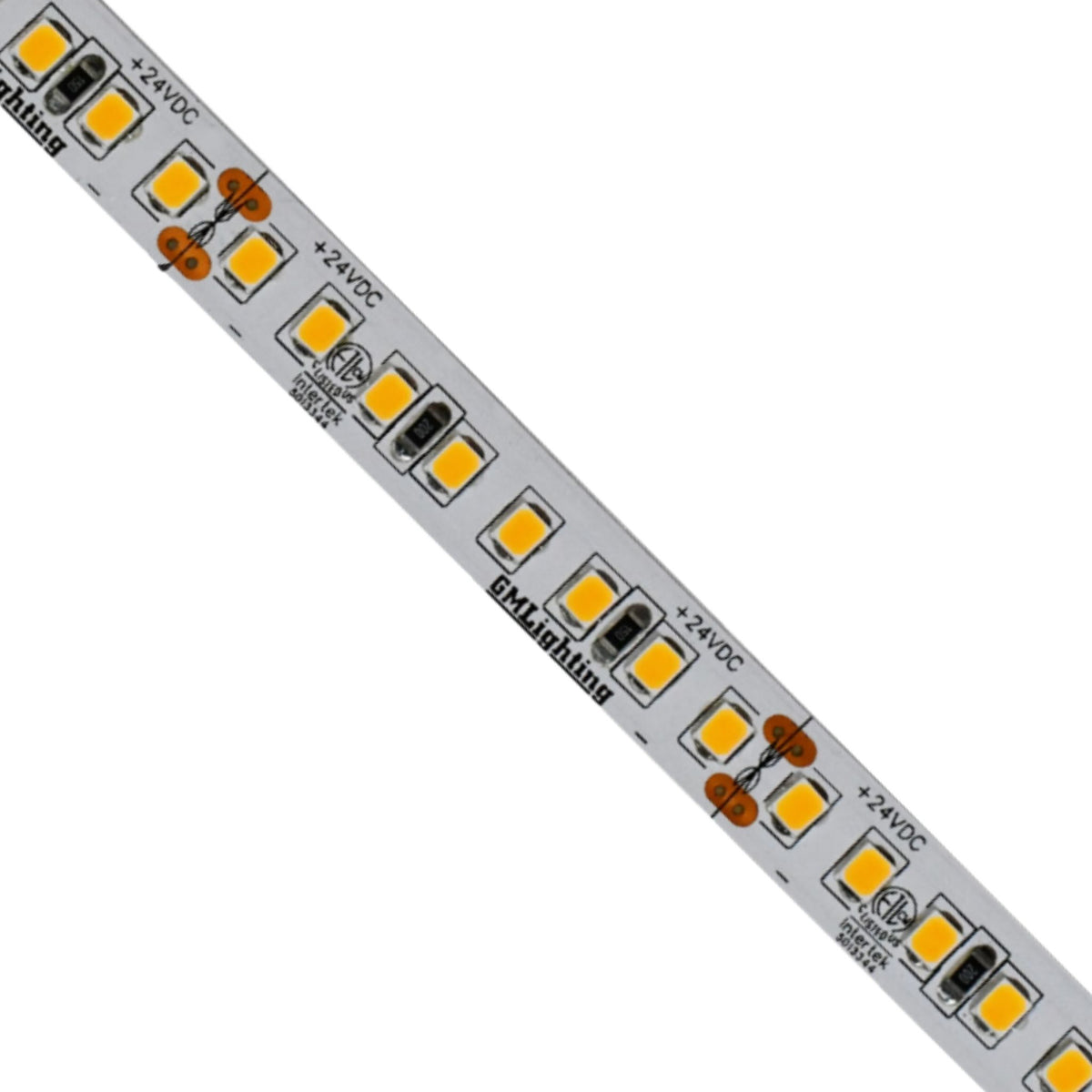

GM Lighting LTR-S-HO — Specification Series High-Output LED Tape Light, 8W/ft, 24V
When a project demands the best optics in the industry, the GM Lighting LTR-S-HO Specification Series is the answer. Delivering over 1,000 lumens per foot at 8.0W/ft, 90+ CRI, and a 120° viewing angle, it’s built for architectural-grade cove, soffit, and task lighting where performance and light quality are non-negotiable. Available in four CCTs from 2700K to 4000K, in 98’-6” reels or custom factory-cut lengths.
Important: The LTR-S-HO must be installed in a compatible aluminum mounting channel rated for 140°F minimum for proper thermal management. Installation without an approved channel will void the warranty.
Output by CCT — 8.0W/ft, 24VDC
- 2700K (LTR-S-HO-24V-8W-27K-FT/100): 1,115 lm/ft
- 3000K (LTR-S-HO-24V-8W-30K-FT/100): 1,143 lm/ft
- 3500K (LTR-S-HO-24V-8W-35K-FT/100): 1,148 lm/ft
- 4000K (LTR-S-HO-24V-8W-40K-FT/100): 1,201 lm/ft
Kelvin tolerance ±100K. Factory-cut lengths include a 48” soldered lead.
Best Applications
- Architectural cove, soffit, and valance lighting requiring 1,000+ lm/ft
- High-output under-cabinet and millwork task lighting
- Retail display, museum, and gallery lighting
- Commercial hospitality and high-end residential linear lighting
- LUXcontrol WiFi smart lighting and scene-control installations
- Title 24 compliant projects (with specified drivers — consult factory)
Key Features
- 1,115–1,201 lm/ft — Specification Series Performance: 8.0W/ft at 24VDC with a 120° beam angle. Architectural-grade output engineered for demanding linear applications.
- 10mm PCB, Cuttable Every 2” (8 LEDs): Precise 2” cut increments for exact-fit installations. 3M adhesive back for tool-free mounting. 12ft maximum run per power feed.
- 90+ CRI, 2700K–4000K: Four CCT options delivering accurate color rendering for residential, retail, and commercial environments.
- LUXcontrol WiFi Compatible: Integrates with the LUXcontrol Smart 2.4 GHz WiFi system (SHWC/SHWD) for wireless dimming and scene control. Also compatible with universal 1–5 channel RF controllers.
- ETL Listed, Title 24 Compliant, Class 2, IP20: ETL certified. Title 24 compliant when paired with specified GM Lighting drivers (consult factory).
- Aluminum Channel Required — 140°F Rated Min.: Must be installed in a rated aluminum channel for thermal management and warranty validity. Compatible with LED-CHL-XD (Extra Deep) and LED-CHL-XD-F (Extra Deep Flanged) series channels.
- 5-Year Warranty with GM Power Supply: Full 5-year limited warranty when the LTR-S-HO is paired with a GM Lighting driver.
Power & Driver Sizing
Requires a 24VDC LED driver (sold separately). Formula: run length (ft) × 8.0W/ft ÷ 0.80 = minimum driver wattage. For a full 12ft run: 12 × 8.0 ÷ 0.80 = 120W minimum.
Recommended GM Lighting Drivers
- LD-XD-UNV — LineDrive Electronic Multi-Dimmable, 12/24VDC (20W–300W)
- LD-E-UNV — LineDrive Electronic Non-Dimmable, 12/24VDC (30W–300W)
- LD-MD-UNV — LineDrive Magnetic Dimmable, 12/24VDC (30W–300W)
- LD-EDM — LineDrive Electronic Dimmable MINI, 12/24VDC (60W)
- SWD-60W-24VDC-DIM — SwitchLD All-in-One Dimmer & Driver, 60W, 24VDC
- SWD-100W-24VDC-DIM — SwitchLD All-in-One Dimmer & Driver, 100W, 24VDC
- LTP — Cord & Plug Power Supply, 12/24VDC (25W–90W)
- PSD — Electronic Dimmable Power Supply, 12/24VDC (15W–90W)
Compatible Controllers
- SHWC — LUXcontrol Smart WiFi Controller, 12V/24V
- SHWD — LUXcontrol Smart WiFi Dimmer, 12V/24V
- HC-RF-UNV-5CH — Universal 1–5 Channel RF Remote Control
- CM-RF-UNV-5CH — Universal 1–5 Channel RF Control Module
- RPT-UNV-5CH — Universal 1–5 Channel Repeater Amplifier
Compatible Mounting Channels
- Extra Deep (LED-CHL-XD Series) — 0.98” W × 0.86” H
- Extra Deep Flanged (LED-CHL-XD-F Series) — 0.98” W × 0.80” H, 1.5” flange
What’s Included
- 1× LTR-S-HO LED Tape Light — 98’-6” reel or custom factory-cut length
- 48” soldered lead (factory-cut lengths only)
Required — Sold Separately
- 24VDC GM Lighting LED Driver (required for 5-year warranty)
- Aluminum Mounting Channel rated for 140°F minimum (required for thermal management)
- Compatible Dimmer or Controller (optional)
Frequently Asked Questions
Why does the LTR-S-HO require an aluminum mounting channel?
Why does the LTR-S-HO require an aluminum mounting channel?
At 8.0W/ft, the LTR-S-HO generates significant heat that must be properly dissipated to maintain LED performance and rated life. GM Lighting requires installation in a compatible aluminum mounting channel rated for 140°F minimum. Installing without an approved channel will void the warranty and can shorten the tape’s rated lifespan. Compatible channels include the LED-CHL-XD (Extra Deep, 4ft or 6ft) and LED-CHL-XD-F (Extra Deep Flanged, 4ft or 6ft), both of which include a frosted snap-on lens, mounting clips, and screws.
What is the maximum run length and how do I cut the LTR-S-HO?
What is the maximum run length and how do I cut the LTR-S-HO?
The maximum continuous run is 12ft per power lead. The tape is cuttable every 2” (every 8 LEDs) at marked cut points. For installations requiring longer total runs, use multiple power feeds with separate driver outputs — one per 12ft zone. Custom factory-cut lengths are available (consult factory). Each factory-cut length ships with a 48” soldered lead.
What power supply do I need for the LTR-S-HO?
What power supply do I need for the LTR-S-HO?
The LTR-S-HO requires a 24VDC LED driver. At 8.0W/ft with a 12ft max run: 12 × 8.0 ÷ 0.80 = 120W minimum. GM Lighting recommends the LD-XD-UNV (LineDrive Electronic Multi-Dimmable, up to 300W) or the SWD-100W-24VDC-DIM (SwitchLD All-in-One Dimmer and Driver, 100W) for full-run installations. A GM Lighting power supply is required to qualify for the 5-year warranty.
Is the LTR-S-HO Title 24 compliant?
Is the LTR-S-HO Title 24 compliant?
Yes — the LTR-S-HO is Title 24 compliant when used with specific GM Lighting drivers. Title 24 compliance requires pairing with a qualified driver; consult the GM Lighting factory or your sales representative to confirm the correct driver for your project’s Title 24 requirements before specifying.
Is the LTR-S-HO compatible with smart dimming and WiFi controls?
Is the LTR-S-HO compatible with smart dimming and WiFi controls?
Yes — the LTR-S-HO is compatible with the LUXcontrol Smart 2.4 GHz WiFi system, including the SHWC (WiFi Controller) and SHWD (WiFi Dimmer) for wireless scene control and dimming. It is also compatible with the HC-RF-UNV-5CH (Universal RF Remote), CM-RF-UNV-5CH (RF Control Module), and RPT-UNV-5CH (Repeater Amplifier) for 1–5 channel RF control installations.
