NeoVision Mini, 16'4 in. Neon Tape Light, IP65, Amber, 14 Lumens/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: Amber light at 590nm peak for vibrant illumination.
- Voltage & Power: Operates at 24VDC with 2W per foot for efficient energy use.
- Max Run Length: Maximum continuous run of 16'4 in. to prevent voltage drop.
- Cuttable Increments: Field cuttable every 1 in. for custom lengths.

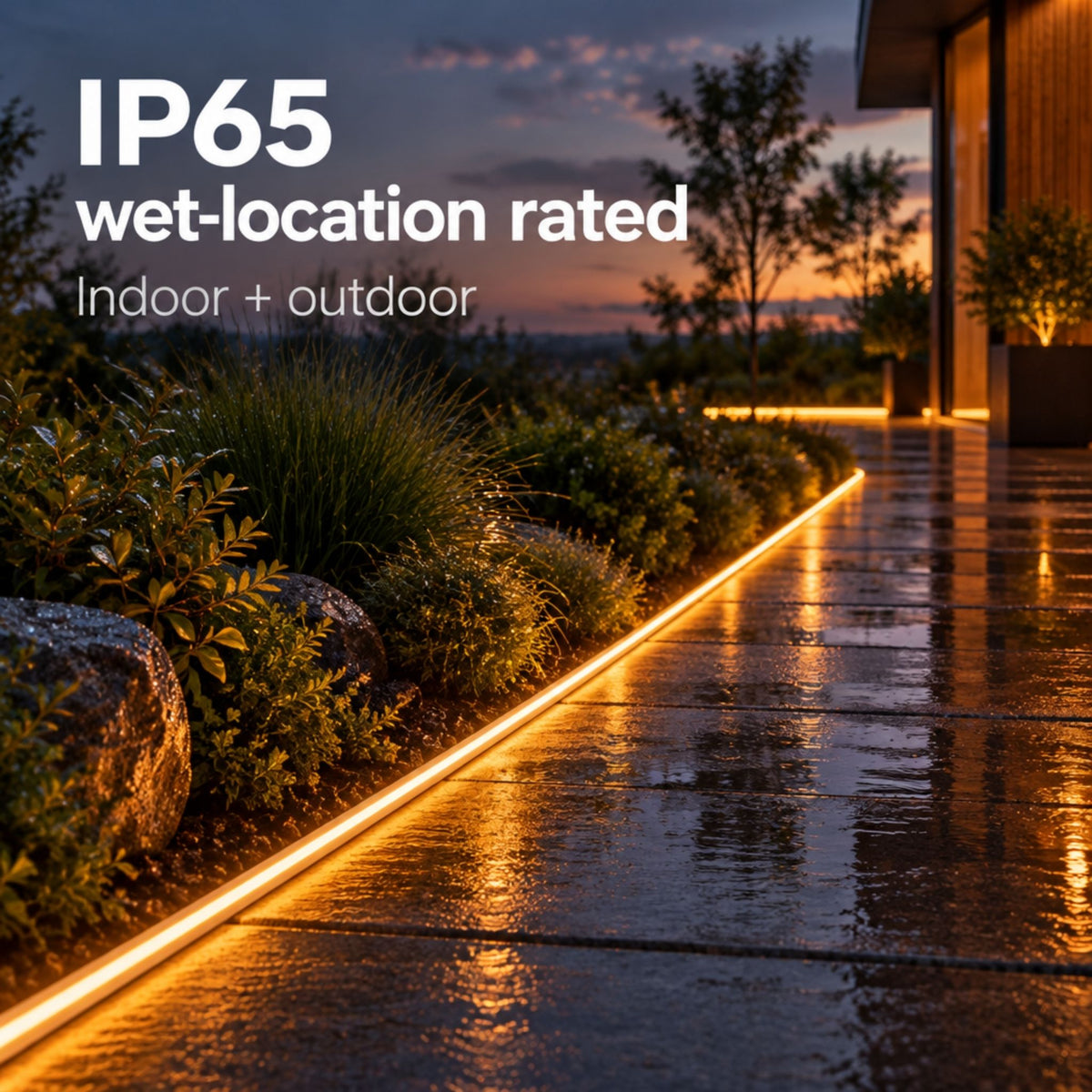

- IP Rating: IP65 rated for wet locations, suitable for outdoor use.
Description
Description

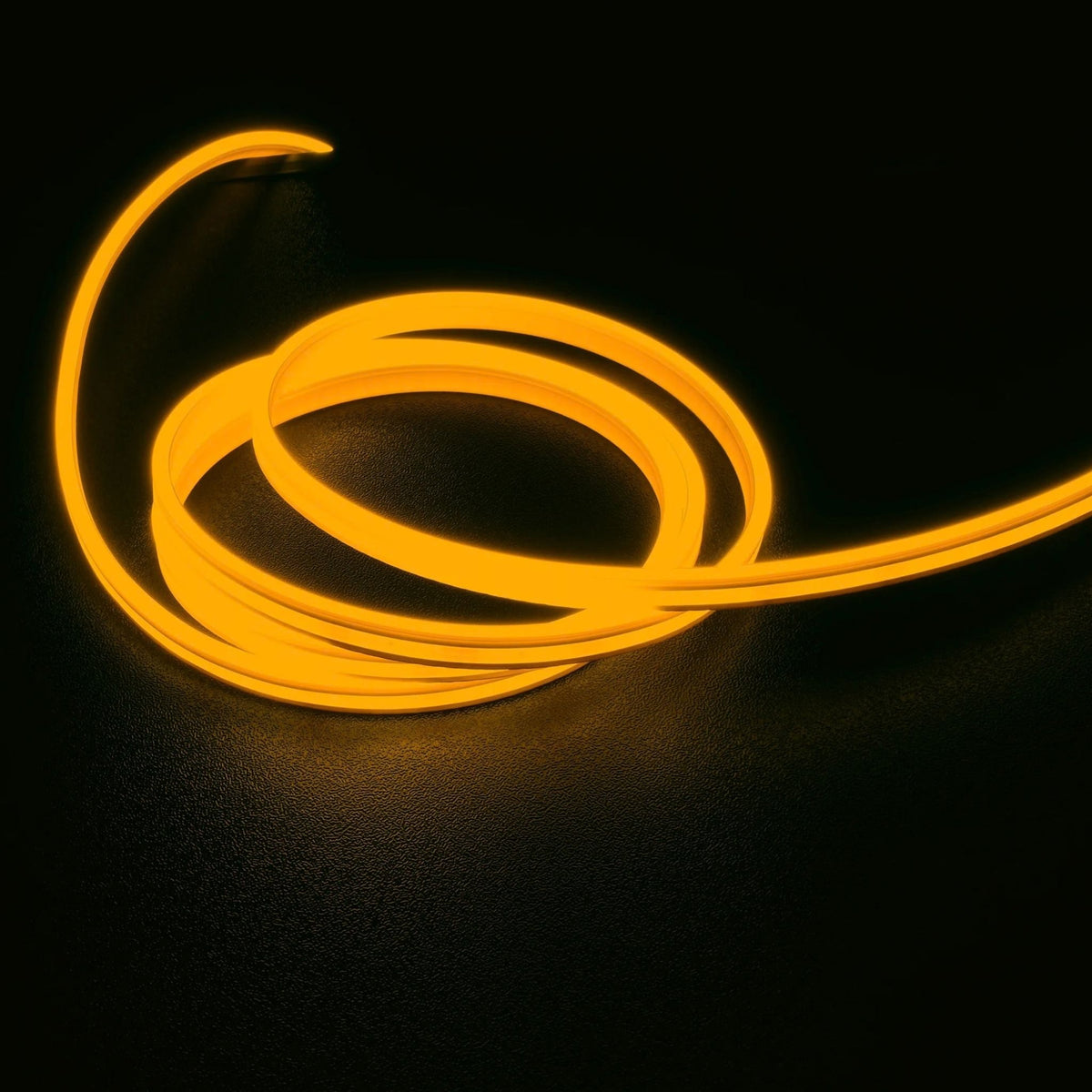

NeoVision Mini Neon Tape Light — Amber & Flexible Design

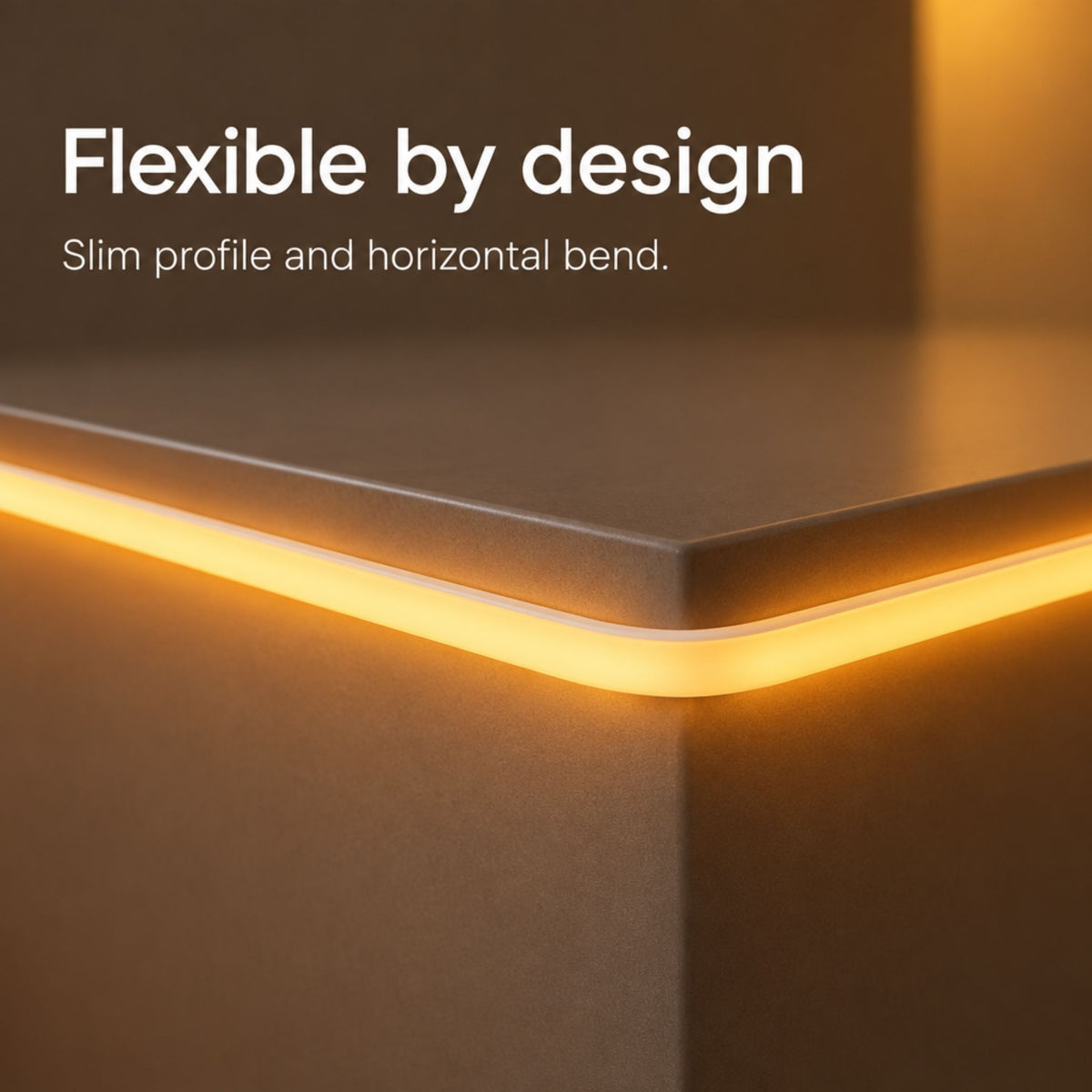

The NeoVision Mini NVM24S-2W-AM-16 is a 16'4 in. Neon Tape Light featuring a vibrant Amber color. Designed for 24V operation, this tape light is IP65 rated for wet locations, making it ideal for both indoor and outdoor applications. Its narrow profile and side-flex capability allow for versatile installation in intricate designs.
Key Features
- Voltage: 24VDC for consistent power delivery.
- Wattage: Consumes 2W per foot for energy efficiency.
- Lumens: Provides 14 lumens per foot for subtle illumination.
- LEDs per Foot: High-density LED arrangement for even light distribution.
- Max Run: Supports a maximum run length of 16'4 in. to prevent voltage drop.
- Cut Increments: Customizable with 1 in. cut increments for precise fitting.
- PCB Width: 4mm width for compatibility with narrow channels.
- Beam Angle: 120-degree viewing angle for wide light spread.
- IP Rating: IP65 for protection against water and dust.
- Certifications: cULus listed for safety and quality assurance.
Core Design & Construction

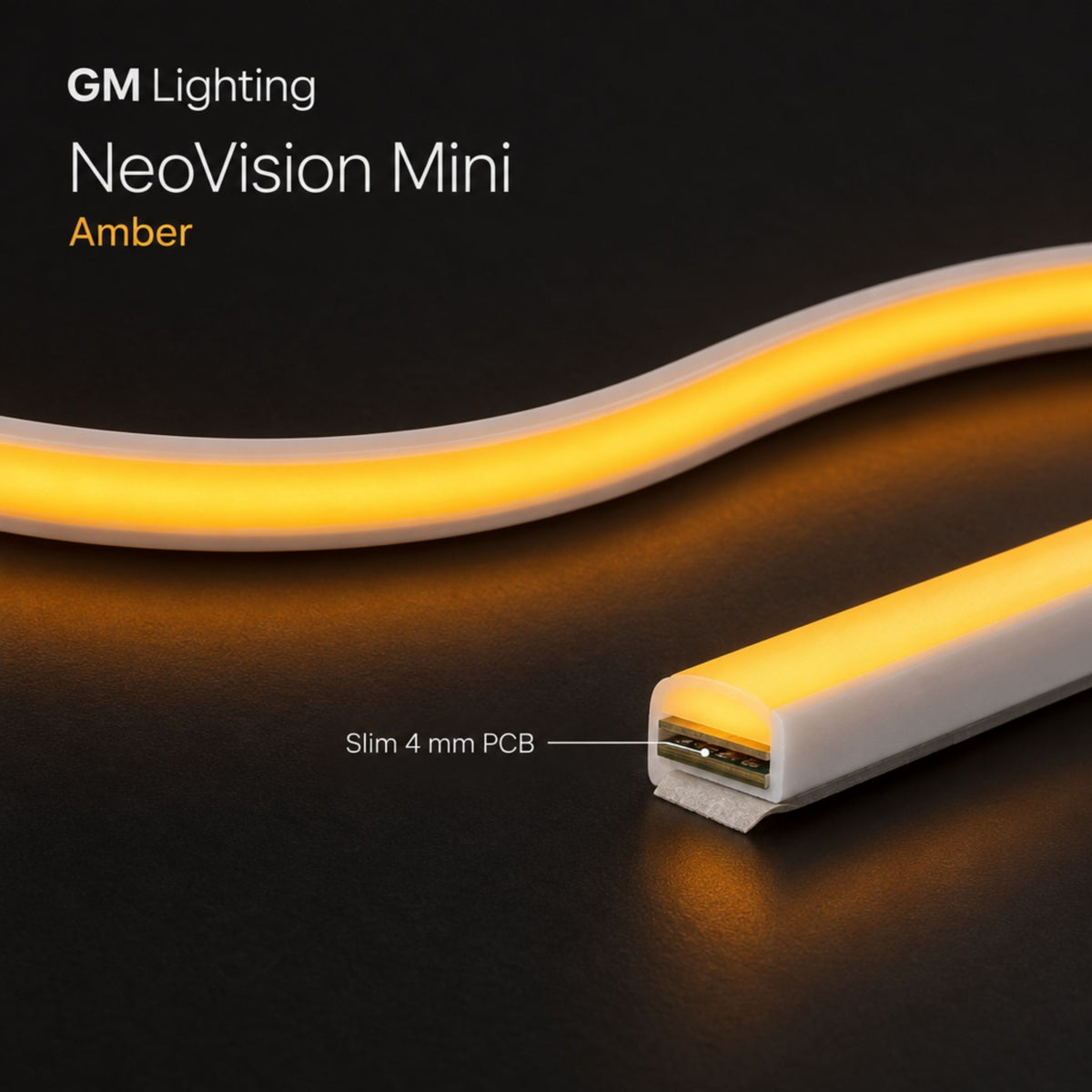

The NeoVision Mini features a 4mm wide PCB, ideal for tight spaces and narrow channels. Encased in UV-resistant silicone, it offers durability and protection against environmental elements. The tape includes a 3M VHB adhesive backing for secure installation.
LED Illumination & Performance
Delivering 14 lumens per foot with a CRI of 90+, the NeoVision Mini provides rich, saturated amber light. The light engine is designed for consistent color output and minimal light loss over time.
Power, Wiring & Installation
This tape light requires a 24V power supply and is dimmable for adjustable brightness. It can be cut every 1 in. for custom lengths, with a maximum continuous run of 16'4 in. to avoid voltage drop.

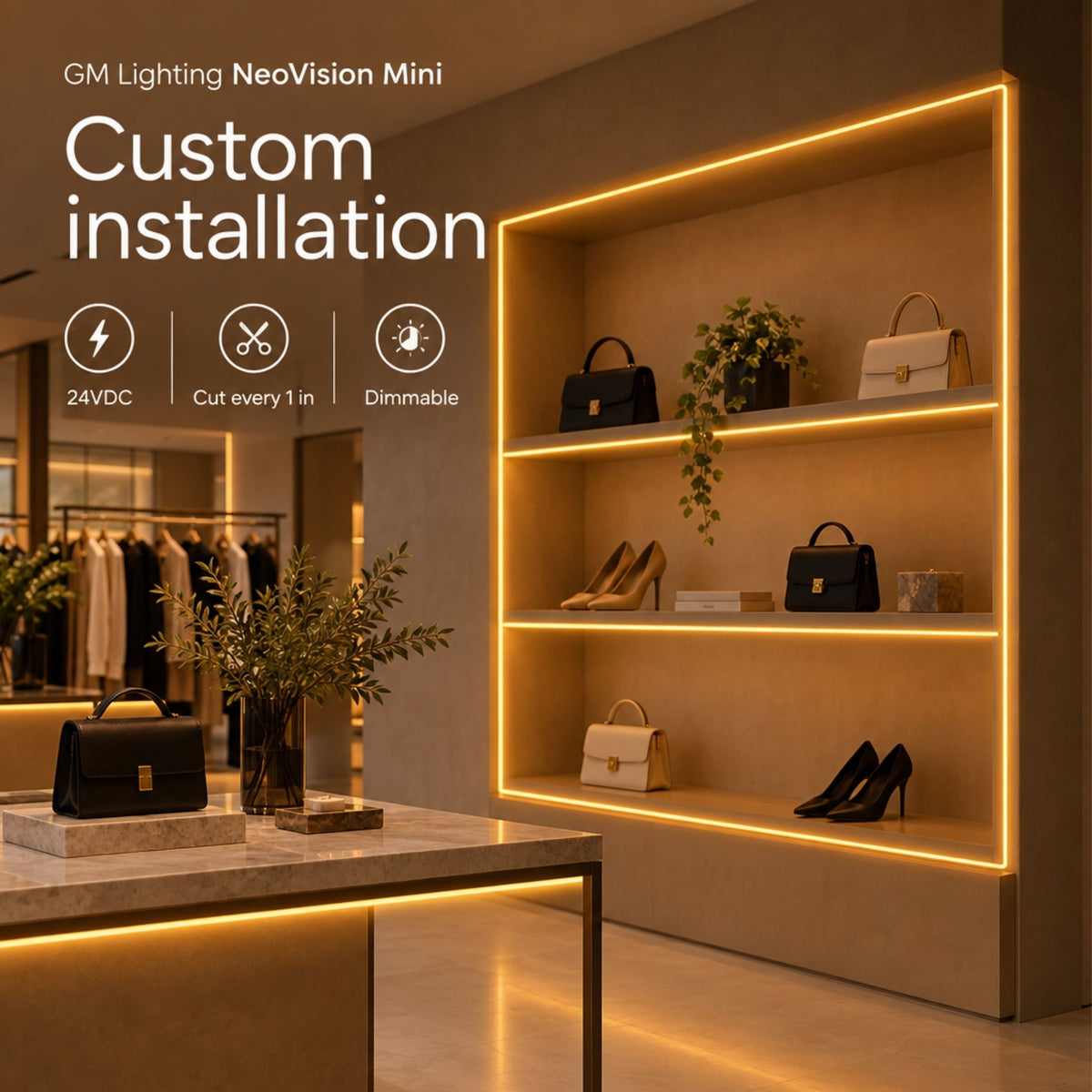

Where This Tape Works Best
- Architectural accent lighting
- Outdoor pathways and landscapes
- Signage and display lighting
- Custom installations in wet locations
What's Included
- 16'4 in. reel of NeoVision Mini Neon Tape Light
- 4' power feed at each end
- 2 end caps for sealing cut sections
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
