GM Lighting NeoVision Mini — 24VDC Curvable Side-Flex Neon LED Tape
The NeoVision Mini is a narrow, 4mm wide slim profile LED neon light designed for flexible, dynamic lighting applications. Its curvable Side-Flex construction allows horizontal bending, making it ideal for intricate signage, channel letters, and architectural designs where standard rigid strips can't follow the line. The well-diffused output delivers ultra-rich, saturated color with even, soft, eye-friendly illumination, and the tape is fully encased in UV-resistant silicone for long-term outdoor durability.
Available in 2700K, 3000K, and 4000K white, plus Amber, Blue, Green, Orange, and Red color options — all at 2W/ft, 24VDC. Rated IP65 for both indoor and outdoor, wet-location use, with a 120° viewing angle and a maximum run of 16'-4" per lead (custom cuts available — consult factory).
Key Features
- Curvable Side-Flex Design: 4mm W x 8mm H narrow profile bends horizontally for intricate layouts, letters, and curved architectural lines.
- Simple Field Assembly: Designed for quick, tool-friendly installation on site.
- UV-Resistant Silicone Encasement: Protects the tape from sun and weather exposure for reliable outdoor performance.
- Dimmable: Smooth dimming compatible with standard 24VDC dimming drivers.
- White & Color LED Options: Choose from three white CCTs (2700K, 3000K, 4000K) or five vivid colors (Amber, Blue, Green, Orange, Red).
- 120° Viewing Angle: Wide, even light spread for signage and accent applications.
- IP65 Rated, cULus Listed: Certified for outdoor and wet-location installations.
- Wide Operating Range: Performs from -4°F to +104°F (-20°C to +40°C).
- 5-Year Warranty: Backed by GM Lighting's standard limited warranty.
Light Output & Color Performance
White CCTs deliver 90+ CRI output: 2700K at 70 lm/ft, 3000K at 68 lm/ft, and 4000K at 59 lm/ft. Color options provide vivid, saturated tones for signage and accent work: Green (519nm) at 59 lm/ft, Orange (610nm) at 15 lm/ft, Amber (590nm) at 14 lm/ft, Blue (470nm) at 13 lm/ft, and Red (630nm) at 7 lm/ft.
Where This Neon Tape Works Best
- Channel letters and dimensional signage
- Curved architectural accent lighting

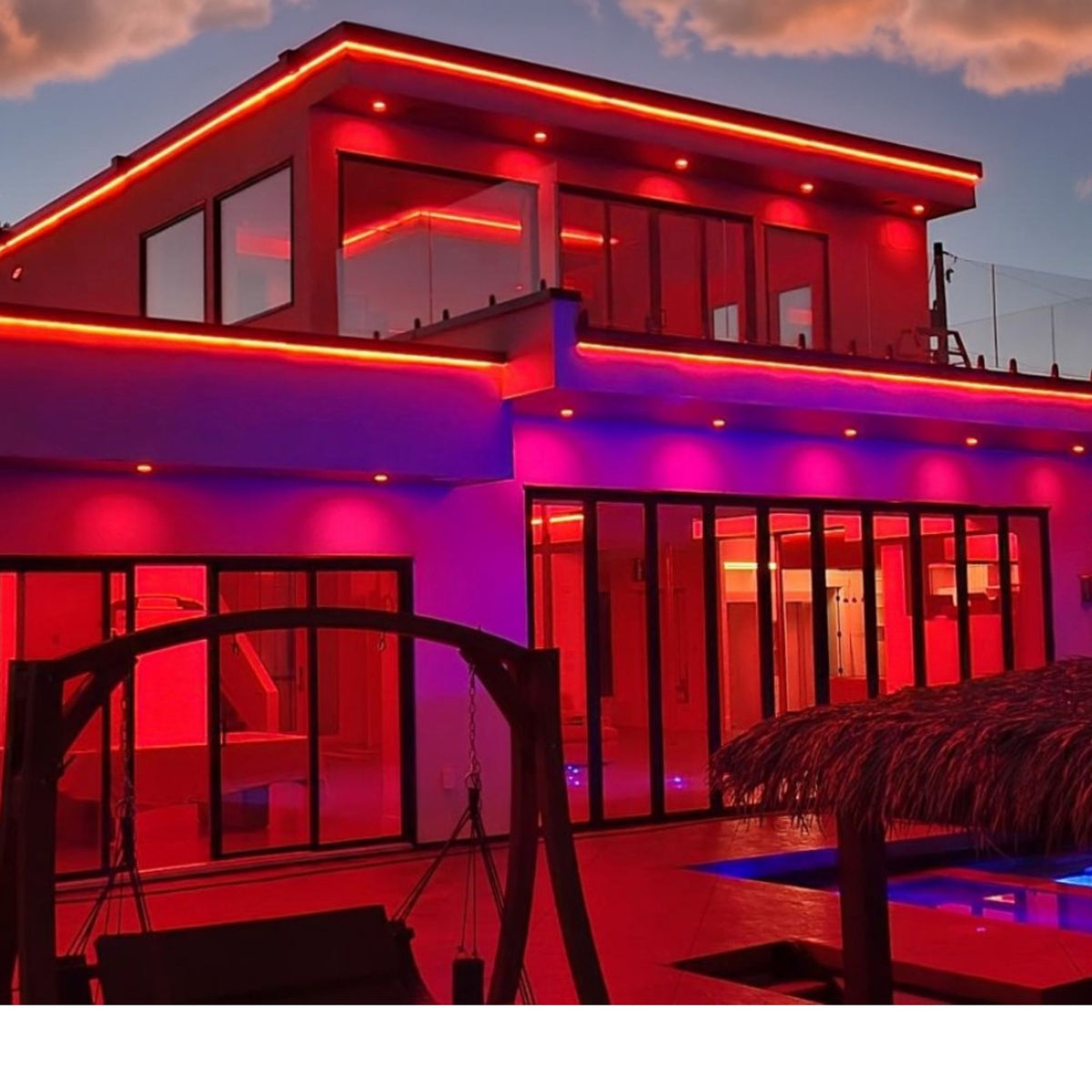

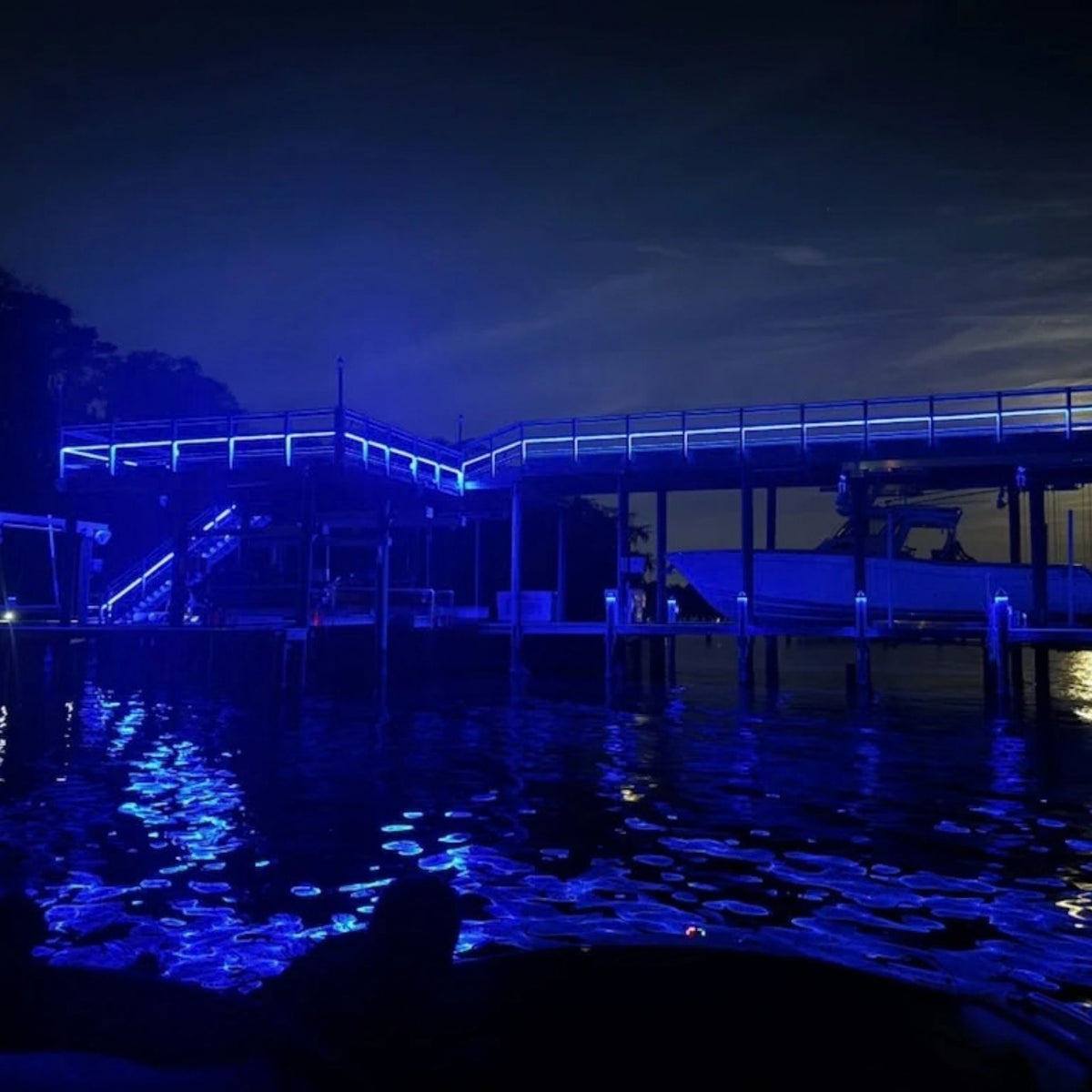

- Outdoor and wet-location installations
- Retail and hospitality color accenting
- Indoor decorative and display lighting
Ordering Information
All variants run at 2W/ft max with a maximum run of 16'-4":

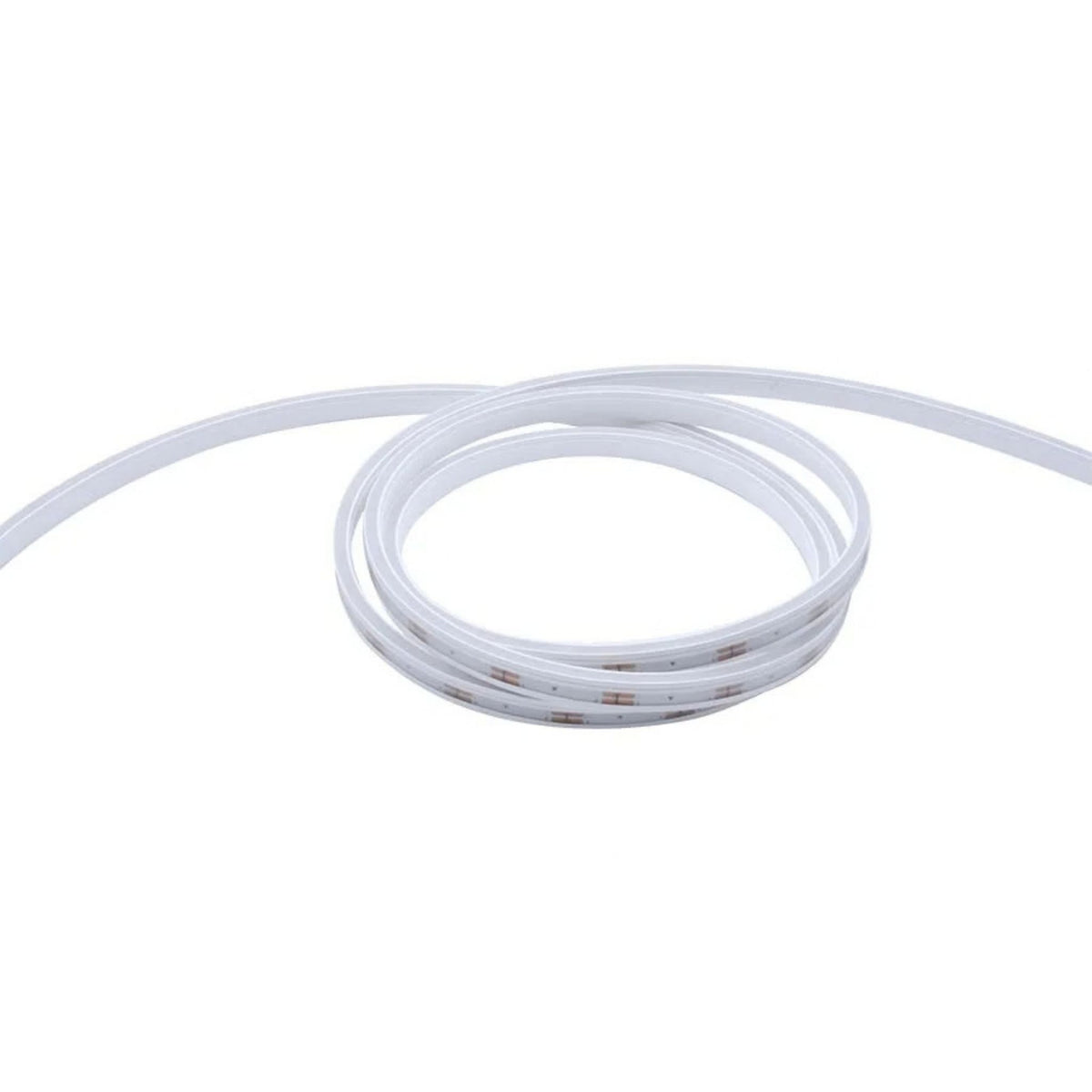

- NVM24S-2W-27K-16 — 2700K, 70 lm/ft
- NVM24S-2W-30K-16 — 3000K, 68 lm/ft
- NVM24S-2W-40K-16 — 4000K, 59 lm/ft
- NVM24S-2W-AM-16 — Amber (590nm), 14 lm/ft

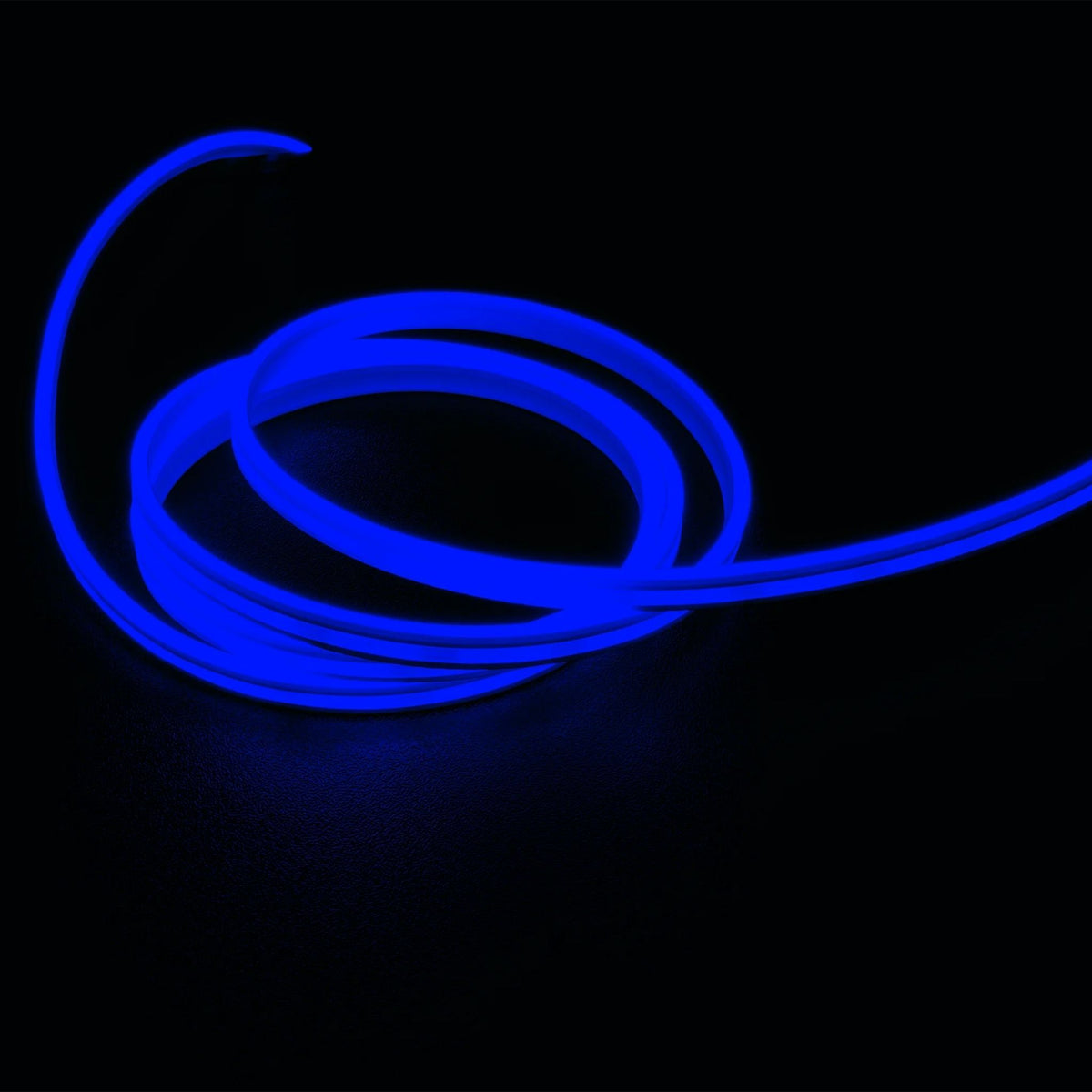

- NVM24S-2W-BL-16 — Blue (470nm), 13 lm/ft
- NVM24S-2W-GR-16 — Green (519nm), 59 lm/ft
- NVM24S-2W-OR-16 — Orange (610nm), 15 lm/ft

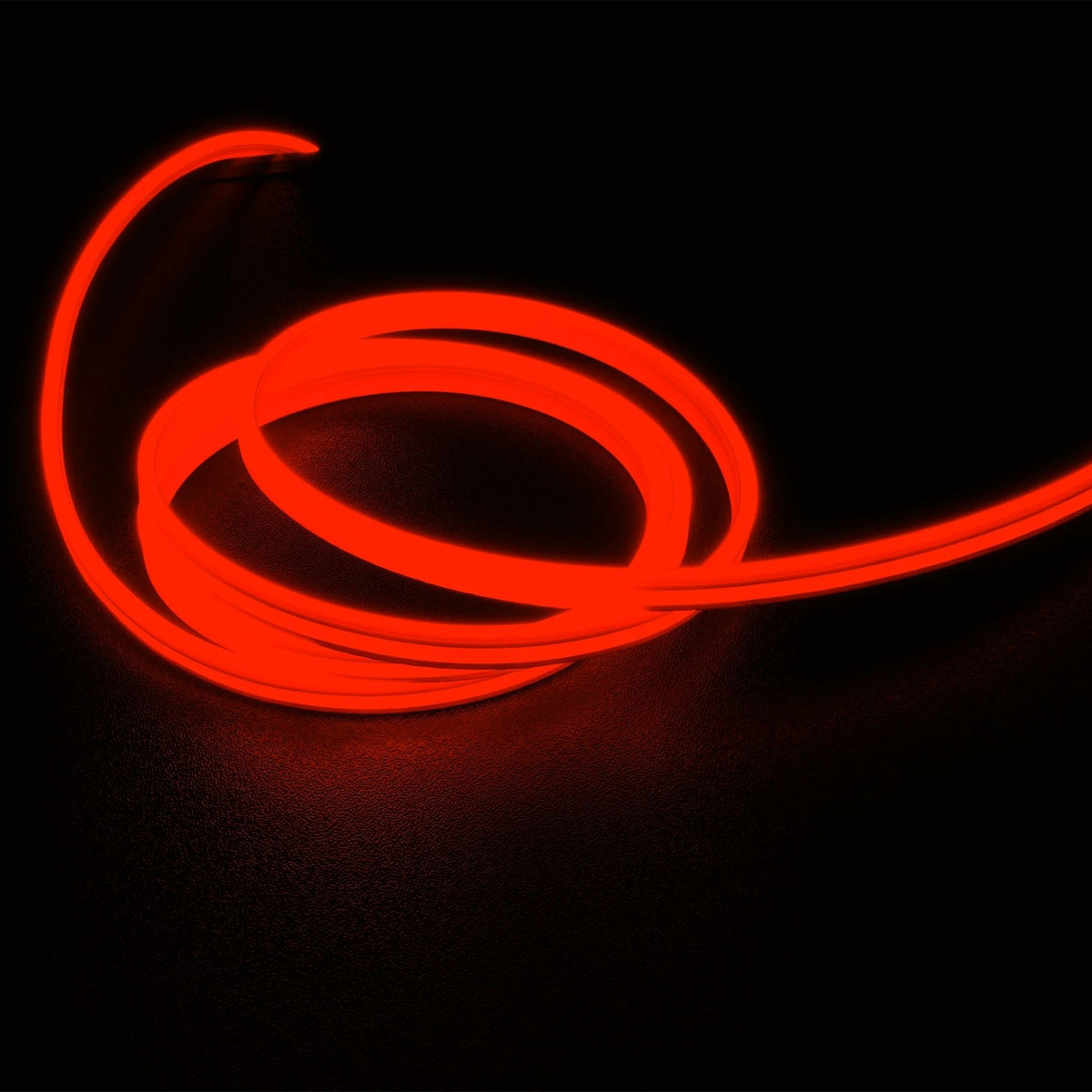

- NVM24S-2W-RD-16 — Red (630nm), 7 lm/ft
Compatible Accessories
- NVM24S-EC — End cap, molded silicone (sealant not included)
- NVM24S-MC-A — Back mounting clips, aluminum (20 clips, 20 SS screws)
- NVM24S-CHL-A4 — Rigid channel, aluminum, 4ft
- NVM24S-FLEX-CHL — Flexible channel, stainless steel, 1m, 105 holes & screws
- TAPE-DS-VHB-4MMW — 4mm wide x 6m VHB tape
- TOOL-PHO-HEX — PH0 Phillips head, 1/4" hex drive bit
