NeoVision Mini, 16 ft 4 in., Neon Tape Light, IP65, Orange, 15 Lumens/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: Vibrant orange illumination for dynamic lighting applications.
- Voltage: Operates at 24VDC, ensuring efficient energy use.
- Max Run: Supports up to 16 ft 4 in. continuous run for extensive coverage.
- Cut Increments: Customizable with 1 in. cut increments for precise installations.
- IP Rating: IP65 rated for wet locations, suitable for outdoor use.
Description
Description
NeoVision Mini Neon Tape Light — Orange & Flexible Design
The NeoVision Mini NVM24S-2W-OR-16 is a 16 ft 4 in. neon tape light offering vibrant orange illumination. This 24VDC tape light is IP65 rated, making it ideal for wet locations and outdoor applications. Its narrow profile and side-flex capability allow for versatile and intricate installations.

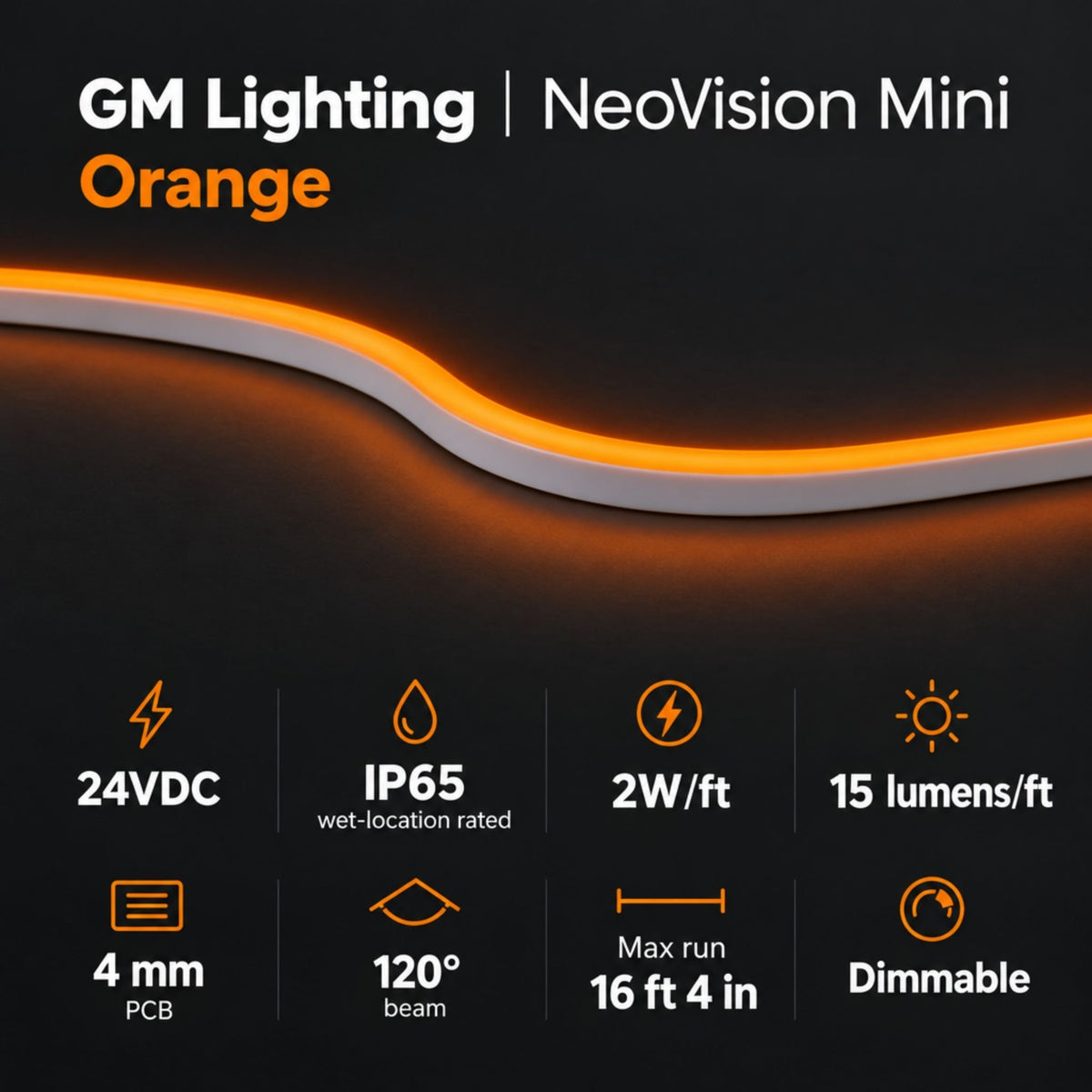

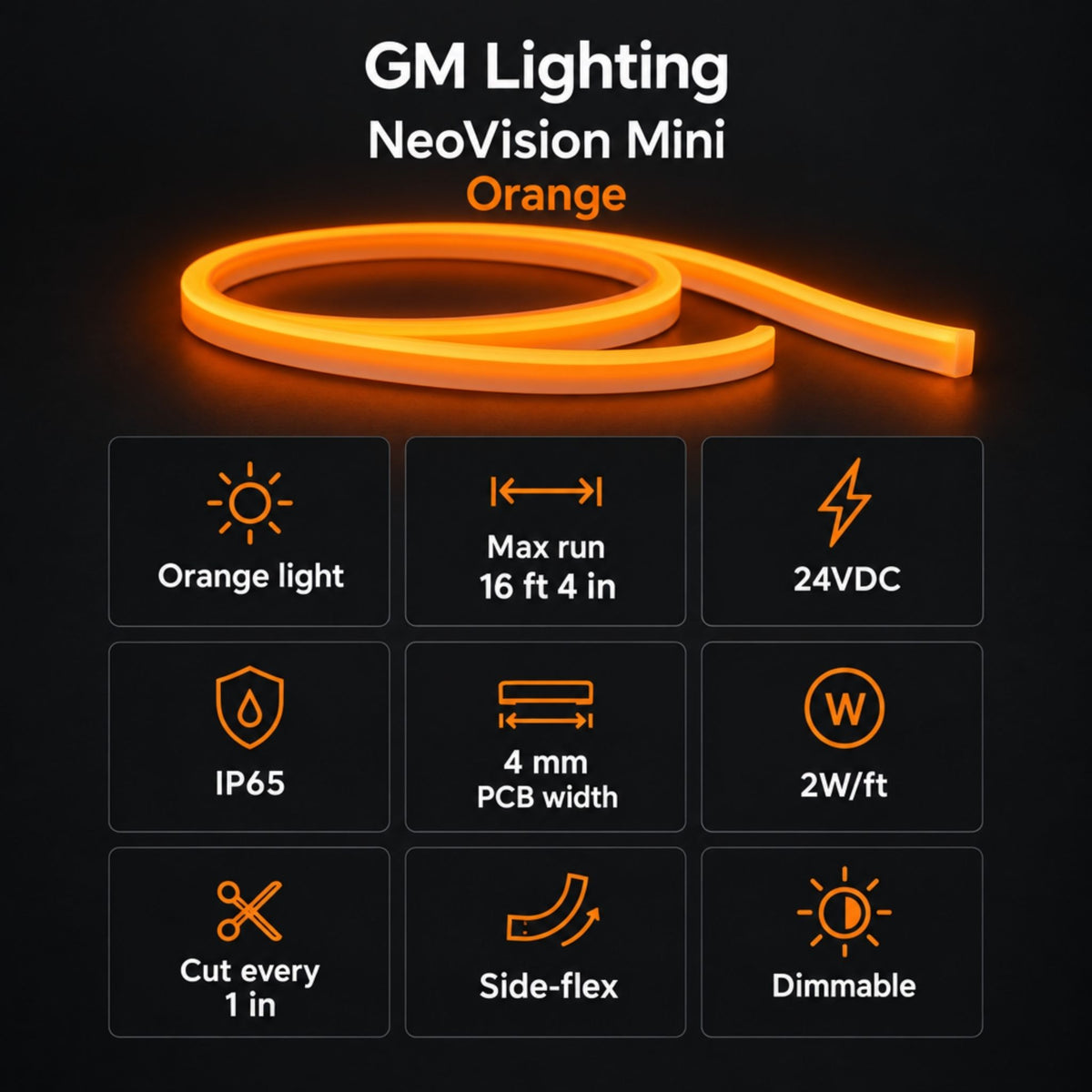

Key Features
- Voltage: Operates at 24VDC for consistent performance.
- Wattage: Consumes 2W per foot for energy efficiency.
- Lumens: Provides 15 lumens per foot for vibrant lighting.
- LEDs per Foot: Designed with optimal LED placement for even light distribution.
- Max Run: Supports a maximum run of 16 ft 4 in. for extensive coverage.
- Cut Increments: Field cuttable every 1 in. for custom lengths.
- PCB Width: 4mm width for compatibility with narrow channels.
- Beam Angle: 120-degree viewing angle for wide light dispersion.

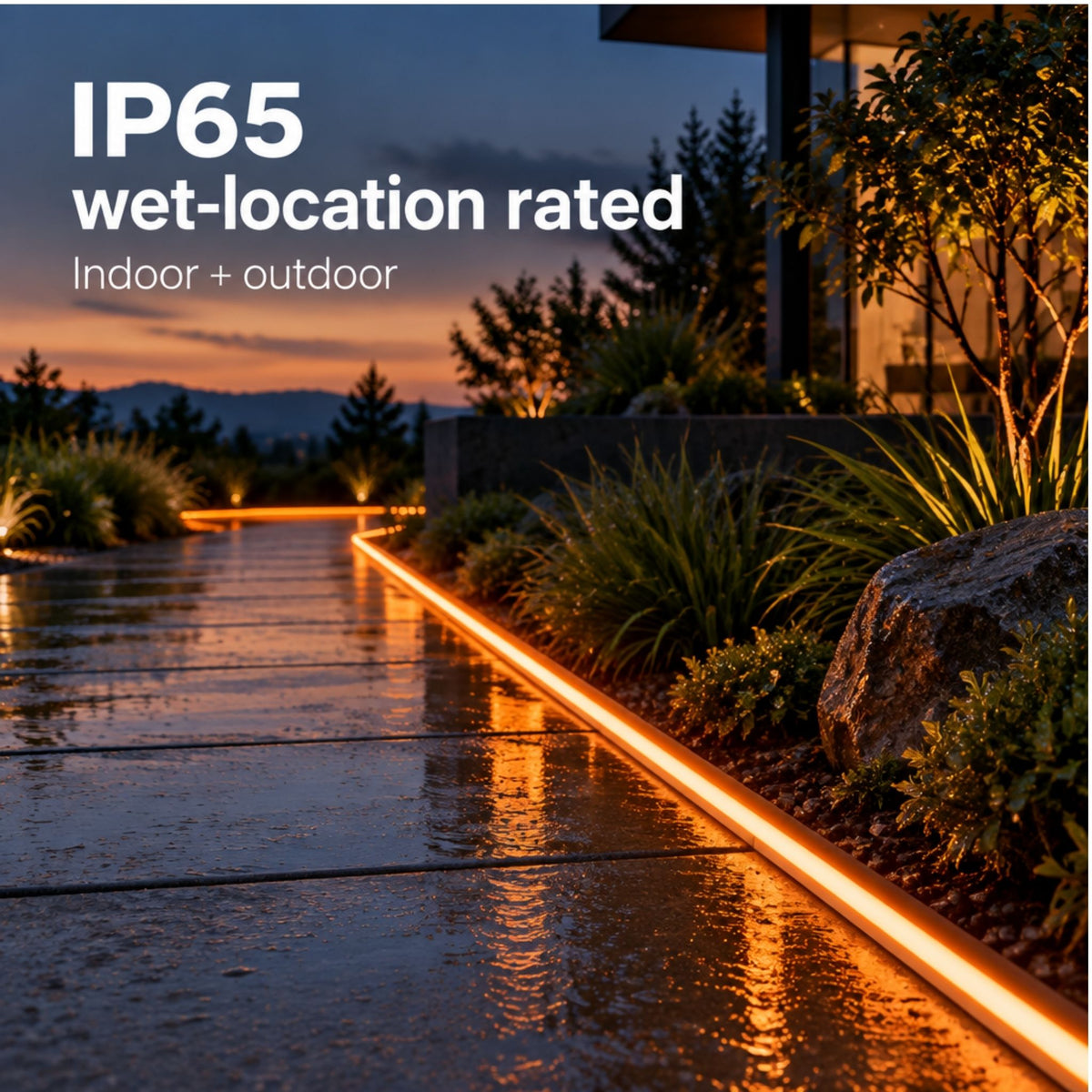

- IP Rating: IP65 rated for wet locations, suitable for outdoor use.
- Certifications: cULus listed for safety and reliability.
Core Design & Construction

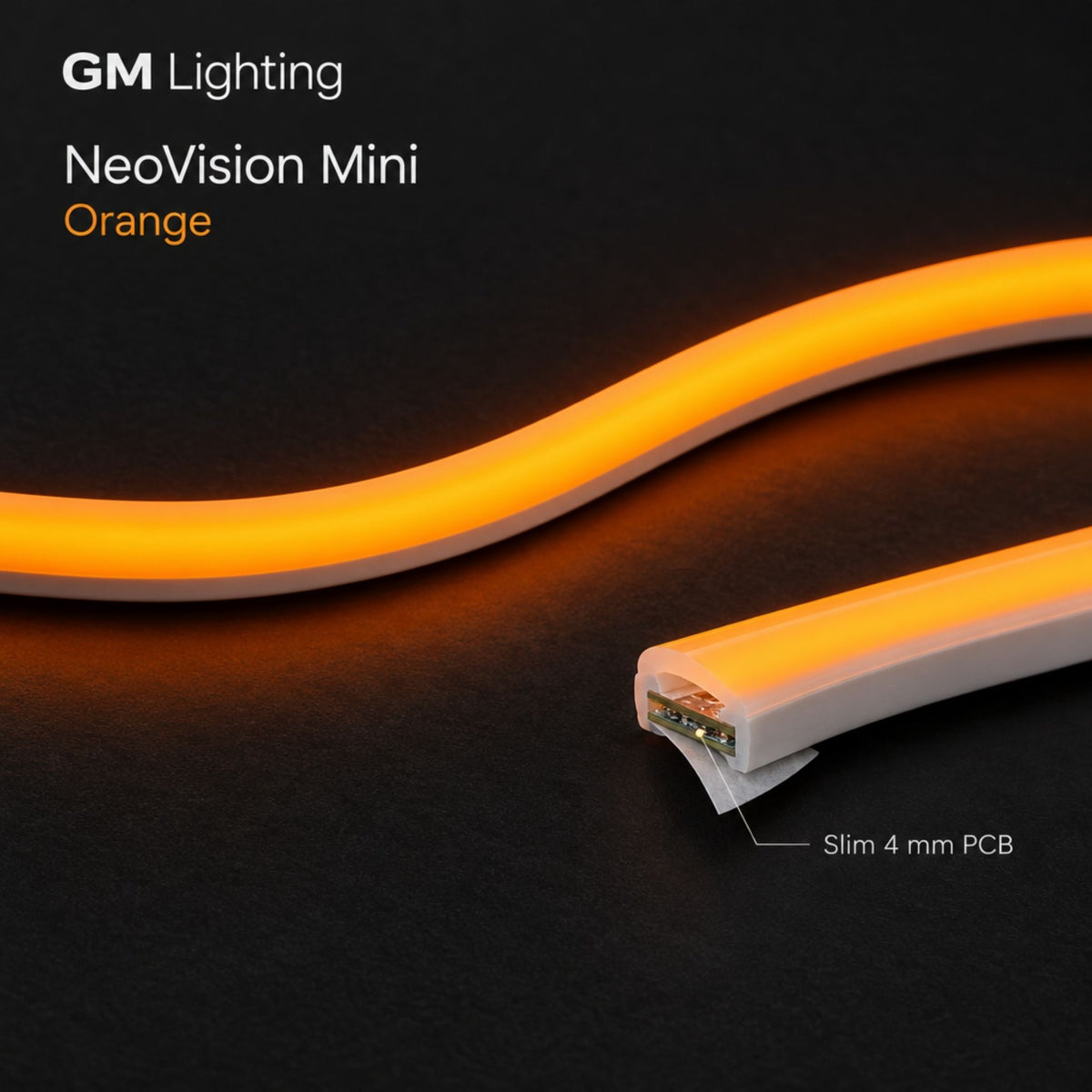

The NeoVision Mini features a 4mm wide PCB encased in UV-resistant silicone, ensuring durability and flexibility. It includes a 3M VHB adhesive backing for secure mounting in various environments.
LED Illumination & Performance
Delivering 15 lumens per foot with a vibrant orange hue, this tape light ensures high color saturation and even illumination, ideal for decorative and accent lighting.
Power, Wiring & Installation
Requires a 24VDC power supply, with a maximum continuous run of 16 ft 4 in. to prevent voltage drop. The tape is dimmable for adjustable brightness levels.

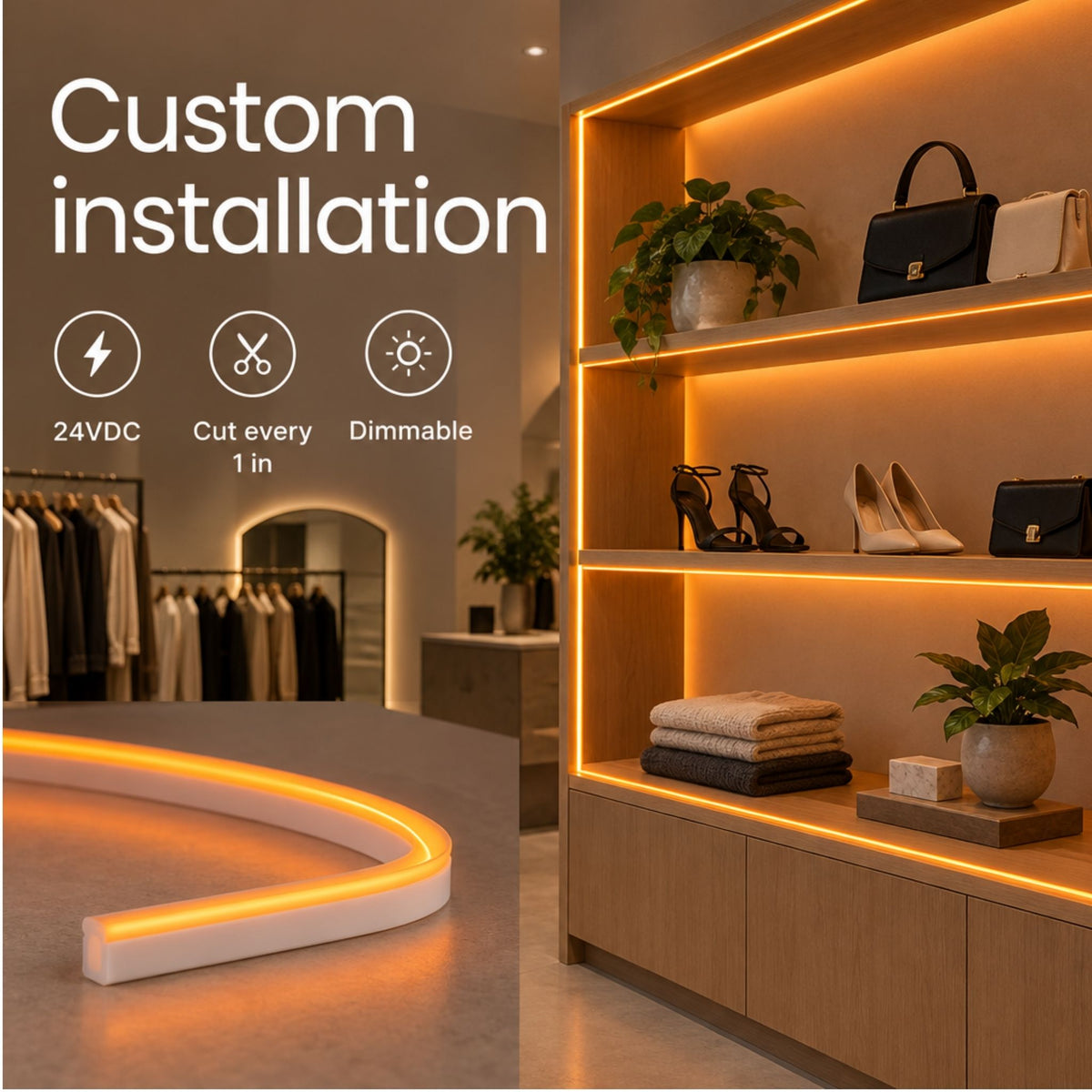

Where This Tape Works Best
- Cove lighting
- Outdoor pathways
- Accent lighting
- Architectural highlights
What's Included
- 16 ft 4 in. neon tape light spool
- Pre-attached 4 ft power feed at each end
- 2 end caps
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the NeoVision Mini NVM24S-2W-OR-16?
What is the maximum run length for the NeoVision Mini NVM24S-2W-OR-16?
How often can the NeoVision Mini tape be cut?
How often can the NeoVision Mini tape be cut?
What voltage is required for the NeoVision Mini NVM24S-2W-OR-16?
What voltage is required for the NeoVision Mini NVM24S-2W-OR-16?
Is the NeoVision Mini tape light suitable for outdoor use?
Is the NeoVision Mini tape light suitable for outdoor use?
What type of adhesive backing does the NeoVision Mini tape use?
What type of adhesive backing does the NeoVision Mini tape use?
