Keystone KT-HBLED95PS-1H-OSC-8CSD-VDIM /G3 OpticSwap XFiT LED Linear High Bay — 55/75/95W Selectable, 4000K/5000K, 120–277V, White

The Keystone KT-HBLED95PS-1H-OSC-8CSD-VDIM /G3 is a 1-ft OpticSwap XFiT LED linear high bay delivering up to 16,245 lumens with field-selectable 55W / 75W / 95W wattage and 4000K / 5000K color temperature. Its defining feature is Keystone’s OpticSwap technology — a tool-free interchangeable lens system that rotates between a 90° standard beam for open-area coverage and a 45° × 110° aisle beam for narrow-aisle directed illumination, all from a single fixture. Operating on 120–277V with 0–10V dimming (Dim-to-off), it includes a built-in sensor receptacle, damp location rating (UL 1598), TAA compliance, DLC Premium listing, and a 10-year limited warranty.

Key Features

• OpticSwap Technology: Tool-free interchangeable lens — rotate between 90° standard and 45°×110° aisle distribution without any tools or rewiring. One fixture serves both open-area and narrow-aisle applications.
• Selectable Wattage (Power Select): 55W / 75W / 95W — field-selectable on site.
• Selectable CCT (Color Select): 4000K / 5000K — field-selectable on site.
• Max Lumen Output: 16,245 lm (95W / 4000K, standard 90° lens).
• Peak Efficacy: Up to 177 lm/W.
• CRI: >80.
• Dimming: 0–10V, dim to 10% then Dim-to-off.
• Voltage: 120–277V AC, 50/60Hz.
• Surge Protection: 6kV built-in.
• Housing: Die-cast aluminum — superior heat management for long LED life.
• Lens: OpticSwap polycarbonate lens — tool-free 90° / 45°×110° swap via two clasps.
• Controls Ready: Built-in sensor receptacle for Keystone SmartSafe/SmartPort screw-in sensors.
• Emergency Backup Compatible: Keystone SmartSafe emergency LED drivers (sold separately).
• Location Rating: UL Listed 1598 — Damp Location.
• Operating Temperature: −20°C to +55°C (−4°F to +131°F).
• Rated Life: L70 >100,000 hrs @ 25°C/77°F ambient fixture temperature.
• Certifications: UL Listed, DLC Premium, TAA Compliant, FCC Part 15 Class A, RoHS.
• Warranty: 10-year limited warranty.

Performance & Light Output

Input Voltage: 120–277V AC | Dimming: 0–10V | CRI: >80 | Rated Life: L70 >100,000 hrs @ 25°C/77°F

Replaces: 250W HID · 6-lamp F32T8 fluorescent

Aisle lens (45°×110°) lumen output varies — refer to Keystone photometric data for aisle-specific footcandle calculations.

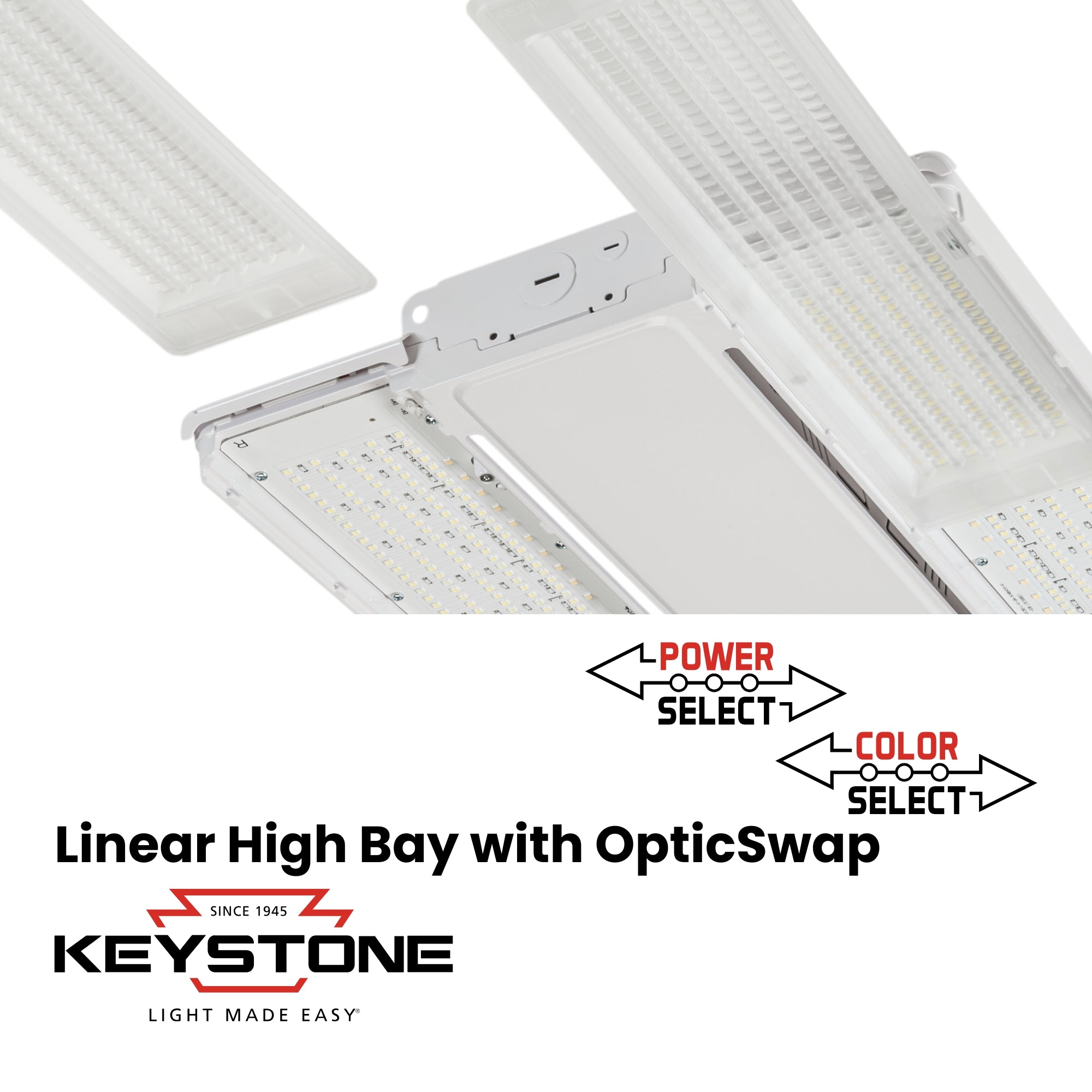

OpticSwap Lens Technology

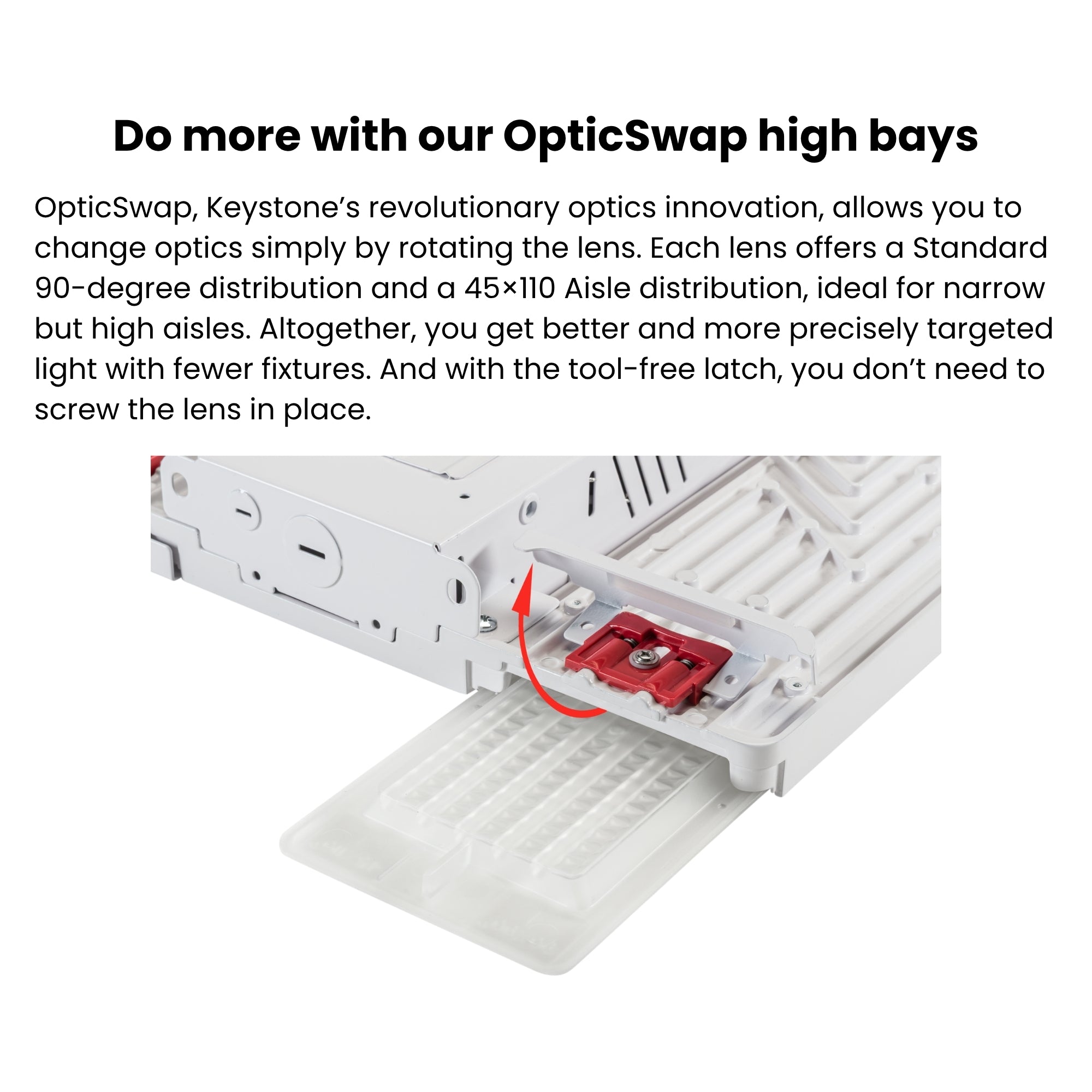

The OpticSwap system ships with two lenses in one fixture: a standard 90° lens installed and a 45°×110° aisle lens included. To swap, release two clasps, rotate the lens 180°, and secure — no tools required. This eliminates the need to stock separate fixture SKUs for open-area and aisle applications, reducing project costs and inventory complexity.

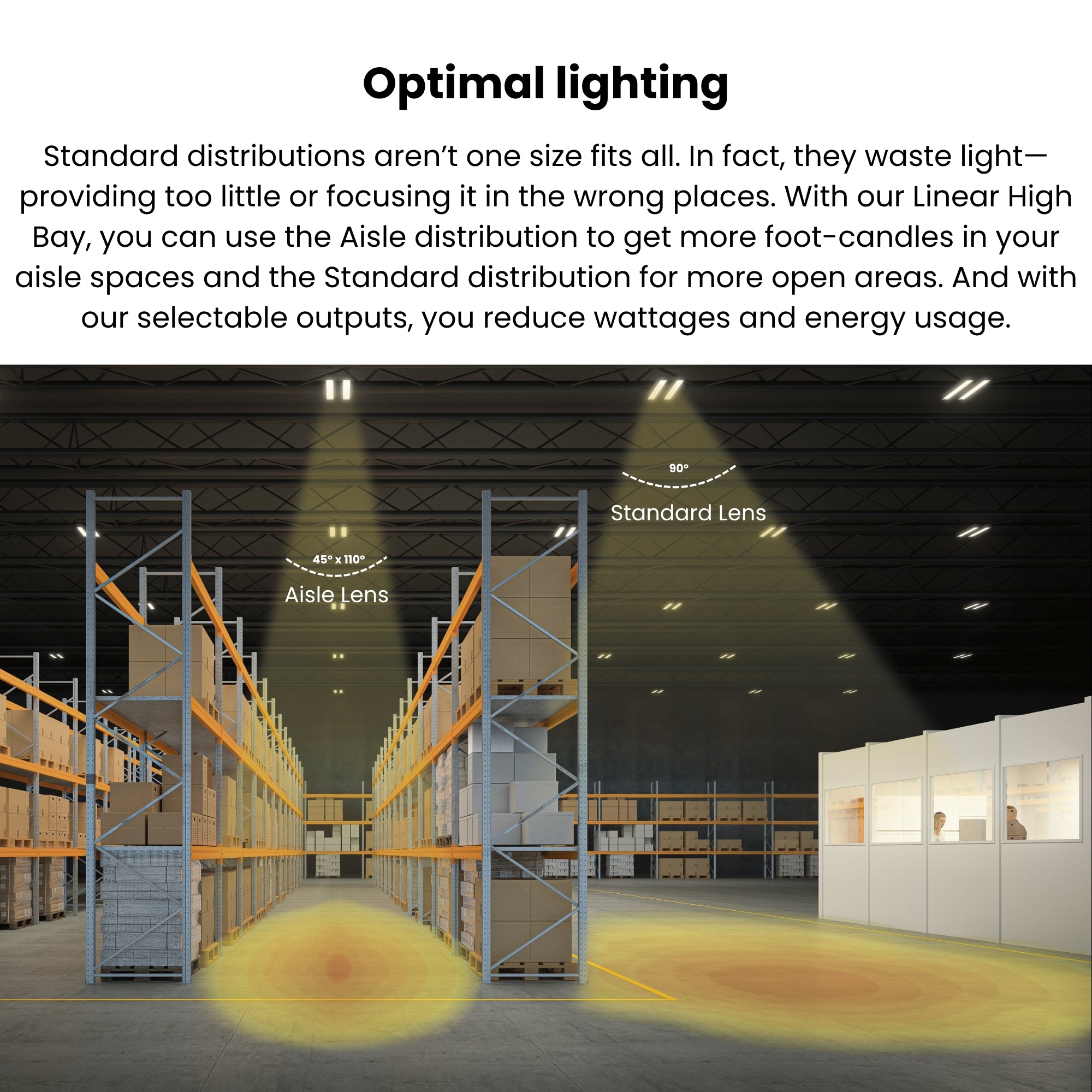

• Standard Lens (90°): Broad symmetric distribution ideal for open warehouse floors, manufacturing areas, and gymnasiums.
• Aisle Lens (45°×110°): Narrow elongated distribution optimized for rack-storage aisles, shelving rows, and conveyor lines where targeted illumination reduces spill light.

Smart & Control Features

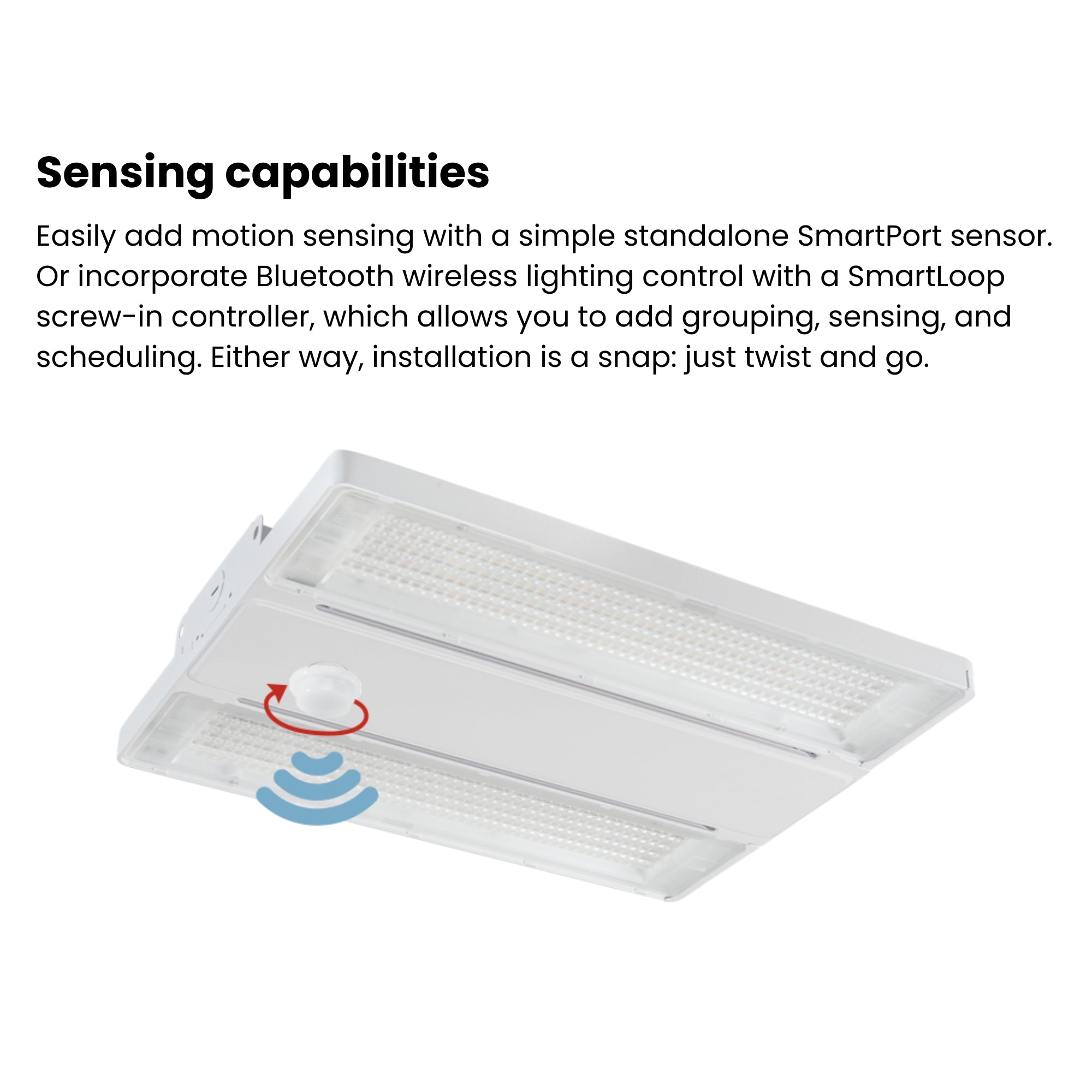

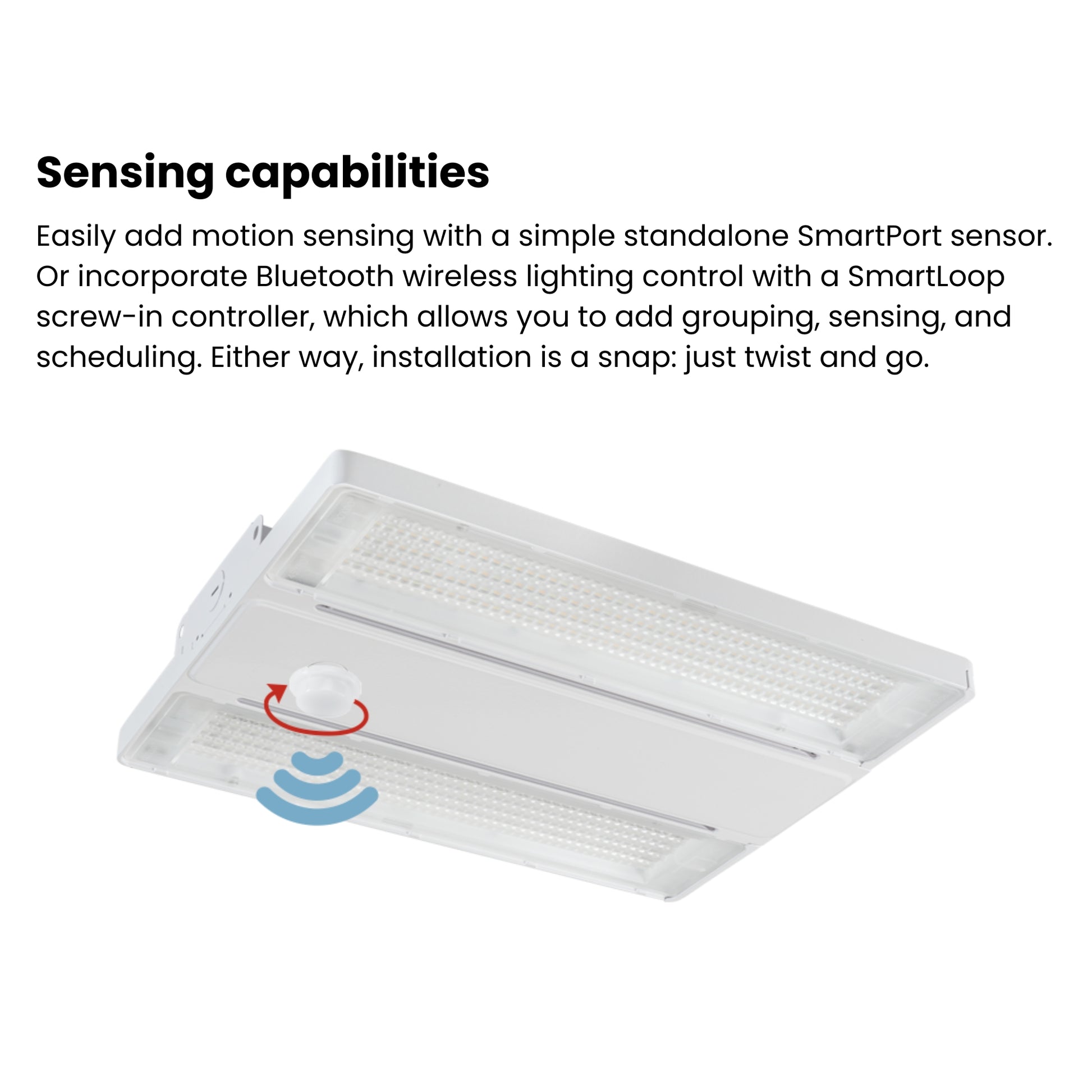

The KT-HBLED95PS-1H includes a built-in sensor receptacle for screw-in installation of Keystone SmartPort/SmartSafe sensors and controls — no rewiring required.

Sensors/Controllers (Factory- or Field-Installable):

• KTSL-FC3-12V-PKO-PIR — Smart Loop Bluetooth mesh screw-in PIR occupancy sensor with built-in fixture controller. No wiring required.
• KTSL-FC4-12V-PKO — Smart Loop Bluetooth mesh low voltage fixture controller, 12V, 0–10V Dimming.
• KTS-PIR3-12V-PKO /G2 — Smart Port PIR sensor for high bay fixtures. Preset: 1 min hold, 3 min standby at 30% dim, daylight disabled.
• KTS-MW3-12V PKO — Smart Port microwave multifunction sensor. Preset: 10 min hold, ∞ min standby at 50% dim.
• KTS-MW3-REMOTECONTROL — Remote Control for KTS-MW3 and KTS-PIR3 sensors. Field-use only.

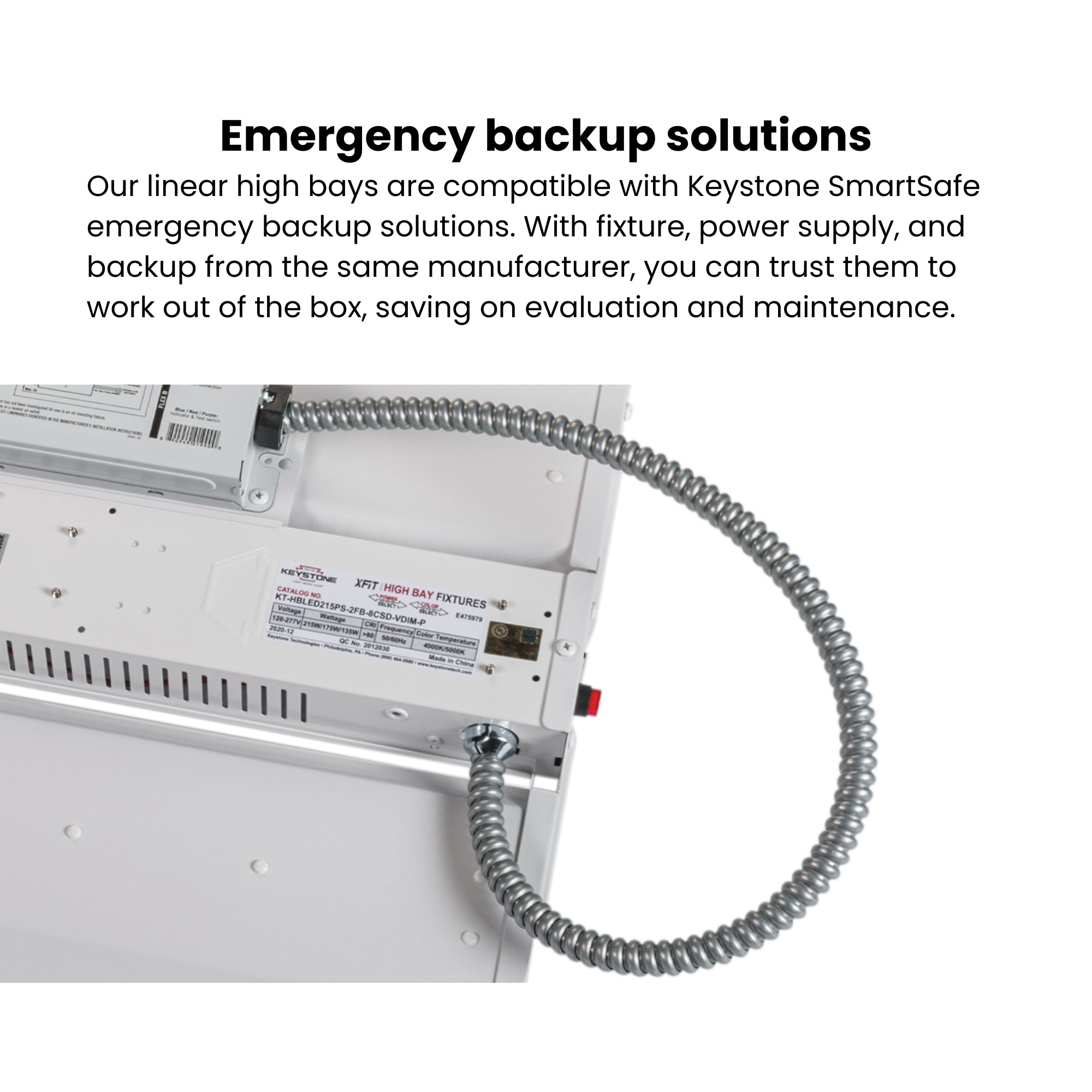

Emergency Backup (Factory- or Field-Installable):

• KT-EMRG-LED-10BC-1000-EN3/DF — 10W, 1000 lm SmartSafe emergency backup with dual flex cables.
• KT-HBLED-EM-BR-G-KIT — Emergency LED Backup Mounting Kit. Field-installable only.

Electrical

Constant-current LED driver rated for 120–277V AC, 50/60Hz. Built-in 6kV surge protection. 0–10V continuous dimming with Dim-to-off. Power factor >0.90. THD <20%. FCC Part 15, Part B, Class A. Mercury-free, RoHS compliant.

Construction

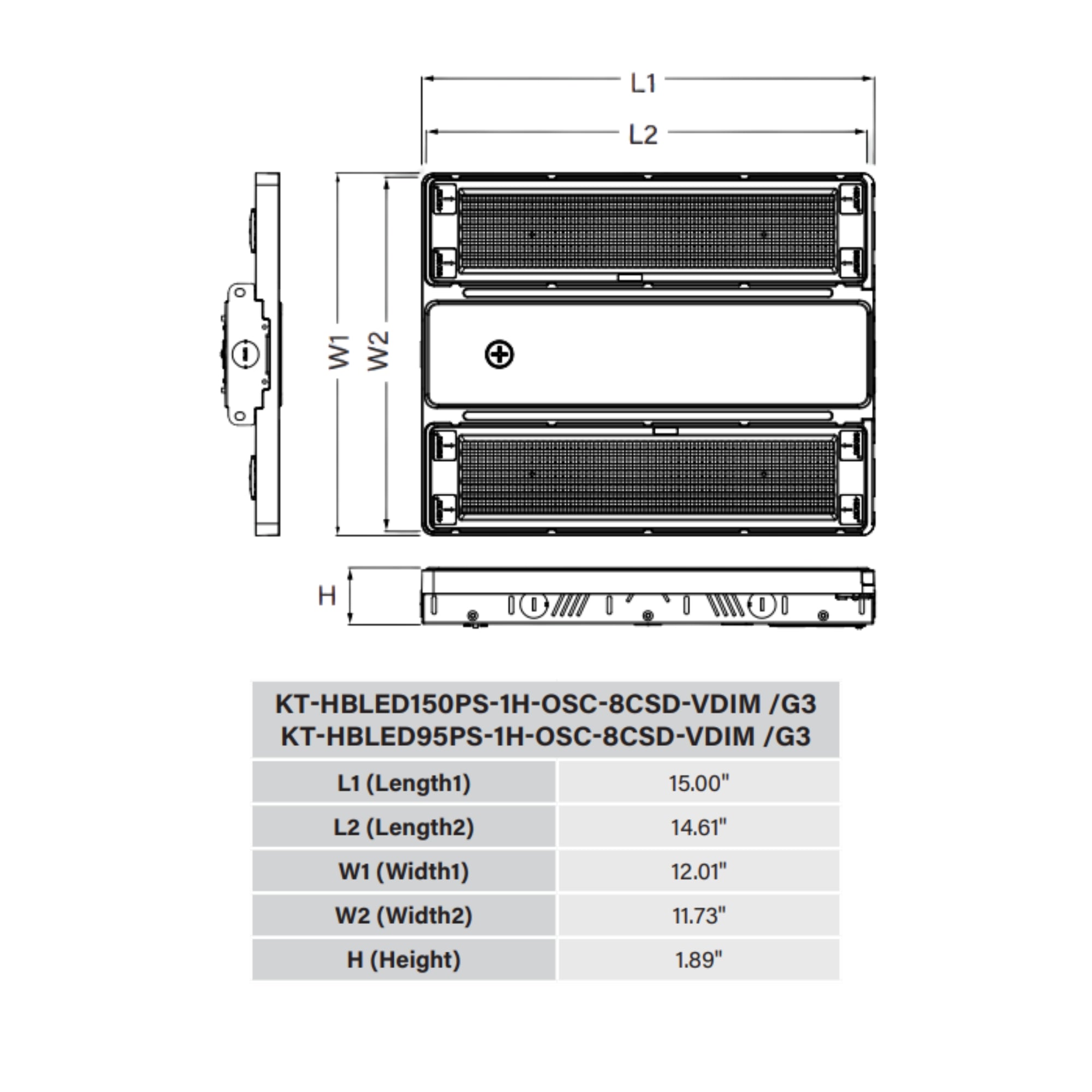

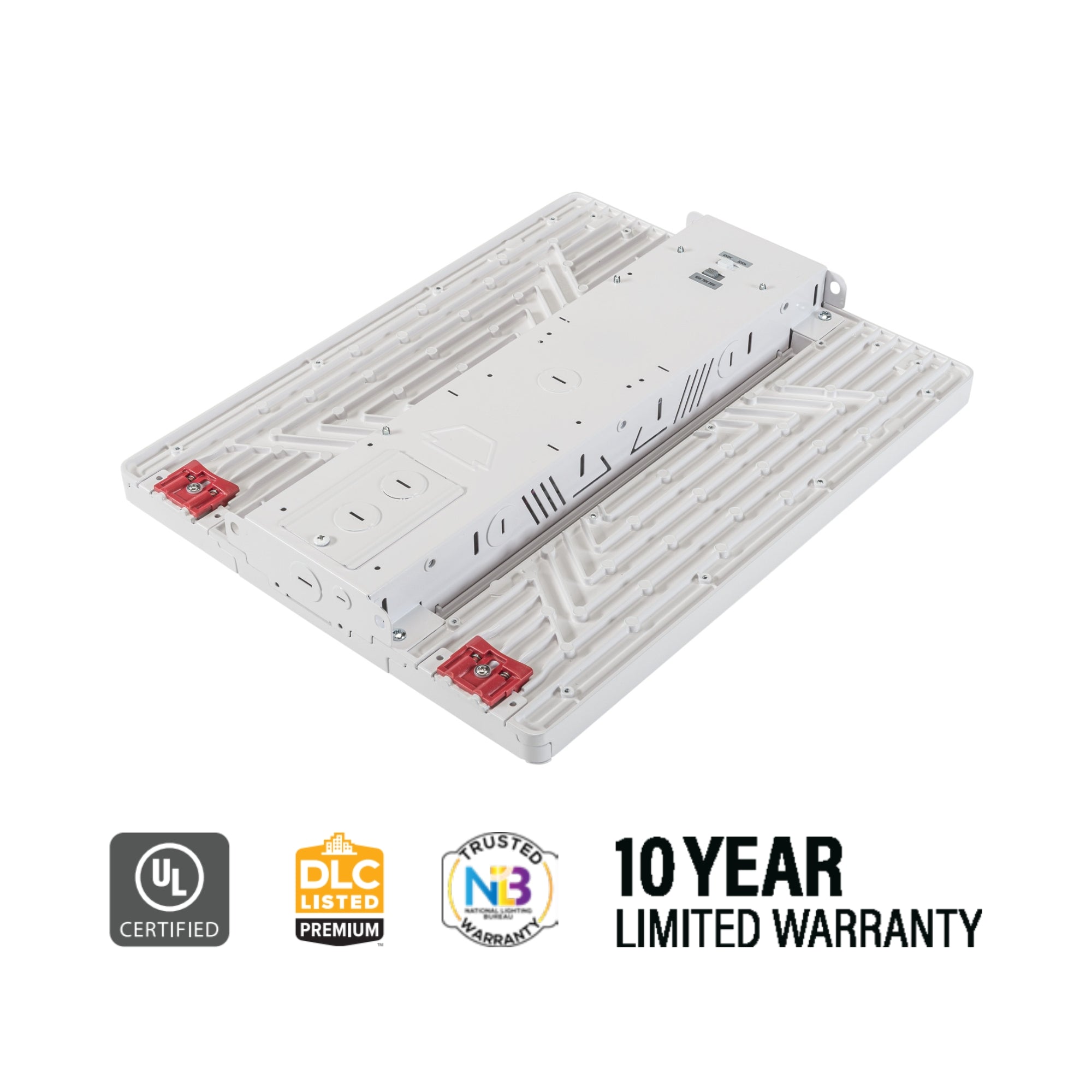

Die-cast aluminum housing with white powder-coat finish for superior thermal management and long-term durability. OpticSwap polycarbonate lens system secured via two tool-free clasps. UL 1598 Listed for damp locations. Operating temperature: −20°C to +55°C (−4°F to +131°F). Dimensions: 15.00" L × 12.01" W × 1.89" H. Weight: 6.61 lbs.

Installation & Mounting

Includes V-hook and chain mounting hardware for suspended installation. Compatible with optional accessories (sold separately):

• KT-HBLED-WG-1G-KIT — Wire Guard Kit for 1G High Bay Fixtures.
• KT-HBLED-PM-1/2G-KIT — Pendant Mount Kit for 1G and 2G High Bay Fixtures.
• KT-HBLED-SM-1/2G-KIT — Surface Mount Kit for 1G and 2G High Bay Fixtures.

For higher-output applications, consider the KT-HBLED150PS OpticSwap (90/120/150W) or KT-HBLED240PS OpticSwap (160/200/240W).

Certifications & Rebates

• DLC Premium Listed — qualifies for utility rebate programs. Verify at designlights.org.
• UL Listed 1598 — Damp Location rated.
• TAA Compliant — eligible for U.S. government and GSA procurement.
• FCC Part 15, Class A | RoHS Compliant.
• 10-Year Limited Warranty.

Typical Applications

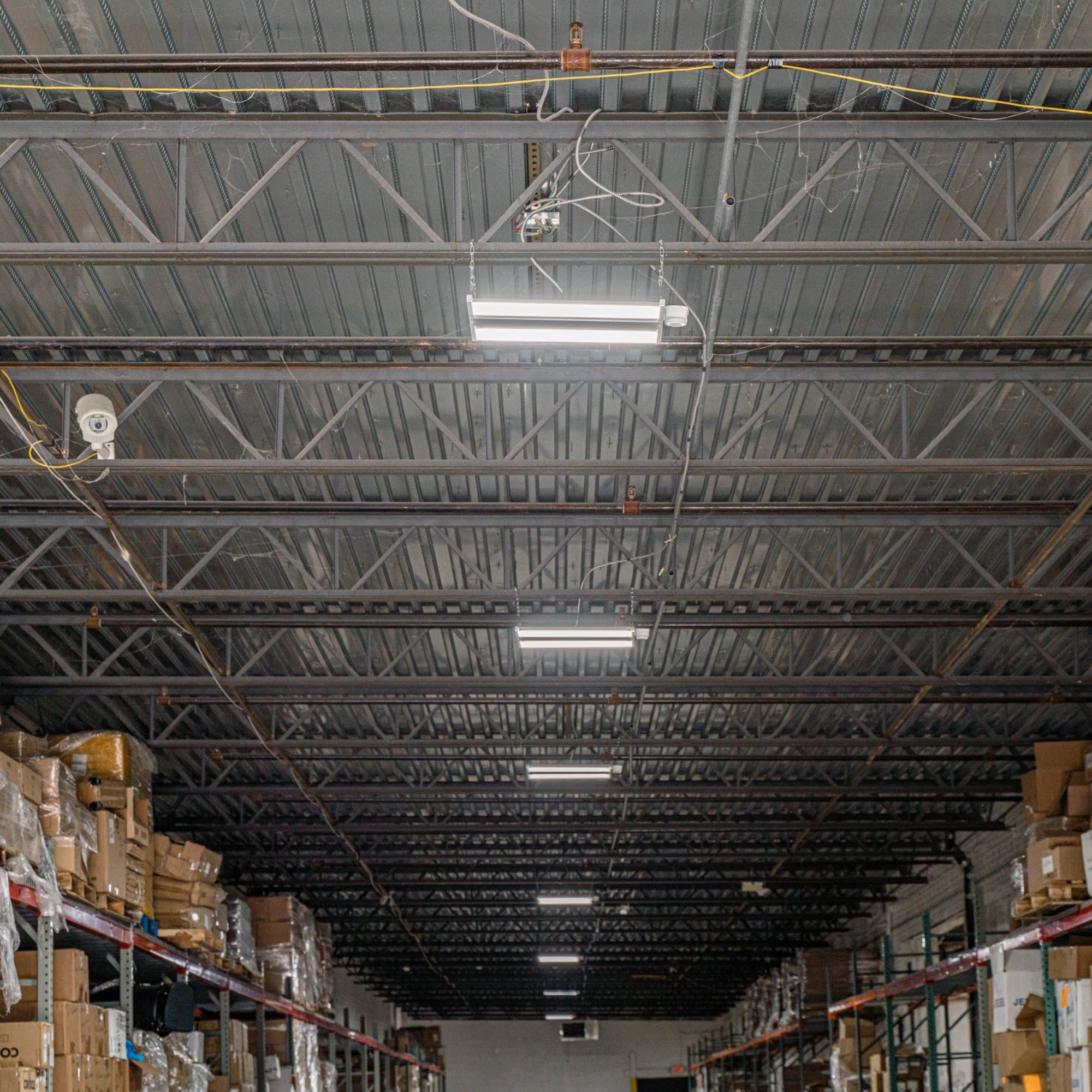

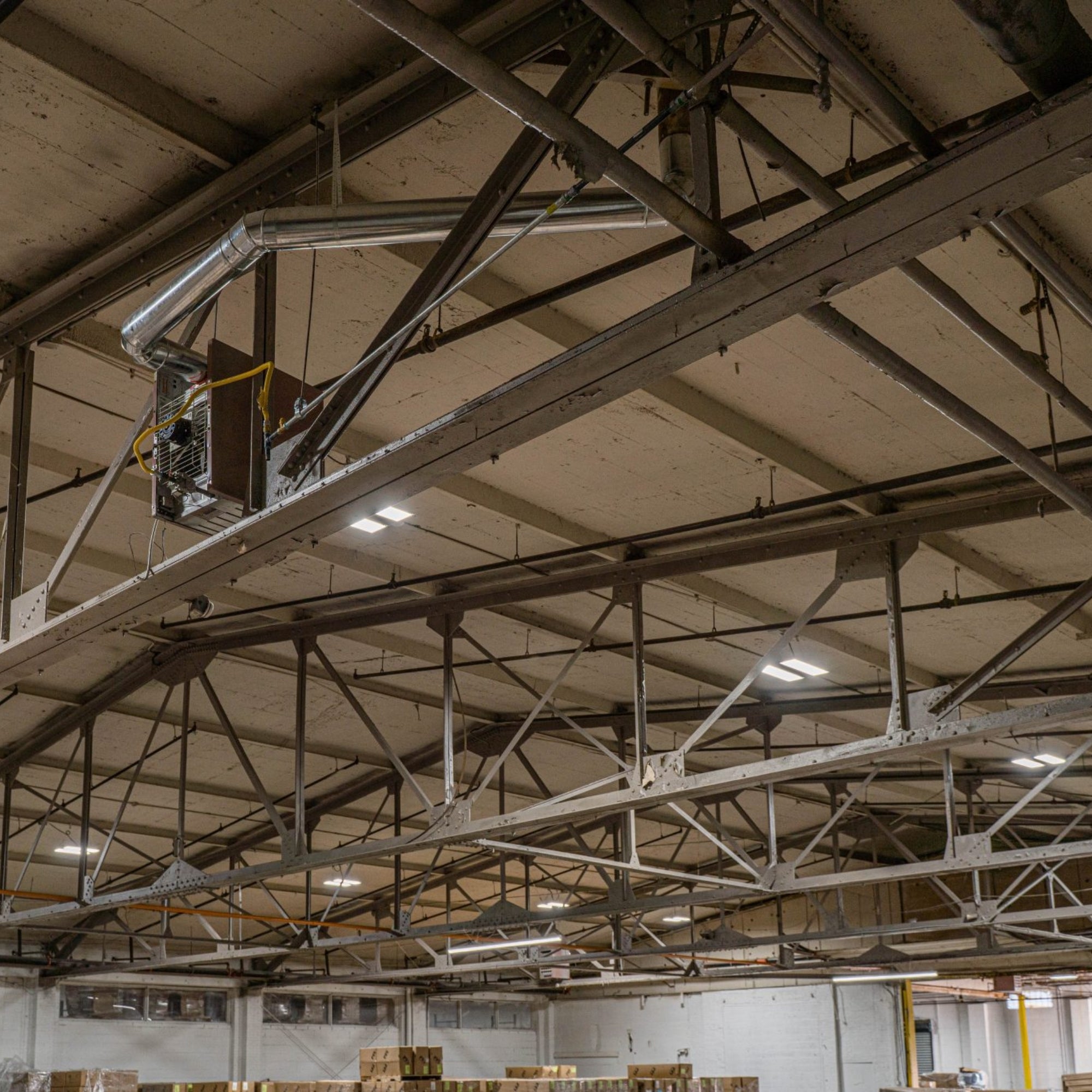

• Warehouses and distribution centers — 15–25 ft mounting heights; use aisle lens for rack-storage rows, standard lens for open floor zones.
• Manufacturing and light assembly facilities — selectable 4000K/5000K for task accuracy from general production to quality inspection areas.
• Narrow-aisle storage and high-density racking — 45°×110° aisle lens delivers focused illumination down shelving rows without spill into adjacent aisles.
• Gymnasiums and recreational facilities — broad 90° lens for glare-controlled coverage over courts and activity areas.
• Retail stockrooms, big-box back-of-house, and mezzanines — sensor-ready for occupancy-based energy savings.
• Government and institutional buildings — TAA compliant for qualifying GSA and public procurement.

What’s Included

• Keystone KT-HBLED95PS-1H-OSC-8CSD-VDIM /G3 LED Linear High Bay (White)
• OpticSwap standard 90° lens (installed) and 45°×110° aisle lens (included)
• V-hook and chain mounting hardware
