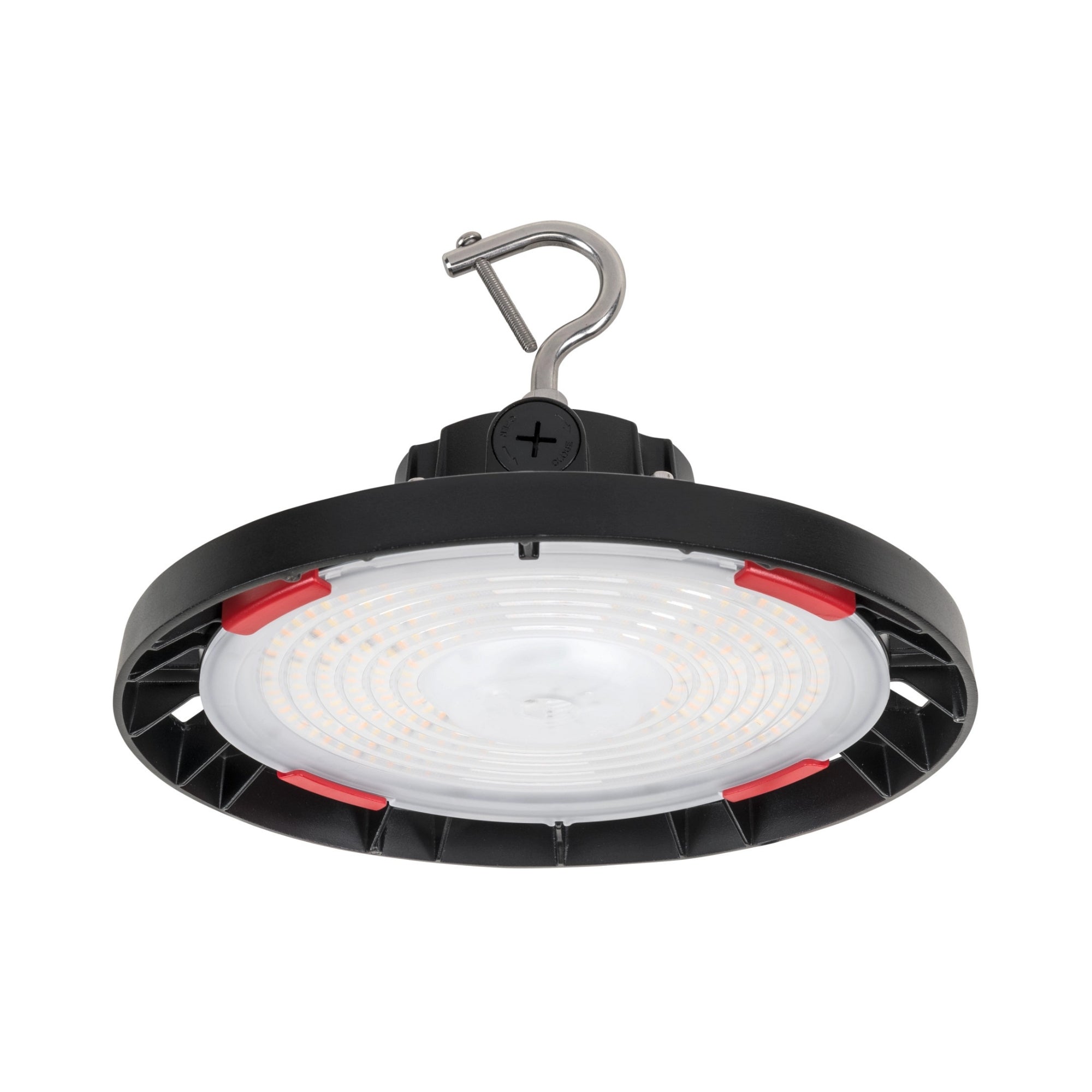

Keystone KT-RHLED200PS XFiT OpticSwap UFO LED High Bay — 200W / 150W / 100W Selectable — Black

The KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P is a 14″ round UFO LED high bay for commercial and industrial high-bay applications at 25–45 ft mounting heights. Wattage is field-selectable between 200W, 150W, and 100W via Keystone Power Select technology; color temperature is independently field-selectable between 3000K, 4000K, and 5000K via Keystone Color Select technology — no tools or rewiring required. At 200W / 4000K the fixture delivers 31,400 lm at 157 lm/W; peak efficacy reaches 166 lm/W at 100W / 4000K. The OpticSwap tool-free latch system enables field beam angle changes between the included 90° and 120° lenses in seconds. Rated DLC Premium for the highest tier of utility rebate eligibility. Operates on 120–277V with integrated 0–10V dimming and is UL Listed for wet locations with IP65 ingress protection. Backed by a 10-year limited warranty from Keystone Technologies.

Key Features

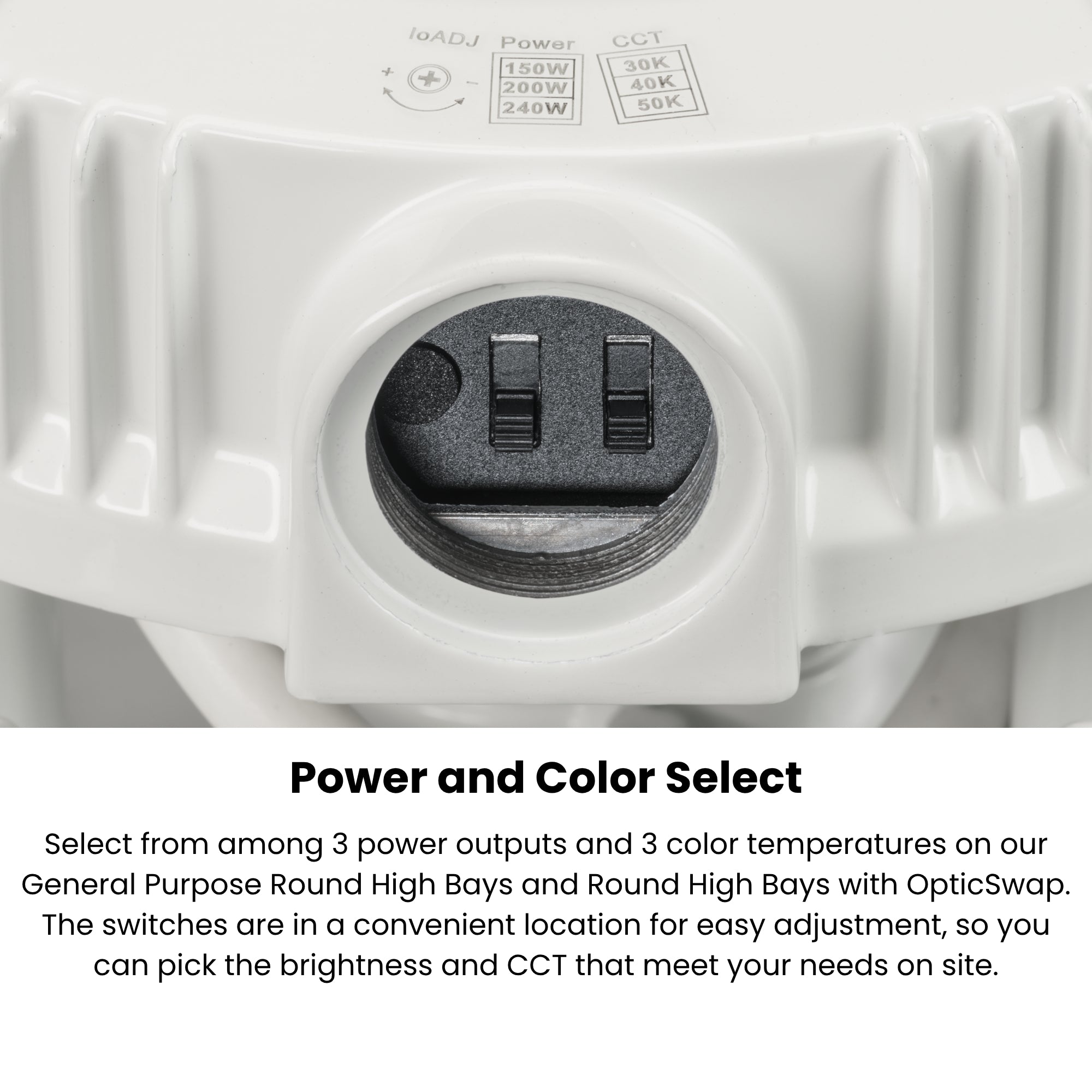

• Selectable Wattage: 200W / 150W / 100W — field-adjustable via Keystone Power Select technology; see Performance & Light Output for lumen output at each setting
• Maximum Lumen Output: 31,400 lm at 200W / 4000K
• Peak Efficacy: 166 lm/W at 100W / 4000K
• CRI: >80 across all wattage and CCT configurations
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable via Keystone Color Select technology; color uniformity per ANSI C78.377-2017
• OpticSwap Lens System: Tool-free latch — 90° standard lens pre-installed, 120° wide-angle lens included; swap beam angle in seconds without tools or removing the fixture
• Dimming: 0–10V continuous dimming via Keystone 0–10V dimming LED driver; 6-foot dimming wires included
• Voltage: Universal 120–277V, 50/60Hz; constant current LED driver; built-in 6kV surge protection
• Location Rating: UL Listed for wet locations; IP65 rated for dust and water ingress
• Operating Temperature: −40°F (−40°C) minimum to 122°F (50°C) maximum ambient
• Certifications: cULus Listed, DLC Premium, TAA Compliant, N3B Trusted Manufacturer, RoHS
• Rated Life: L70 >100,000 hours @ 25°C fixture ambient; low optical flicker
• Warranty: 10-year limited — Keystone Technologies
• Sensor-Ready: 1/2″ knock-out (KO) receptacle — accepts Keystone screw-in PIR, microwave, and SmartLoop LLLC sensors without internal wiring

Performance & Light Output

The KT-RHLED200PS-14CD-OSD delivers field-selectable output across three wattage settings and three CCT options — all combinations at 120–277V with 0–10V dimming and CRI >80. Color uniformity per ANSI C78.377-2017.

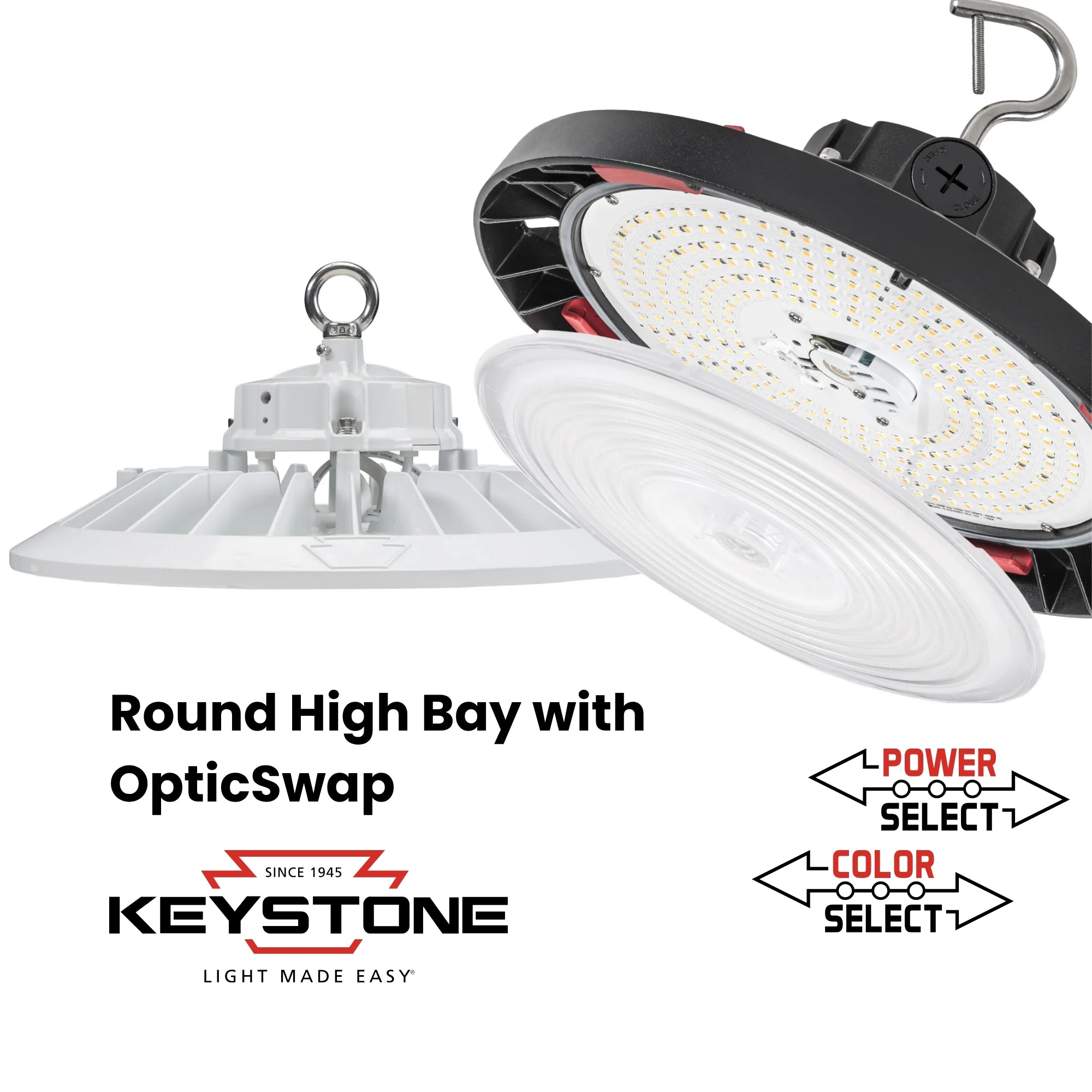

Lens & Optics — OpticSwap

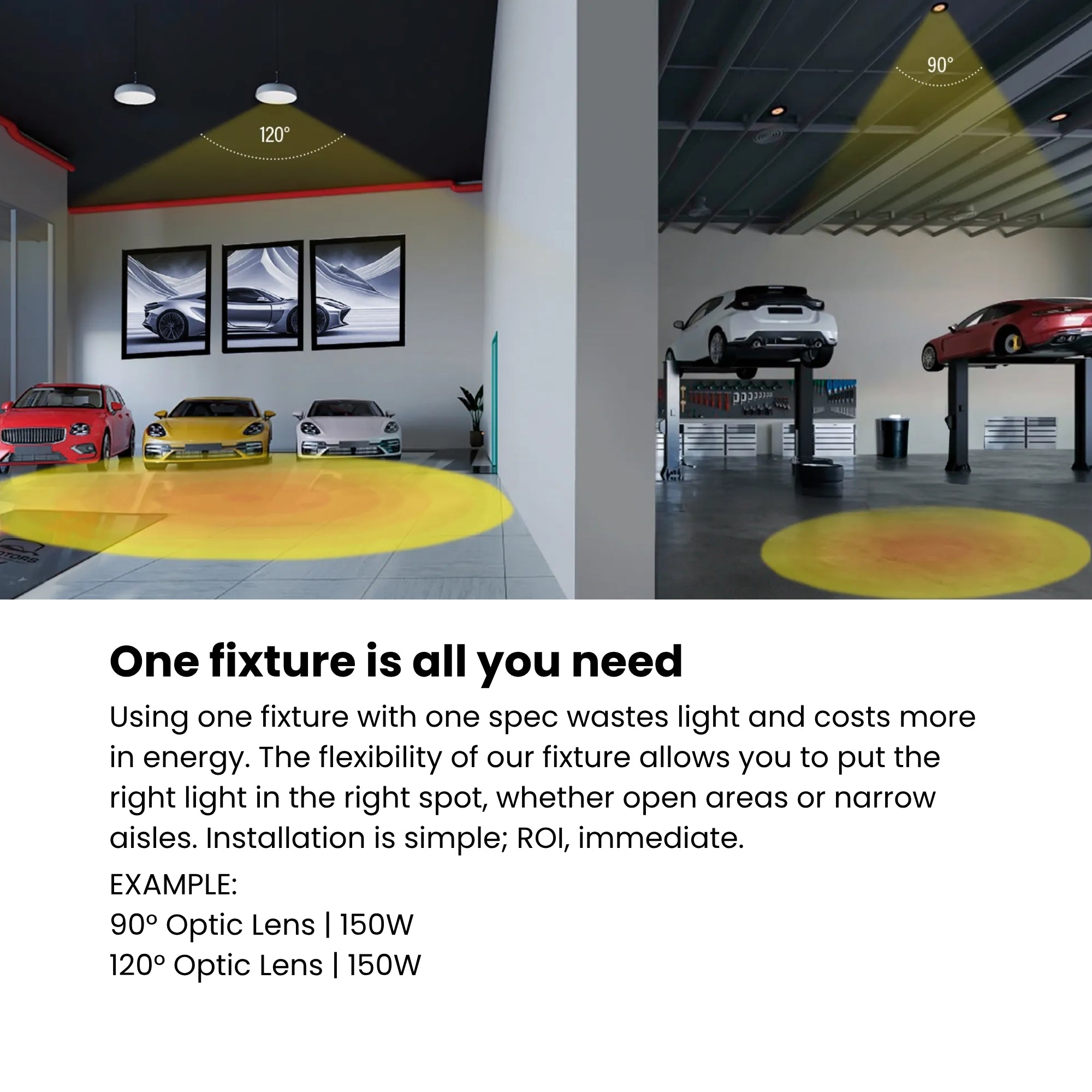

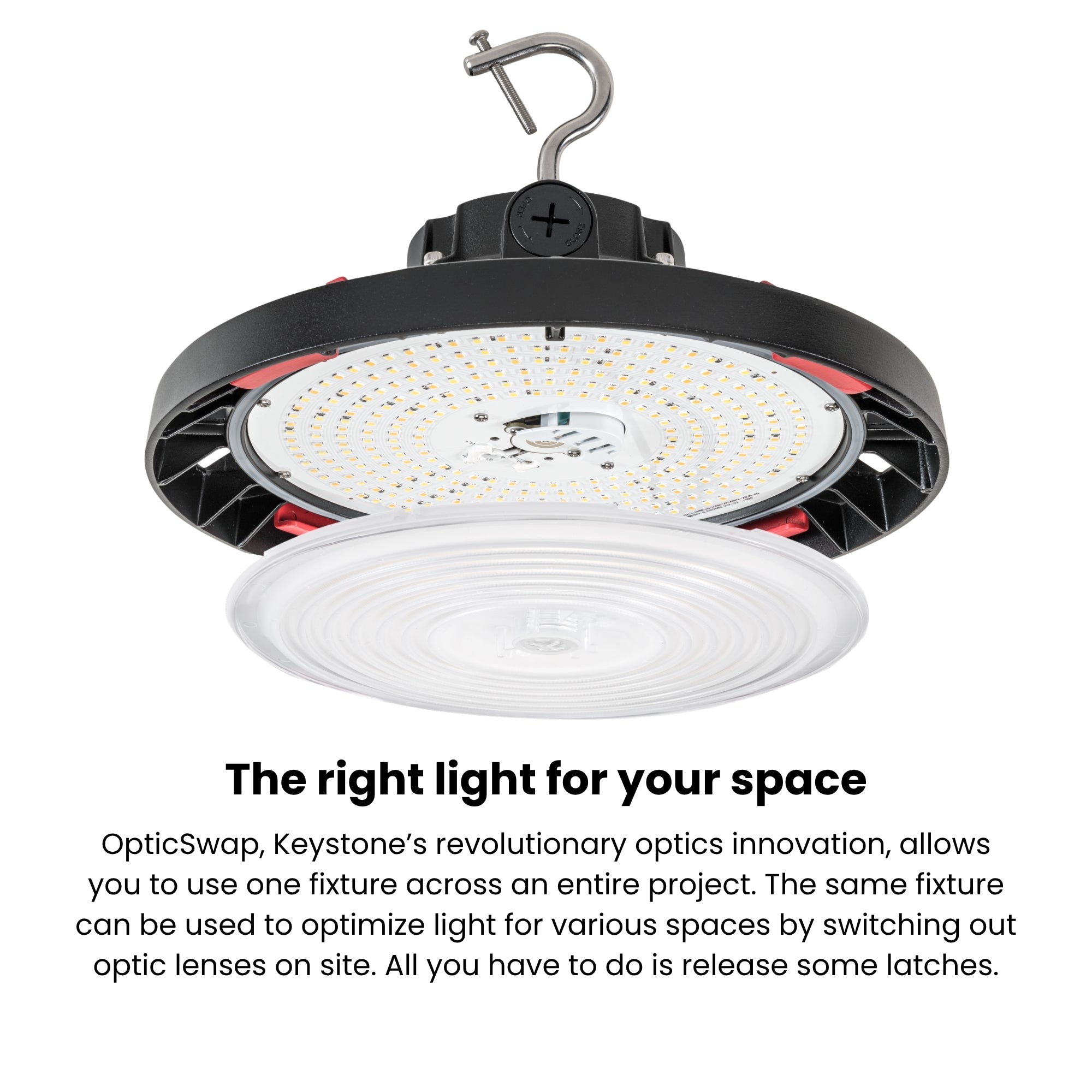

The OpticSwap tool-free latch system allows field beam angle changes without tools or rewiring. The 90° standard lens (pre-installed) delivers focused distribution suited for higher mounting heights and tighter aisle spacing. The included 120° wide-angle lens broadens horizontal spread for lower mounting heights and wider spacing layouts. To swap: release the tool-free latch, remove the installed lens, and snap in the alternate lens. One SKU covers both beam distributions. Note: the 200PS uses the 14″ (14CD) body — accessories are not interchangeable with the 12″ (12CD) 100PS/150PS body. Optional reflector accessories available separately.

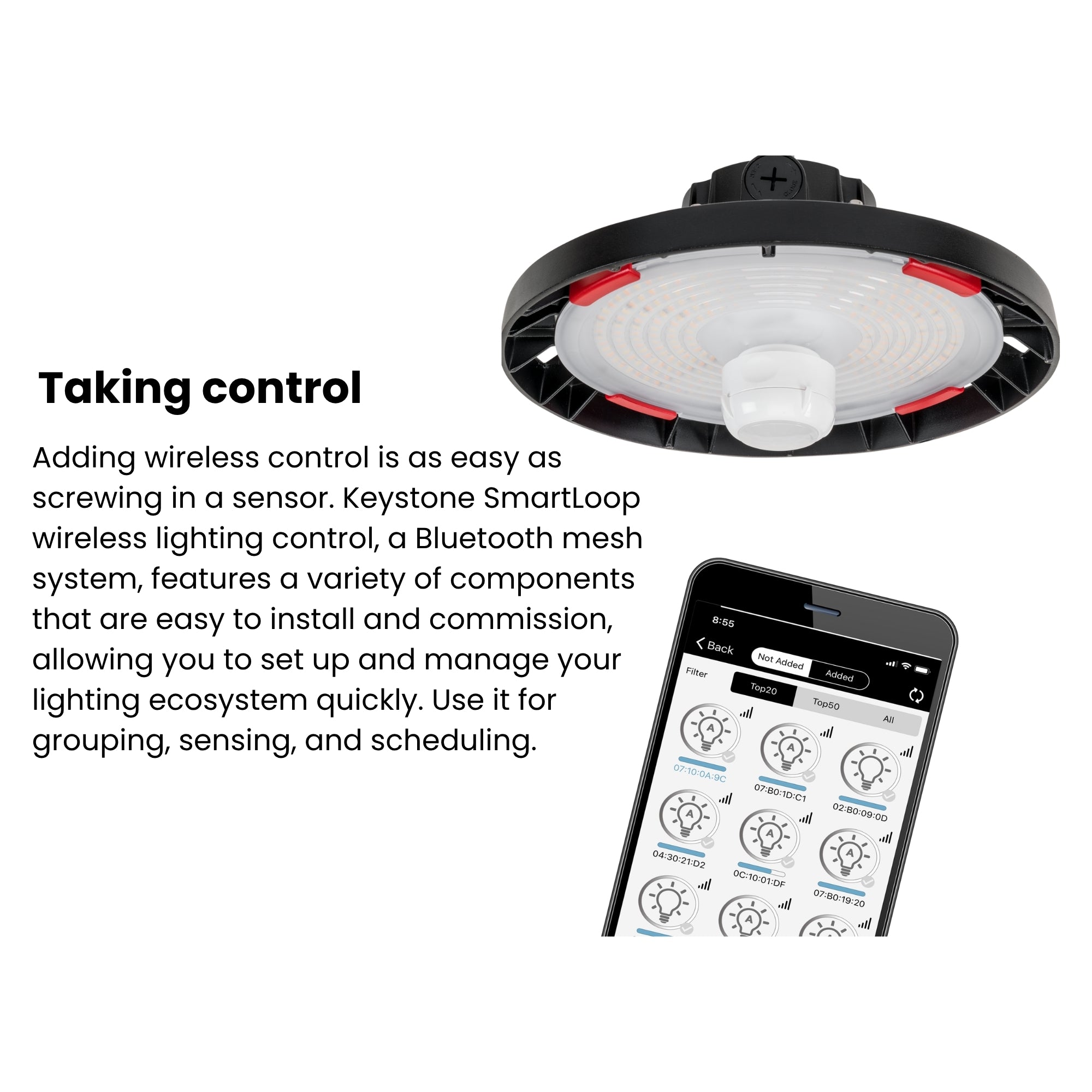

Smart & Control Features

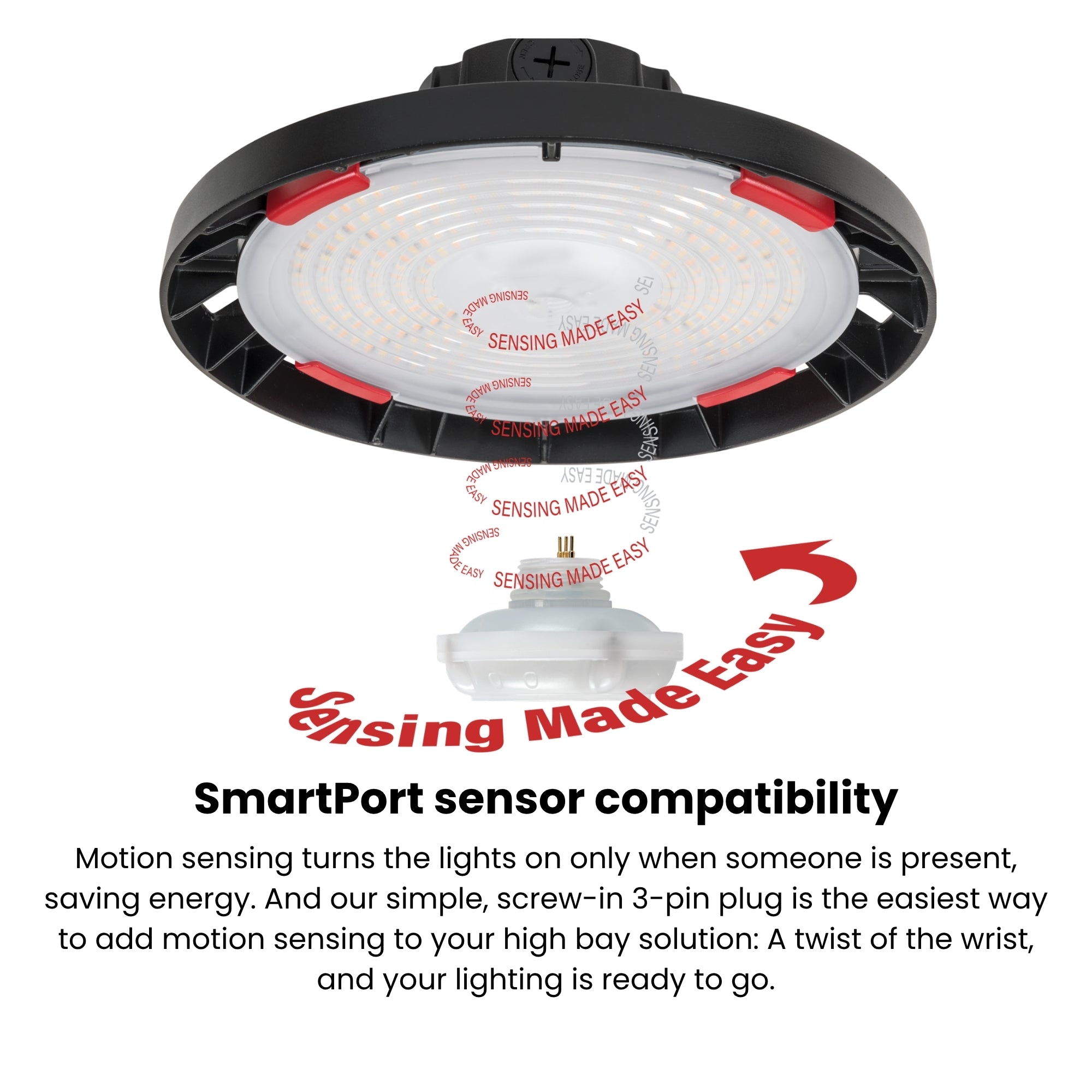

The KT-RHLED200PS-14CD-OSD includes a 1/2″ knock-out sensor receptacle for tool-free screw-in installation of optional occupancy and daylight sensors — no internal wiring required. Supports 0–10V continuous dimming for integration with commercial energy management systems. Compatible sensors and controllers:

• KTSL-FC3-12V-PKO-PIR (/FC3): Bluetooth mesh screw-in PIR occupancy sensor with built-in fixture controller for Keystone SmartLoop LLLC system
• KTSL-FC4-12V-PKO (/FC4): Bluetooth mesh screw-in PIR occupancy sensor with built-in fixture controller for Keystone SmartLoop LLLC system
• KTS-PIR3-12V-PKO /G2 (/PIR): Screw-in PIR multifunction sensor — preset for 10 min hold time, ∞ min standby at 50% dim, daylight detection
• KTS-MW3-12V-PKO (/MW3): Screw-in microwave multifunction sensor — preset for 10 min hold time, ∞ min standby at 50% dim, daylight disabled
• KTS-MW3-REMOTECONTROL (field-use only): Remote control for KTS-MW3-12V-PKO and KTS-PIR3-12V-PKO /G2 sensors — field adjustment of all sensor settings

Note: emergency backup cannot be used in conjunction with screw-in sensors on this fixture.

Electrical

Keystone 0–10V dimming constant current LED driver. Input voltage: 120–277V, 50/60Hz. Built-in 6kV surge protection. Power Factor: >0.90. THD: <20%. Dimming: 0–10V continuous; low optical flicker. Factory-installed 6-foot input cord and 6-foot dimming wires included standard. Emergency battery backup available as factory- or field-installed option: KT-EMRG-LED-40SD-5000-CEN /SF (/EM suffix) — 40W constant wattage, approximately 5,000 lm, 120–277V input, CEC T20 compliant, single flex cable with included J-Box. Note: EM cannot be used in conjunction with screw-in sensors. Mercury-free, RoHS-compliant components.

Construction

Housing & Thermal: Powder-coated aluminum housing — aluminum body provides passive thermal management to protect internal electronics and support the rated L70 >100,000-hour lifespan in continuous-duty commercial and industrial environments.

Lens & Optics: OpticSwap interchangeable lens system — 90° lens pre-installed, 120° lens included; tool-free latch swap. Aluminum dome reflector accessory available separately (14″ body).

Finish: Black powder-coat finish.

Environmental & Safety: IP65 rated — completely dust-tight and sealed against low-pressure water jets. UL Listed for wet locations. Built-in 6kV surge protection. Operating range: −40°F (−40°C) to 122°F (50°C). Low optical flicker. Mercury-free, RoHS-compliant.

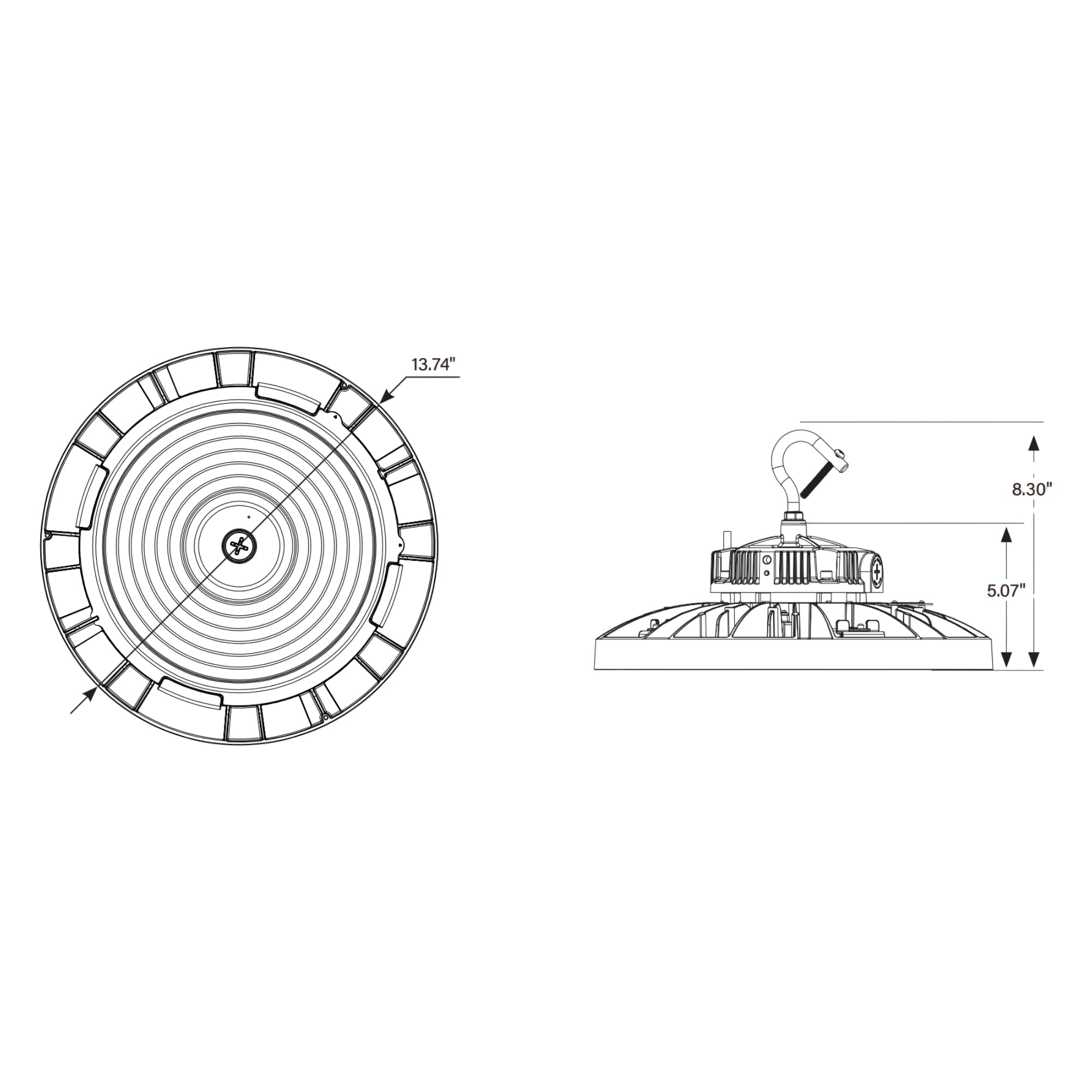

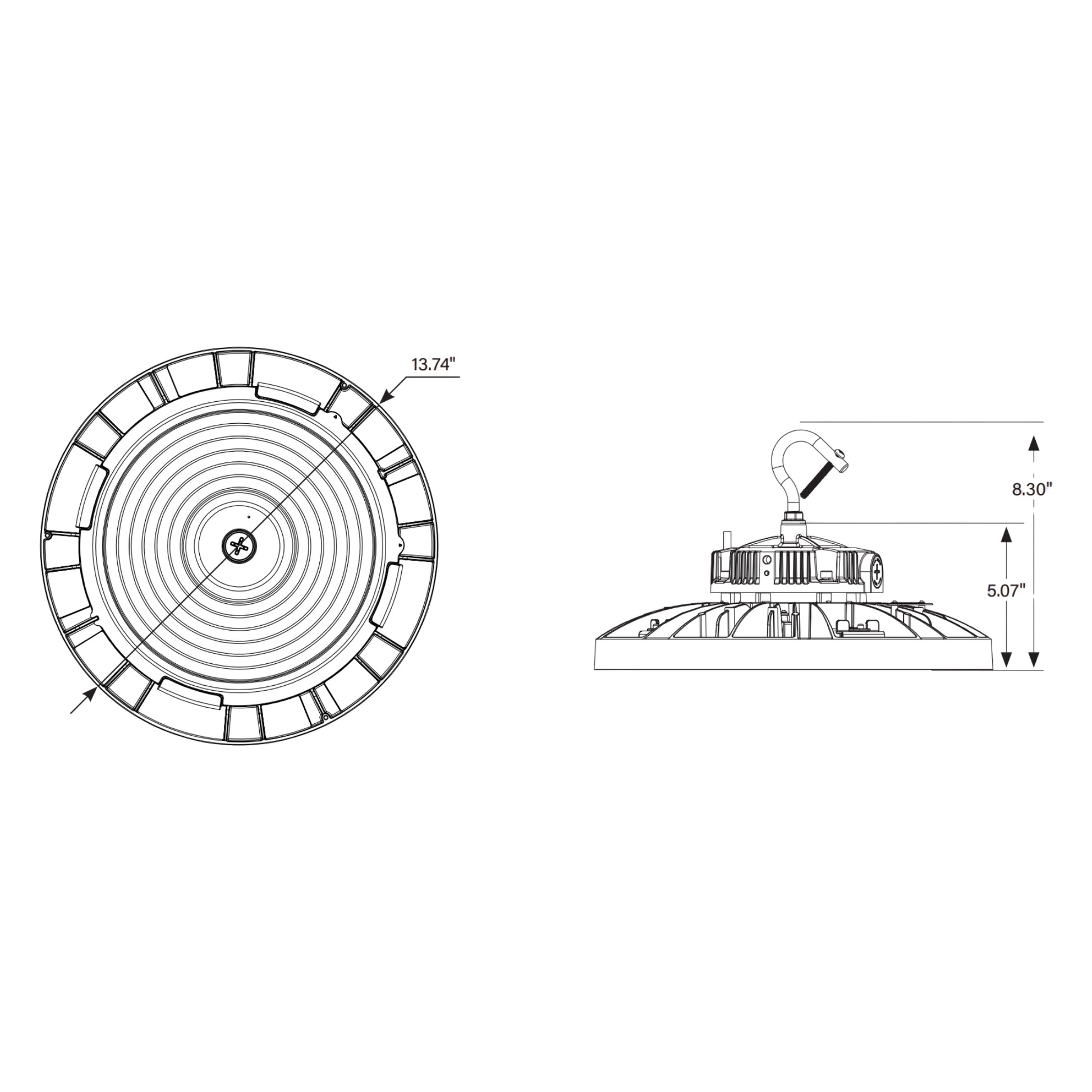

Dimensions & Weight: 13.74″ dia × 8.30″ H (J-Hook included). Weight: 10 lbs.

Installation & Mounting

Standard Hardware: J-Hook mounting accessory included standard for suspended hook installation.

Mounting Options: Surface mount kit and J-Box pole pendant mount available via accessory kits (sold separately). All accessories below fit the 14″ (200W/240W) body only — not compatible with 12″ (100W/150W) body accessories.

Wiring: Factory-installed 6-foot input cord and 6-foot dimming wires included standard. Optional twist-lock cord sets: KT-P-L515P — 125V NEMA L5-15P; KT-P-L615P — 250V NEMA L6-15P; KT-P-L715P — 277V NEMA L7-15P.

Recommended Mounting Heights: 100W — 20 to 30 ft; 150W — 25 to 40 ft; 200W — 30 to 45 ft. For higher ceiling applications, see KT-RHLED240PS. For lower ceiling applications, see KT-RHLED150PS or KT-RHLED100PS.

Accessories (Sold Separately — 14″ body):

• Aluminum Dome Reflector (200/240W body): KT-RHLED-AR90-4-KIT /G2 — includes mounting hardware
• Wire Guard (200/240W body): KT-RHLED-WG-2-KIT /G2 — includes mounting hardware
• Surface Mount Kit (200/240W body, Black): KT-RHLED-SM-2-KIT /G2 — includes mounting hardware
• Surface Mount Kit (200/240W body, White): KT-RHLED-SM-2-KIT-W /G2 — includes mounting hardware
• Optic Lens (120°): KT-RHLED-LENS-14CD-120
• Optic Lens (60°): KT-RHLED-LENS-14CD-60
• J-Box Pole Pendant Mount: KT-RHLED-JBOX-PM /G2
• Step-Down Transformer (/480 suffix): KTAT-250-480-277 /SF — fully enclosed single flex, 250VA or lower, for 480V input applications
• Emergency Battery Backup (/EM suffix): KT-EMRG-LED-40SD-5000-CEN /SF — 40W, ~5,000 lm, 120–277V, CEC T20 compliant; includes J-Box
• Sensors: KTSL-FC3-12V-PKO-PIR · KTSL-FC4-12V-PKO · KTS-PIR3-12V-PKO /G2 · KTS-MW3-12V-PKO

Certifications & Rebates

• cULus Listed — wet locations
• DLC Premium — KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P (Black) | KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P-W (White). Visit designlights.org and search by catalog number to verify rebate eligibility with your utility provider.
• TAA Compliant — eligible for U.S. government and GSA procurement
• N3B Trusted Manufacturer
• RoHS Compliant
• IP65 Rated

Typical Applications

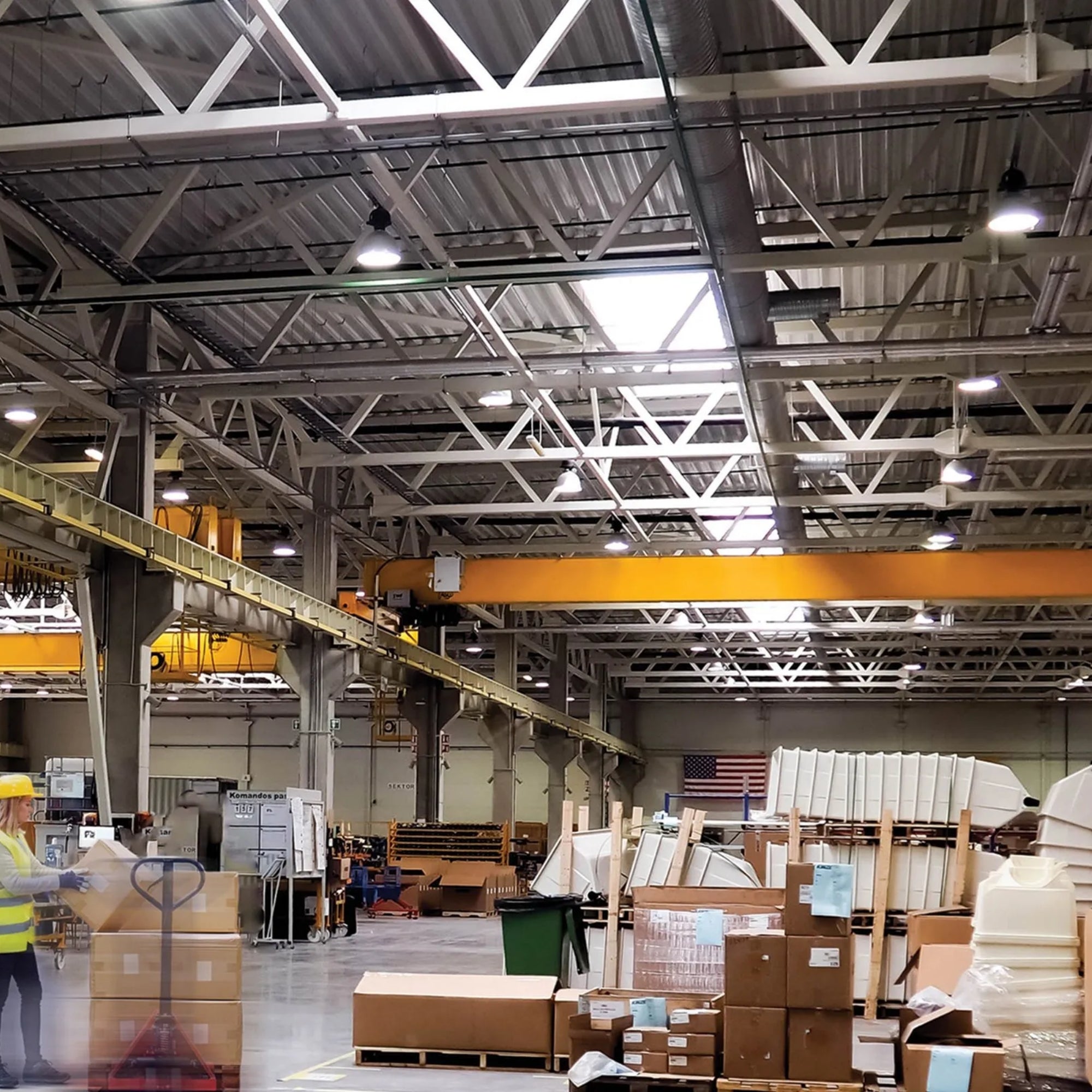

• Warehouses and distribution centers at 30–45 ft — 200W delivers 31,400 lm for high-clearance racking aisles
• Manufacturing and heavy assembly facilities — CRI >80 and selectable CCT support task-accurate color rendering
• Aviation hangars and maintenance shops — IP65 rated and UL Listed for wet locations; high output for large open-span spaces
• Cold storage and refrigerated warehouses — rated to −40°F (−40°C) for dependable cold-start performance
• Gymnasiums and large recreation centers — 120° wide-angle lens for even coverage across open-span court areas
• Municipal and government facilities — TAA Compliant for qualifying U.S. government and GSA procurement

What’s Included

• Keystone KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P XFiT OpticSwap UFO LED High Bay — Black
• 90° standard lens (pre-installed)
• 120° wide-angle lens (included)
• J-Hook mounting accessory
• 6-foot input cord
• 6-foot dimming wires
