Keystone XFiT OpticSwap LED Linear High Bay — 55–400W Selectable — 4000K/5000K — White
Available in stock (100)
About this item
About this item
- Selectable Wattage & Output: Choose from 55–400W across four wattage families — each field-selectable across three positions, delivering 9,735 to 66,400 lumens at up to 177 lm/W peak efficacy. No rewiring required.
- OpticSwap Lens System: Rotate between the 90° standard and 45°×110° aisle distribution without tools — one SKU covers both wide-area and narrow-aisle coverage without re-ordering.
- Selectable CCT: Toggle between 4000K and 5000K at the fixture — all models cover neutral and cool white for different application requirements without re-ordering.
- DLC Premium & TAA Compliant: All models qualify for the highest tier of utility rebate programs in most U.S. markets — TAA Compliant for U.S. government and GSA procurement.
- Sensor-Ready Controls: Built-in twist-in receptacle accepts Keystone SmartPort and SmartLoop sensors for occupancy-based automation — no internal wiring required.
We process payments securely and do not store credit card information.
Description
Description

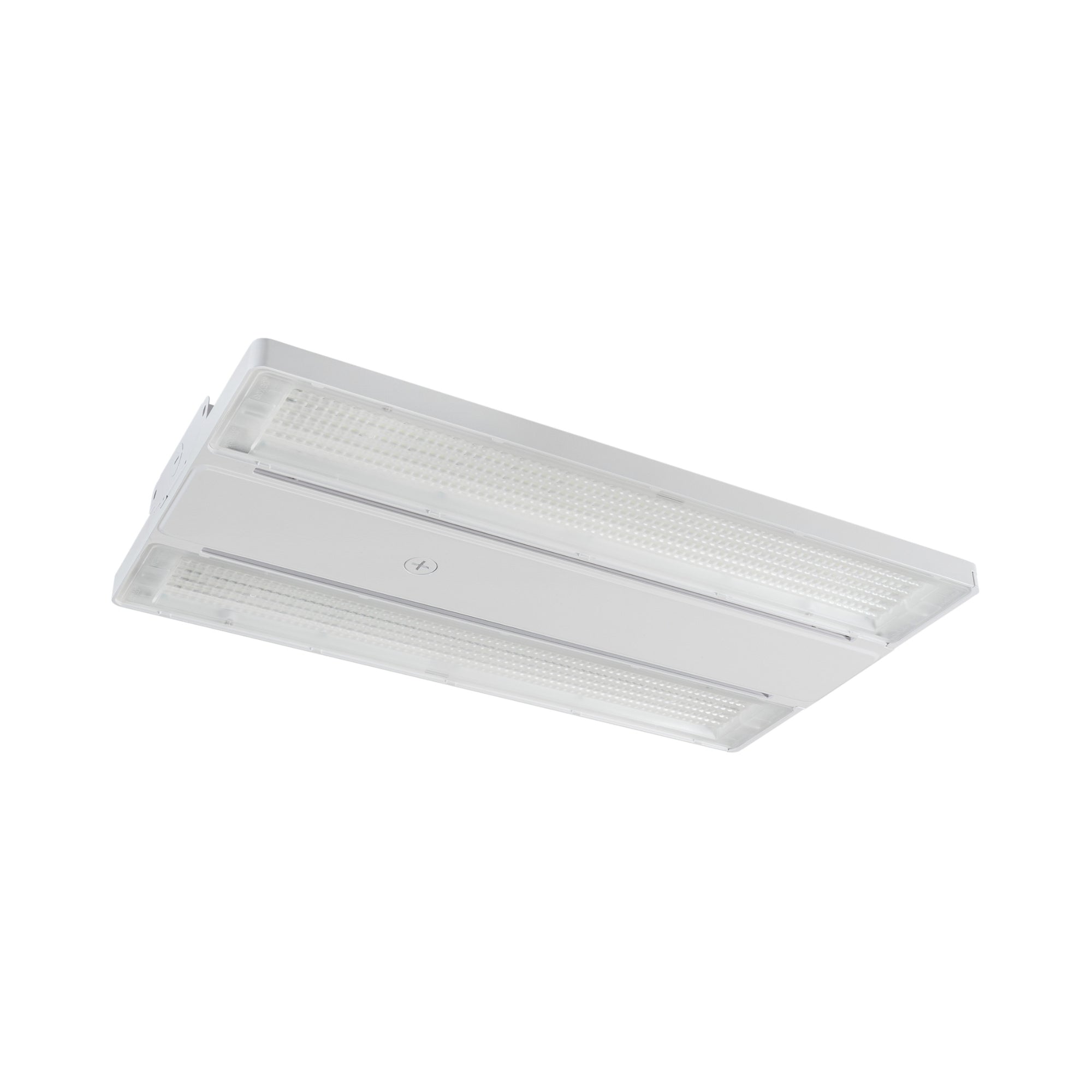

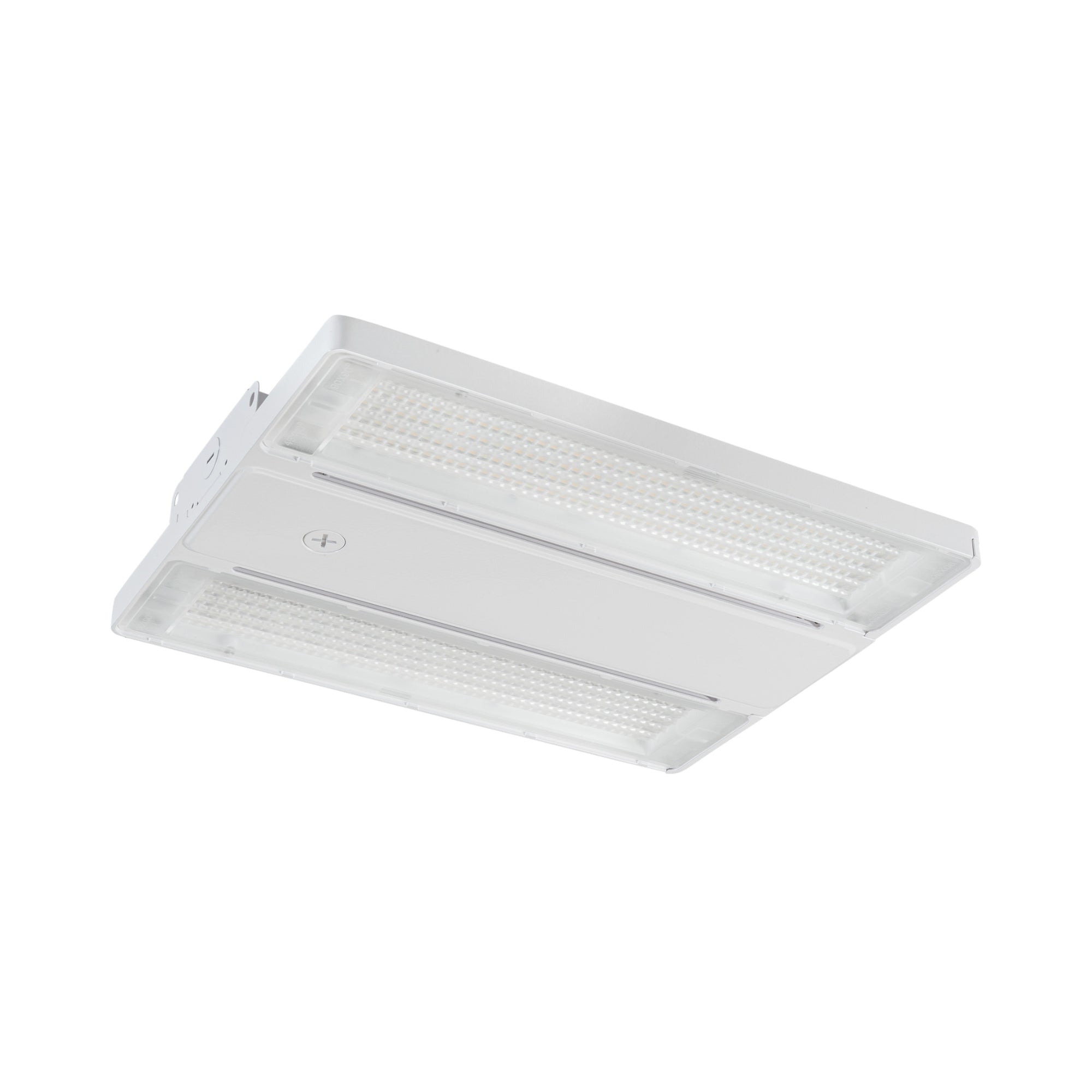

Keystone KT-HBLEDXXPSXX-XH-OSC-8CSD-VDIM /G3 XFiT OpticSwap LED Linear High Bay — 55–400W Power Select, 4000K/5000K Color Select, 120–277V, White
The Keystone XFiT G3 OpticSwap LED Linear High Bay family delivers field-selectable wattage and color temperature across four fixture sizes — from compact 1-ft 55–95W units up to 3-ft 260–400W powerhouses. Every model features Keystone’s exclusive OpticSwap technology: a tool-free interchangeable lens that rotates between a 90° standard beam and a 45° × 110° aisle beam in seconds, eliminating the need for separate fixture SKUs in mixed open-area and narrow-aisle layouts. All models include a built-in sensor receptacle, 0–10V dimming with Dim-to-off, 6kV surge protection, die-cast aluminum housing, UL 1598 damp location rating, TAA compliance, DLC Premium listing, and a 10-year limited warranty.
Model Selection
| Model | Size | Wattage (Selectable) | Max Lumens (90°) | Peak Efficacy | Replaces |
|---|---|---|---|---|---|
| KT-HBLED95PS-1H-OSC | 1-ft | 55 / 75 / 95W | 16,245 lm | 177 lm/W | 250W HID · 6-lamp F32T8 |
| KT-HBLED150PS-1H-OSC | 1-ft | 90 / 120 / 150W | 25,500 lm | 176 lm/W | 250–320W HID · 6-lamp F54T5HO |
| KT-HBLED240PS-2H-OSC | 2-ft | 160 / 200 / 240W | 41,520 lm | 177 lm/W | 400W HID · 6-lamp F54T5HO |
| KT-HBLED400PS-3H-OSC | 3-ft | 260 / 320 / 400W | 66,400 lm | 172 lm/W | 1000W HID · 8-lamp F54T5HO |
All models: CCT selectable 4000K / 5000K | CRI >80 | Voltage: 120–277V AC | Dimming: 0–10V | Rated Life: L70 >100,000 hrs @ 25°C/77°F
Key Features
- OpticSwap Technology — Tool-Free Dual-Beam Lens: Every model ships with both a standard 90° lens (installed) and a 45° × 110° aisle lens (included). Rotate between them tool-free via two clasps — one fixture SKU serves open-area and narrow-aisle applications on the same project.
- Power Select — Field-Selectable Wattage: Three wattage steps per model. Adjust on site to match ceiling height and footcandle target without re-ordering.
- Color Select — Field-Selectable CCT: 4000K / 5000K selectable on site for warehouse, inspection, gym, or retail applications.
- Built-in Sensor Receptacle: Accepts Keystone SmartPort/SmartSafe screw-in sensors and emergency drivers — no rewiring required.
- Die-Cast Aluminum Housing: Superior thermal management at all wattage levels for maximum LED life.
- Dimming: 0–10V continuous dimming, dims to 10% then Dim-to-off.
- Surge Protection: 6kV built-in.
- Location Rating: UL Listed 1598 — Damp Location.
- Operating Temperature: −20°C to +55°C (−4°F to +131°F).
- Certifications: UL Listed, DLC Premium, TAA Compliant, FCC Part 15 Class A, RoHS.
- Warranty: 10-year limited warranty.
OpticSwap Lens Technology
The OpticSwap system is included on every XFiT G3 OSC model. Two lenses ship in every box — the standard 90° lens is installed at the factory and the 45°×110° aisle lens is included loose. To swap, release two clasps, rotate the lens 180°, and secure — no tools required.
- Standard Lens (90°): Broad symmetric distribution ideal for open warehouse floors, manufacturing areas, and gymnasiums.
- Aisle Lens (45°×110°): Narrow elongated distribution optimized for rack-storage aisles, shelving rows, and conveyor lines — minimizes spill light into adjacent aisles.
Smart & Control Features
All XFiT G3 OpticSwap models include a built-in sensor receptacle for screw-in installation of Keystone SmartPort/SmartSafe sensors and controls — no rewiring required.
Sensors/Controllers (Factory- or Field-Installable):
- KTSL-FC3-12V-PKO-PIR — Smart Loop Bluetooth mesh screw-in PIR occupancy sensor with built-in fixture controller. No wiring required.
- KTSL-FC4-12V-PKO — Smart Loop Bluetooth mesh low voltage fixture controller, 12V, 0–10V Dimming.
- KTS-PIR3-12V-PKO /G2 — Smart Port PIR sensor for high bay fixtures. Preset: 1 min hold, 3 min standby at 30% dim, daylight disabled.
- KTS-MW3-12V PKO — Smart Port microwave multifunction sensor. Preset: 10 min hold, ∞ min standby at 50% dim.
- KTS-MW3-REMOTECONTROL — Remote Control for KTS-MW3 and KTS-PIR3 sensors. Field-use only.
Emergency Backup (Factory- or Field-Installable):
- KT-EMRG-LED-10BC-1000-EN3/DF — 10W, 1000 lm SmartSafe emergency backup with dual flex cables.
- KT-HBLED-EM-BR-G-KIT — Emergency LED Backup Mounting Kit. Field-installable only.
Electrical
All models use a constant-current LED driver with 0–10V continuous dimming and built-in 6kV surge protection. Power factor >0.90. THD <20%. FCC Part 15, Part B, Class A. Mercury-free, RoHS compliant. Voltage: 120–277V AC, 50/60Hz.
Construction
Die-cast aluminum housing with white powder-coat finish for superior thermal management. OpticSwap polycarbonate lens system secured via two tool-free clasps. UL 1598 Listed for damp locations. Operating temperature: −20°C to +55°C (−4°F to +131°F).
Physical Specifications
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| KT-HBLED95PS-1H-OSC | 15.00" | 12.01" | 1.89" | 6.61 lbs |
| KT-HBLED150PS-1H-OSC | 15.00" | 12.01" | 1.89" | 6.83 lbs |
| KT-HBLED240PS-2H-OSC | 20.87" | 12.01" | 1.89" | 8.82 lbs |
| KT-HBLED400PS-3H-OSC | 28.74" | 12.01" | 1.89" | 12.13 lbs |
Installation & Mounting
All models include V-hook and chain mounting hardware for suspended installation. Compatible with optional accessories (sold separately):
- KT-HBLED-WG-1G-KIT — Wire Guard Kit for 1G (95W/150W) models.
- KT-HBLED-WG-2B-KIT — Wire Guard Kit for 150W 2G models.
- KT-HBLED-WG-2G-KIT — Wire Guard Kit for 200W and 240W 2G models.
- KT-HBLED-WG-4G-KIT — Wire Guard Kit for 4G (400W) models.
- KT-HBLED-PM-1/2G-KIT — Pendant Mount Kit for 1G and 2G models.
- KT-HBLED-PM-3/4G-KIT — Pendant Mount Kit for 3G and 4G models.
- KT-HBLED-SM-1/2G-KIT — Surface Mount Kit for 1G and 2G models.
- KT-HBLED-SM-3/4G-KIT — Surface Mount Kit for 3G and 4G models.
Certifications & Rebates
- DLC Premium Listed — qualifies for utility rebate programs in most U.S. markets. Verify at designlights.org.
- UL Listed 1598 — Damp Location rated.
- TAA Compliant — eligible for U.S. government and GSA procurement.
- FCC Part 15, Class A | RoHS Compliant.
- 10-Year Limited Warranty.
Typical Applications
- Warehouses and distribution centers — 15–50+ ft mounting heights depending on wattage tier; OpticSwap aisle lens for rack-storage rows, standard lens for open floor zones.
- Manufacturing, fabrication, and industrial assembly — selectable 4000K/5000K for production floors through precision inspection areas.
- Narrow-aisle storage and high-density racking — 45°×110° aisle lens minimizes spill into adjacent aisles.
- Gymnasiums, arenas, and large recreational facilities — broad 90° lens for glare-controlled high-bay coverage.
- Big-box retail, wholesale clubs, and high-ceiling commercial showrooms.
- Government, institutional, and military facilities — TAA compliant for qualifying GSA and federal procurement.
What’s Included
- Keystone XFiT G3 OpticSwap LED Linear High Bay Fixture (model per selection, White)
- OpticSwap standard 90° lens (installed) and 45°×110° aisle lens (included)
- V-hook and chain mounting hardware
