radiant R26USBPD65LA 15A Tamper-Resistant 65W USB Type-C Power Delivery Duplex Outlet, Light Almond
Available in stock (24)
About this item
About this item
- Amperage and NEMA Configuration: Features a standard 15A 125V capacity and a NEMA 5-15R duplex configuration ideal for residential and commercial interiors.
- 65W USB Power Delivery: Features integrated 65W USB Type-C Power Delivery output to fast-charge computers, tablets, and phones directly from the outlet.
- Tamper-Resistant Protection: Equipped with internal patented safety shutters to protect users from accidental contact with live electrical terminals.
- Spec-Grade Thermoplastic Housing: Constructed from durable impact-resistant thermoplastic in a light almond finish that blends with neutral wall finishes.
- Dual Wiring Options: Built with back-wire pressure plates and side-wire screw terminals accepting up to #10 AWG solid or stranded copper conductors.
Description
Description
Legrand radiant 15A 65W USB Type-C Power Delivery Duplex Outlet — Light Almond & Tamper-Resistant

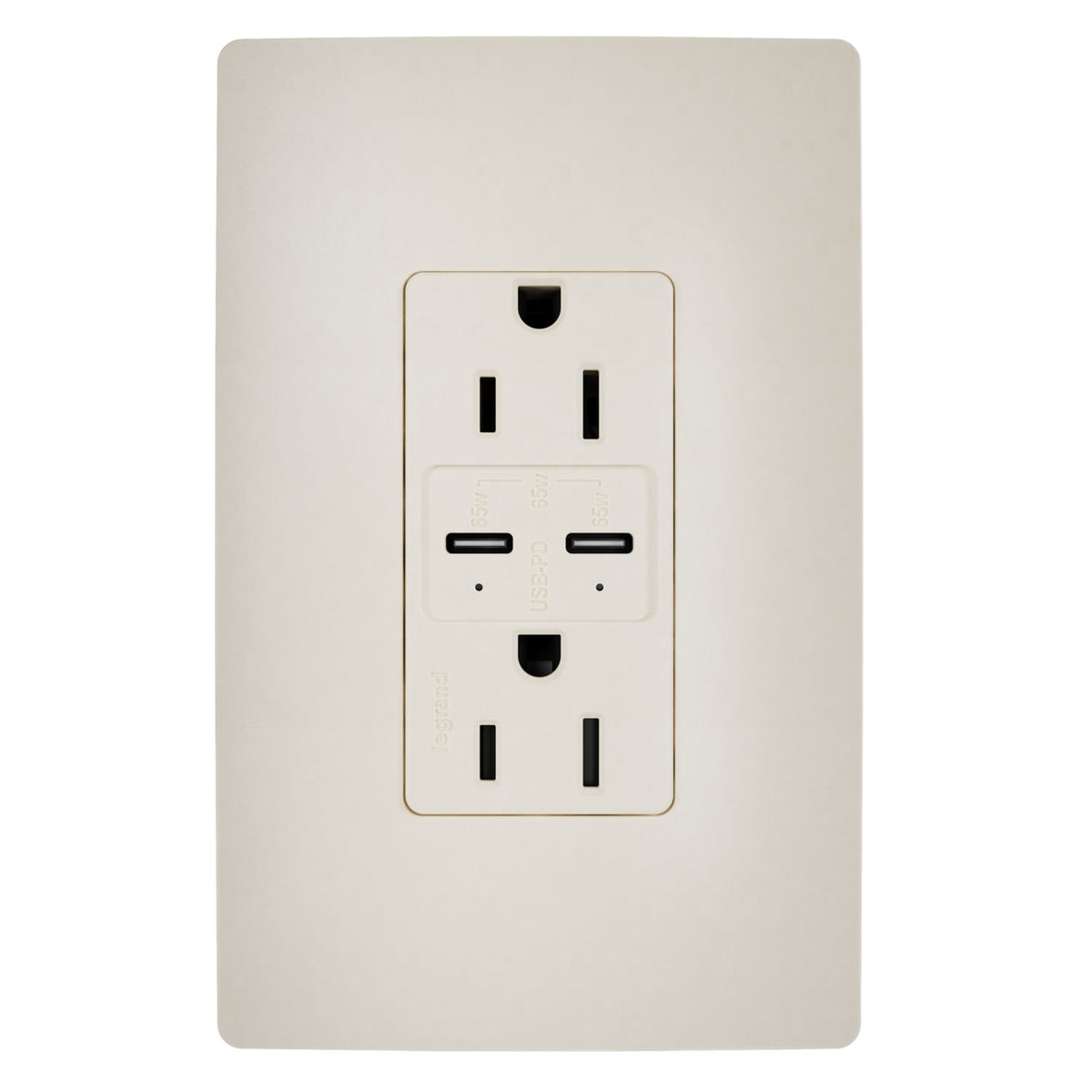

The Legrand R26USBPD65LA radiant duplex receptacle provides high-capacity device charging and reliable power delivery in a light almond finish. Rated for 15A and 125V with a NEMA 5-15R rating, this specification-grade receptacle features 65W USB Type-C Power Delivery and built-in Tamper-Resistant safety protection.
Key Features
- Voltage Rating: 125V AC
- Amperage Rating: 15A
- NEMA Configuration: NEMA 5-15R
- Tamper-Resistant: Yes
- Weather-Resistant/Outdoor: No
- Grade: Commercial/Residential Specification Grade
- Overall Dimensions: 1.43 in. W x 1.70 in. D x 4.20 in. H
- Certifications: cULus Listed to UL498 and UL1310
- USB Port Configuration: Features 1 high-speed USB Type-C charging port
- USB Power Delivery Wattage: Delivers up to 65W PD charging output
Construction & Interface
Designed with the low-profile styling of the radiant collection, this receptacle features an impact-resistant thermoplastic face in a smooth light almond shade. The matching wallplate is sold separately, offering flexiblity to match surrounding wall finishes.
Power & USB Charging
The integrated USB Type-C port delivers up to 65W Power Delivery (PD) charging performance for fast, adapter-free power to laptops and smart devices. Dual internal tamper-resistant shutters restrict access to live contacts to enhance overall facility safety.
Wiring & Installation
Engineered for quick electrician installation, the outlet features back-wire clamp plates and side-wire terminal screws that accept #14 to #10 AWG solid or stranded copper wire. A heavy-duty steel mounting strap provides rigid alignment in standard wall boxes.
Specifications
Specifications
Dimensions
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the wallplate included with the R26USBPD65LA outlet?
Is the wallplate included with the R26USBPD65LA outlet?
What is the USB charging output on the R26USBPD65LA?
What is the USB charging output on the R26USBPD65LA?
Does the R26USBPD65LA feature child safety shutters?
Does the R26USBPD65LA feature child safety shutters?
What size wire can be installed in this outlet?
What size wire can be installed in this outlet?
What is the amperage and NEMA configuration for this light almond outlet?
What is the amperage and NEMA configuration for this light almond outlet?
