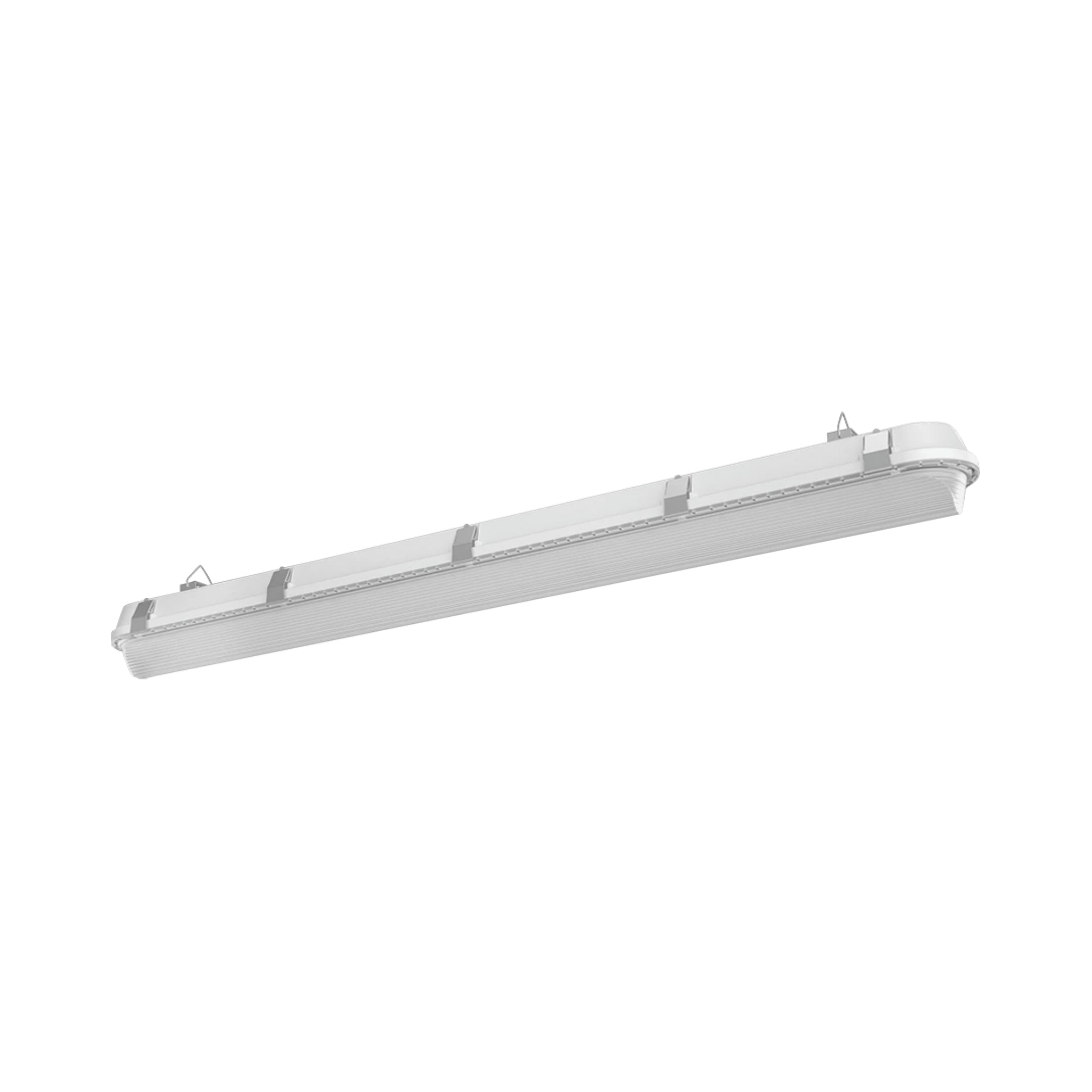

RAB SHARK4 Field-Adjustable 4ft Vapor Tight — 50W/40W/30W Selectable — 3500K/4000K/5000K — Emergency Battery Backup — White/Textured Diffuse Polycarbonate Lens

The RAB SHARK4/E is a commercial 4ft Vapor Tight field-adjustable linear washdown and strip light engineered to deliver up to 7,323 lumens with field-adjustable 50W/40W/30W power settings, switchable 3500K/4000K/5000K color temperatures, and a factory-installed 90-minute emergency battery backup. Operating on 120–277V electrical systems with 0–10V (down to 10%) continuous dimming, this luminaire provides dependable primary and egress illumination for demanding commercial and industrial spaces. Built with a UL Listed for wet locations rating, it is qualified for commercial utility rebates under DLC 5.1 Listed standards and features an impact-resistant, IP66-sealed, UL 746C F1 weatherability-rated, and NSF-certified polycarbonate washdown enclosure.

Key Features

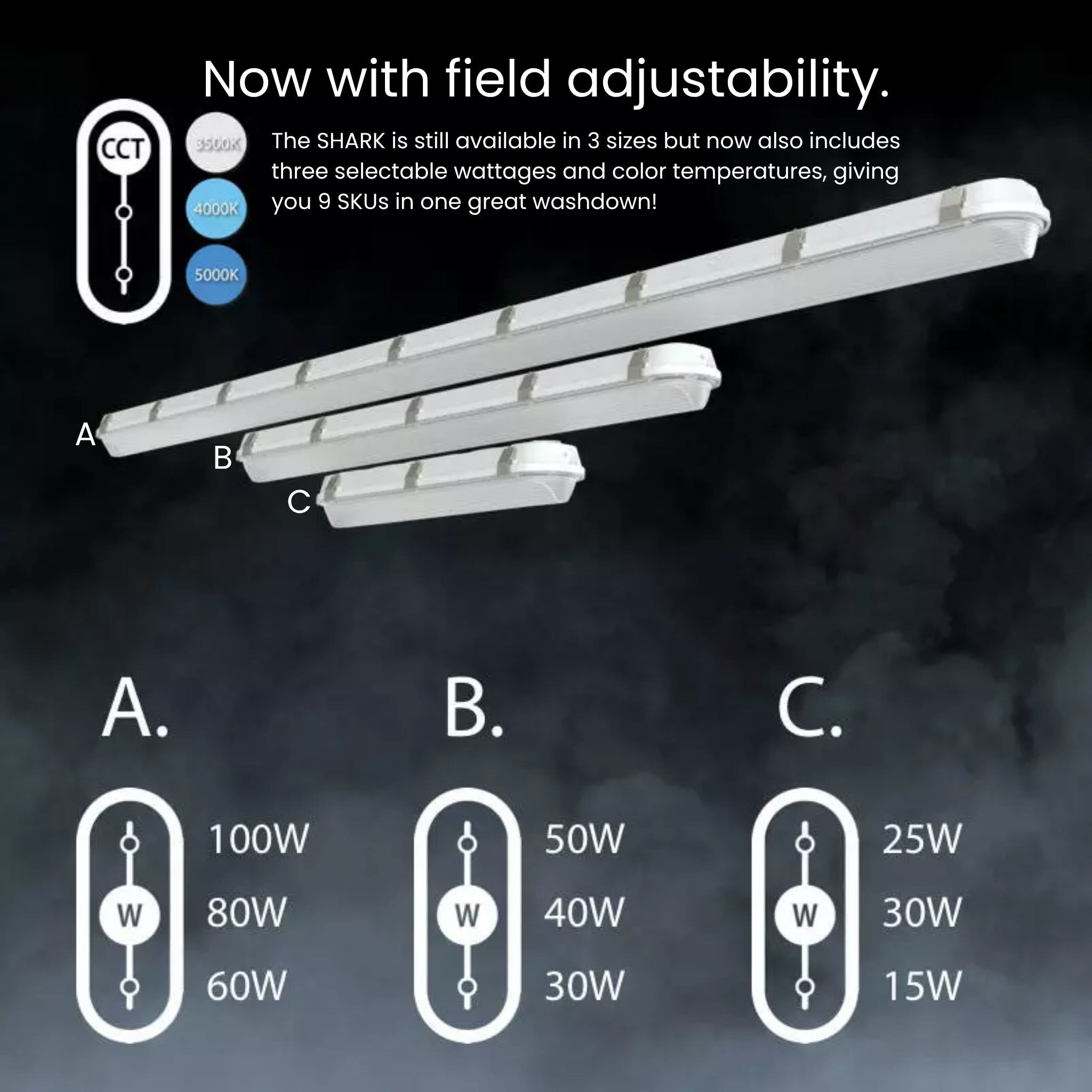

• Selectable Wattage: 50W / 40W / 30W (factory default 50W) — field-adjustable multi-wattage selectable driver for variable power settings
• Maximum Lumen Output: 7,323 lm at 50W (4000K)
• Peak Efficacy: 154.8 lm/W (at 30W / 4000K) for high-efficiency commercial operation
• CRI: 84–86 color rendering across all settings (7-step MacAdam Ellipse binning per ANSI C78.377-2017)
• Selectable CCT: 3500K / 4000K / 5000K (factory default 4000K) — field-adjustable CCT for tunable white and switchable Kelvin control
• Lens & Optics: Textured, diffuse polycarbonate lens for low glare and maximum protection
• Dimming: 0–10V continuous dimming down to 10% standard
• Voltage: Universal 120–277V AC, 50/60Hz Class 2 constant current driver
• Location Rating: UL Listed for wet locations; UL 746C F1 weatherability rated
• Operating Temperature: 32°F (0°C) to 102°F (40°C) ambient operating range for battery backup operation (-40°F (-40°C) to 104°F (40°C) standard luminaire rating)
• Certifications: DLC 5.1 Listed, UL Listed, UL 746C F1, NSF Certified, IP66, RoHS
• Rated Life: 100,000 hours (L70) per IES LM-80 and TM-21 standards
• Warranty: 5-year no-compromise warranty — RAB
• Emergency Backup: Factory-installed emergency battery backup powers the fixture for a minimum of 90 minutes during a power failure (0.207 Light Loss Factor)

Performance & Light Output

At 50W: 6,926 lm (3500K / 139.1 lm/W at 49.8W input), 7,323 lm (4000K / 150.7 lm/W at 48.6W input), 7,070 lm (5000K / 139.4 lm/W at 50.7W input). At 40W: 5,877 lm (3500K / 143.0 lm/W at 41.1W input), 6,140 lm (4000K / 153.1 lm/W at 40.1W input), 5,966 lm (5000K / 144.1 lm/W at 41.4W input). At 30W: 4,489 lm (3500K / 146.7 lm/W at 30.6W input), 4,658 lm (4000K / 154.8 lm/W at 30.1W input), 4,569 lm (5000K / 148.3 lm/W at 30.8W input).

CRI 84–86 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing.

Smart & Control Features

The SHARK4/E linear washdown vapor tight supports standard wired dimming and optional field-programmable sensing and wireless automation:

• 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V DC low-voltage control circuits. Compatible with commercial dimmers and centralized building automation systems (BAS).
• Lightcloud & Lightcloud Blue Wireless Control (Optional Configurations): Available in Lightcloud Enterprise and Lightcloud Blue Bluetooth mesh configurations for wireless dimming, ON/OFF control, color tuning, schedules, and SmartShift via mobile app.

Compatible sensor options in the SHARK family include Passive Infrared (/PIR/E, max 40 ft mounting height, 40 ft detection diameter) and Microwave (/MVS/E, max 50 ft mounting height, 50 ft detection diameter), as well as PIR20[B][/LCB] and MVS20[B][/LCB] sensors (20 ft detection diameter mounted at 9 ft, sold separately). Field adjustments for non-Lightcloud sensors require the handheld multi-sensor remote control (catalog # MSR1, sold separately).

Electrical

Powered by a Class 2 constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor of 99.9% at 120V (97.7% at 277V) and Total Harmonic Distortion (THD) of 2.80% at 120V (3.03% at 277V). Integrated 2kV surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads.

Emergency Battery Backup: Includes a factory-installed emergency battery backup driver that powers the fixture for a minimum of 90 minutes in the event of a primary power failure. Rated for a Battery Backup Light Loss Factor of 0.207 (typical tolerance +/- 10%) and an ambient operating temperature of 32°F (0°C) to 102°F (40°C).

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

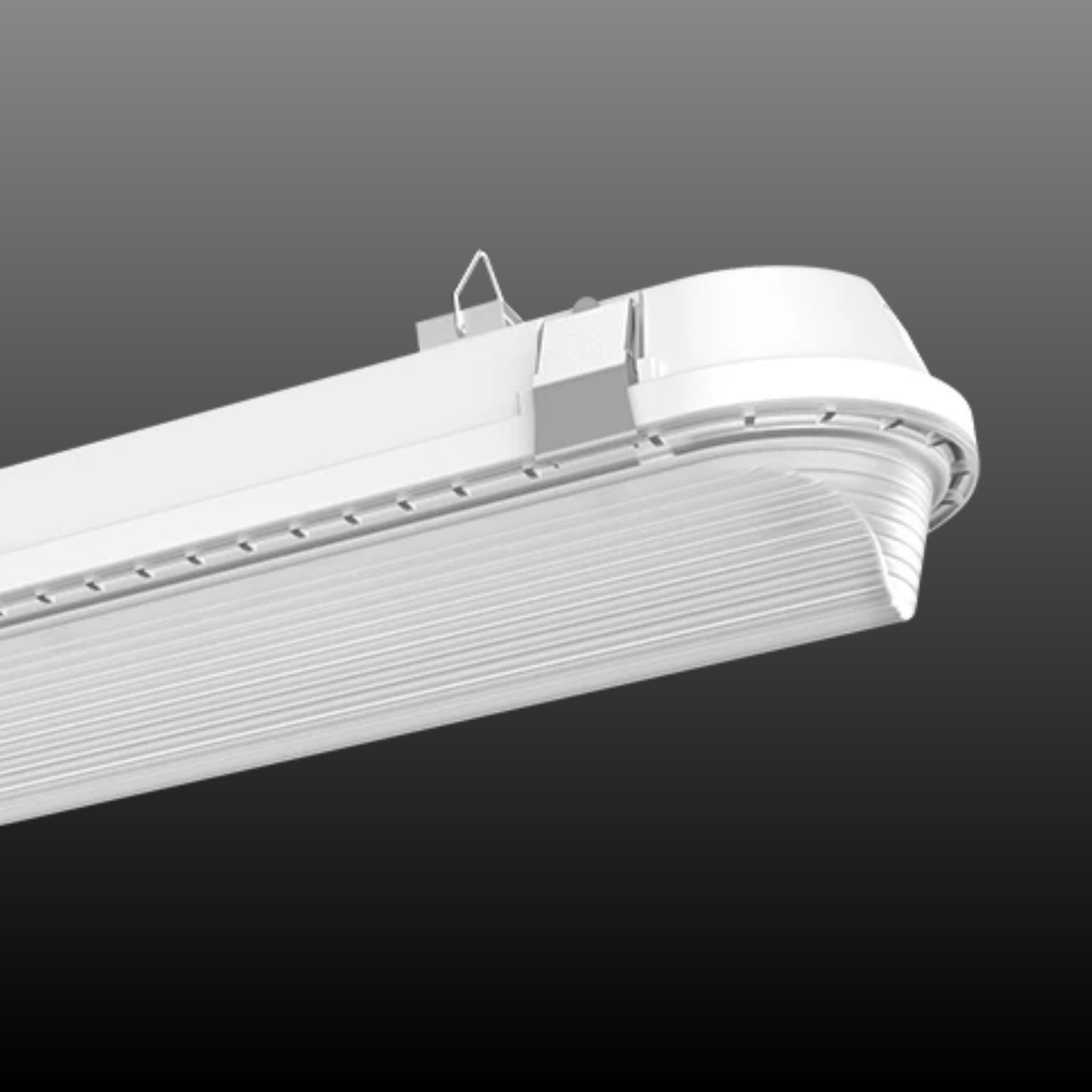

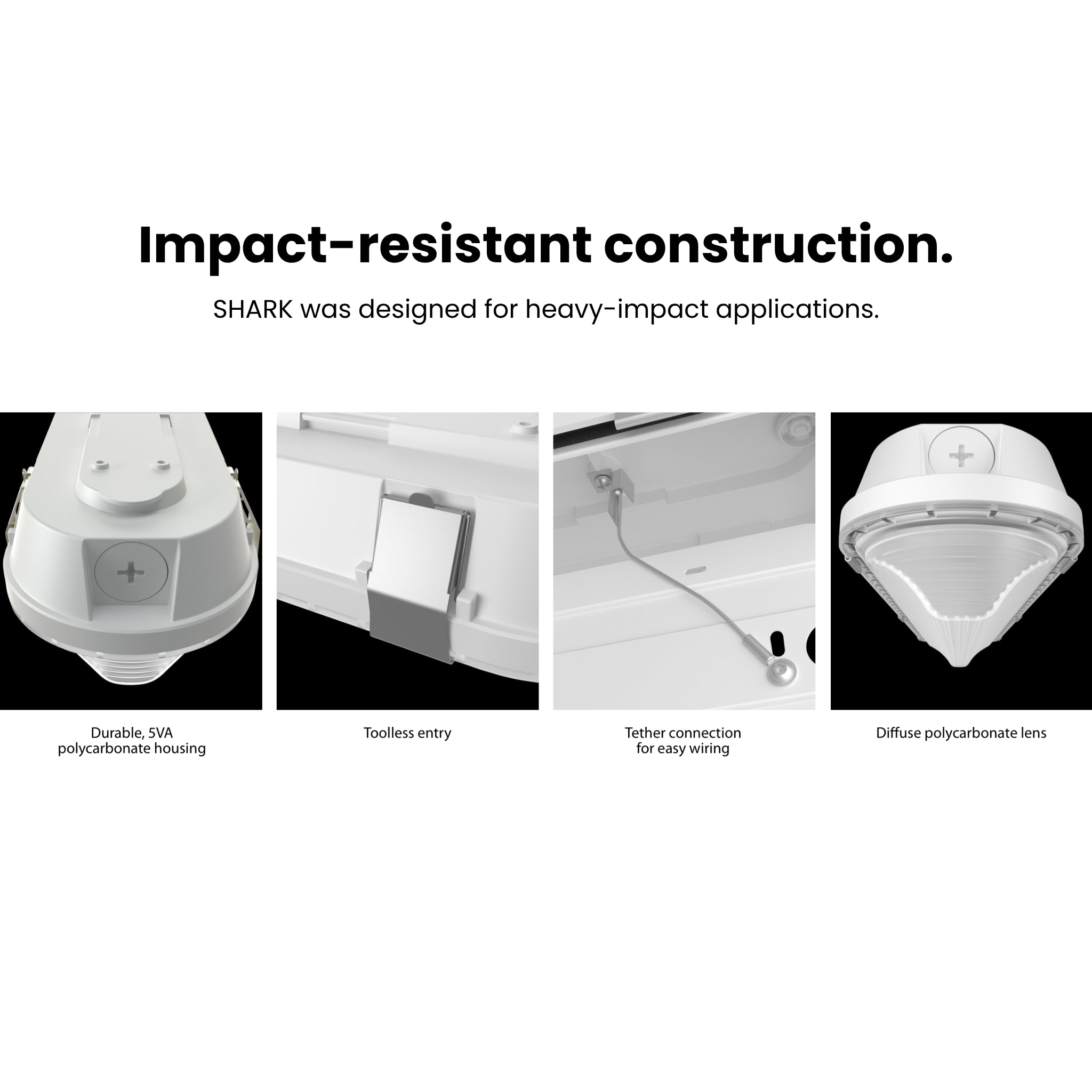

Durability & Impact Protection: Impact-resistant polycarbonate housing sealed with a continuous silicone foam gasket engineered for thermal dissipation, paired with UL 746C F1 weatherability rating for UV resistance, water exposure, and extreme temperature conditions, plus NSF certification for public health and safety sanitation environments.

Ingress Protection: IP66 rated for complete protection against airborne dust, splashing water, and hose-directed washdown sprays.

Operating Temperature: Minimum starting temperature of 32°F (0°C) for battery backup operation (-40°F (-40°C) standard luminaire cold weather starting); operating ambient temperature range of 32°F (0°C) to 102°F (40°C) for battery backup models (up to 104°F (40°C) for standard non-battery operation).

Lens & Optics: Textured, diffuse polycarbonate lens for low glare and maximum protection.

Finish: White finish formulated for high durability and long-lasting color resistance against corrosion and surface wear.

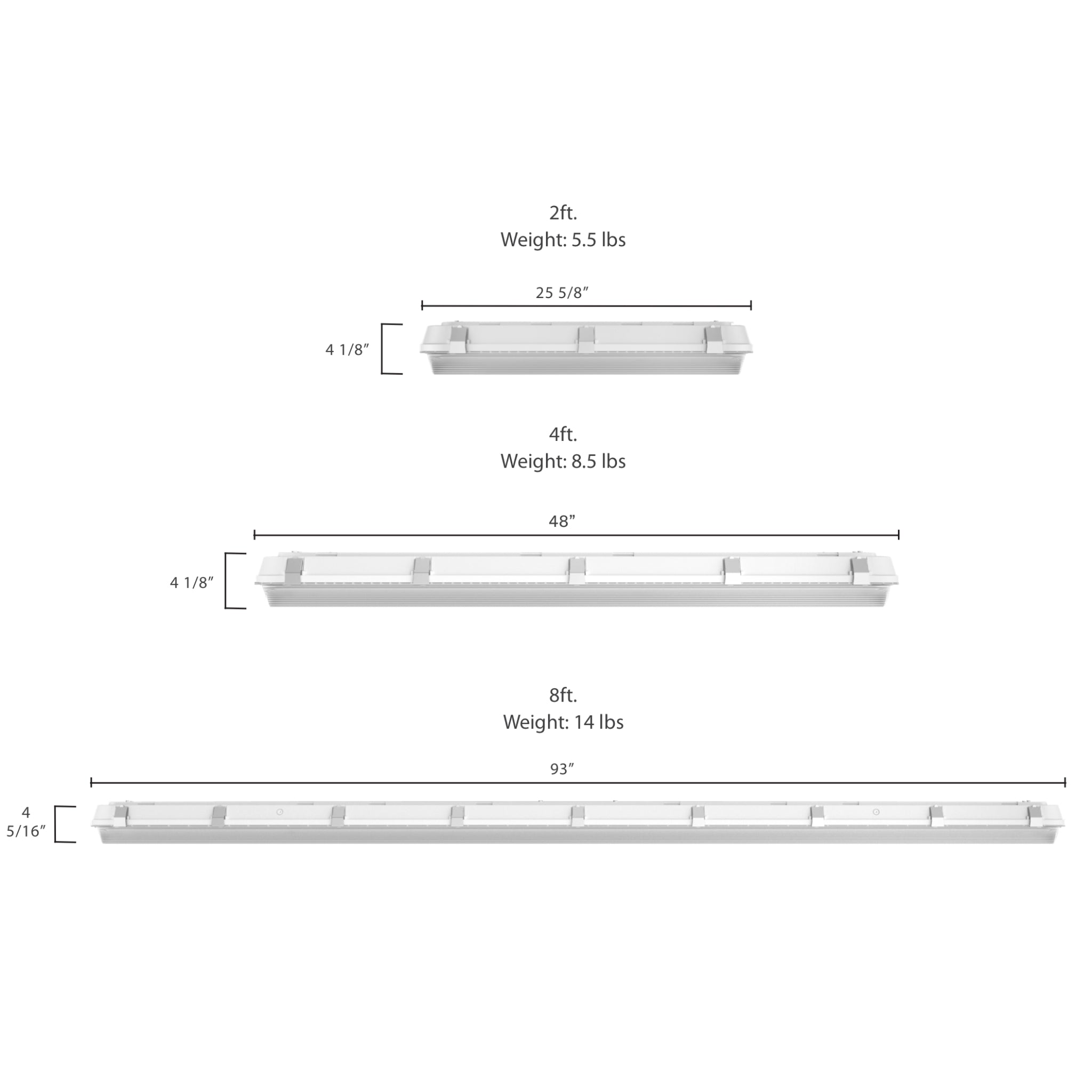

Dimensions & Weight: 48.00" L × 5.50" W × 4.13" H (48" L × 5 1/2" W × 4 1/8" H). Fixture weight: 13.11 lbs.

Installation & Mounting

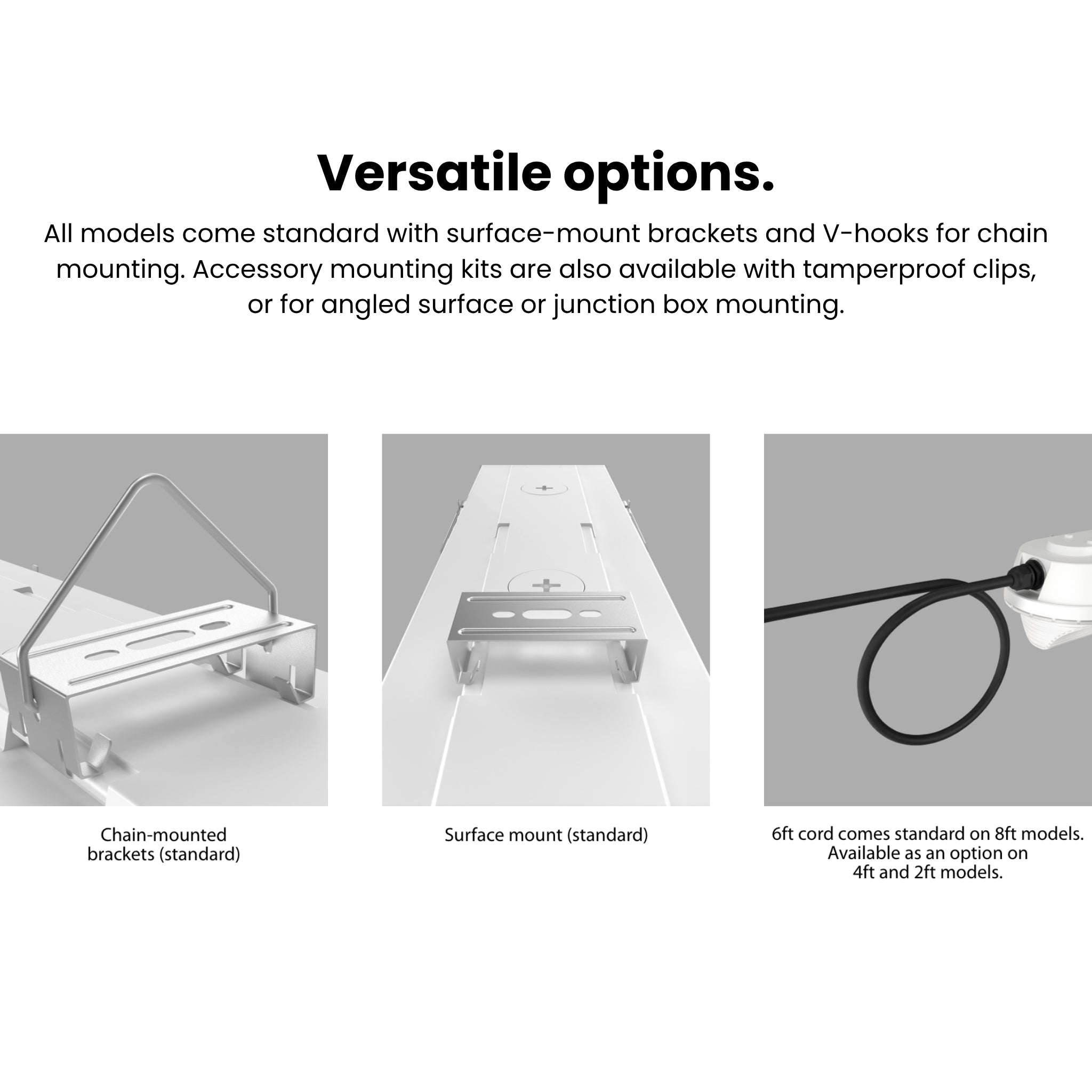

Standard Mounting: Supplied standard with stainless steel surface-mount brackets for direct ceiling or wall mounting and stainless steel V-hooks for suspended chain mounting.

Accessories (Sold Separately):

• Mounts: ANGSHARK-G2 (2–4ft Angular Stainless Steel Corner Bracket, sold separately), JBSHARK-G2 (2ft/4ft J-Box Stainless Steel Mounting Plate with Gasket, sold separately), TPKSHARK-G2 (2ft/4ft Stainless Steel Tamperproof Kit Bracket, sold separately)
• Sensors & Controls: MSR1 (Multi-Sensor Remote Control IP20, sold separately); PIR20[B][/LCB] and MVS20[B][/LCB] sensors (sold separately)

Certifications & Rebates

• DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID S-QEWAXU, S-ICZWTG, S-V8PXFE (or model SHARK4/E).
• UL Listed: Certified for wet locations; UL 746C F1 weatherability rated for UV resistance, water exposure, and extreme temperature conditions.
• NSF: NSF certified for public health and safety splash zones.
• RoHS Compliant: Mercury and UV free; engineered with RoHS-compliant components free of hazardous substances.

Typical Applications

• Food & Beverage Processing Areas — NSF certification, IP66 sealing, and 90-minute battery backup maintain sanitation compliance and emergency egress lighting.
• Commercial Kitchens & Prep Corridors — Wet location rating and silicone foam gasketing protect internal components against steam, grease, and washdown sprays.
• Stairwells & Egress Passageways — DLC-listed stairwell classification and integrated emergency battery backup ensure code-compliant life-safety illumination during power outages.
• Car Washes & Service Bays — Impact-resistant polycarbonate housing and textured diffuse lens resist water spray, humidity, and accidental tool impacts.
• Parking Garages & Covered Walkways — UL 746C F1 weatherability rating withstands UV exposure and moisture in semi-exposed commercial structures.

What's Included

• RAB SHARK4/E 4ft Field-Adjustable Linear Washdown Vapor Tight with Emergency Battery Backup — White
• Stainless steel surface-mount brackets and V-hooks for chain mounting
• Installation and operation manual
