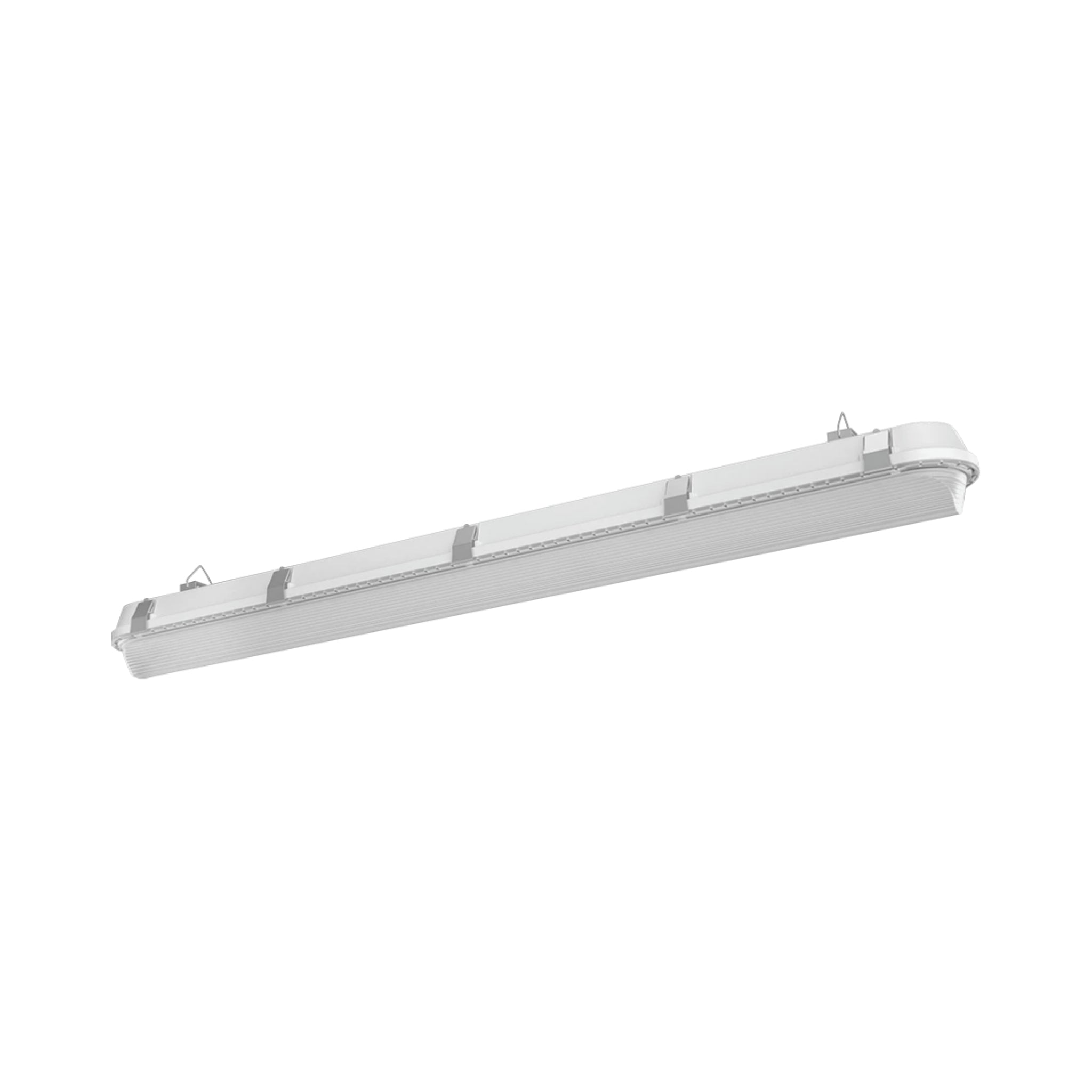

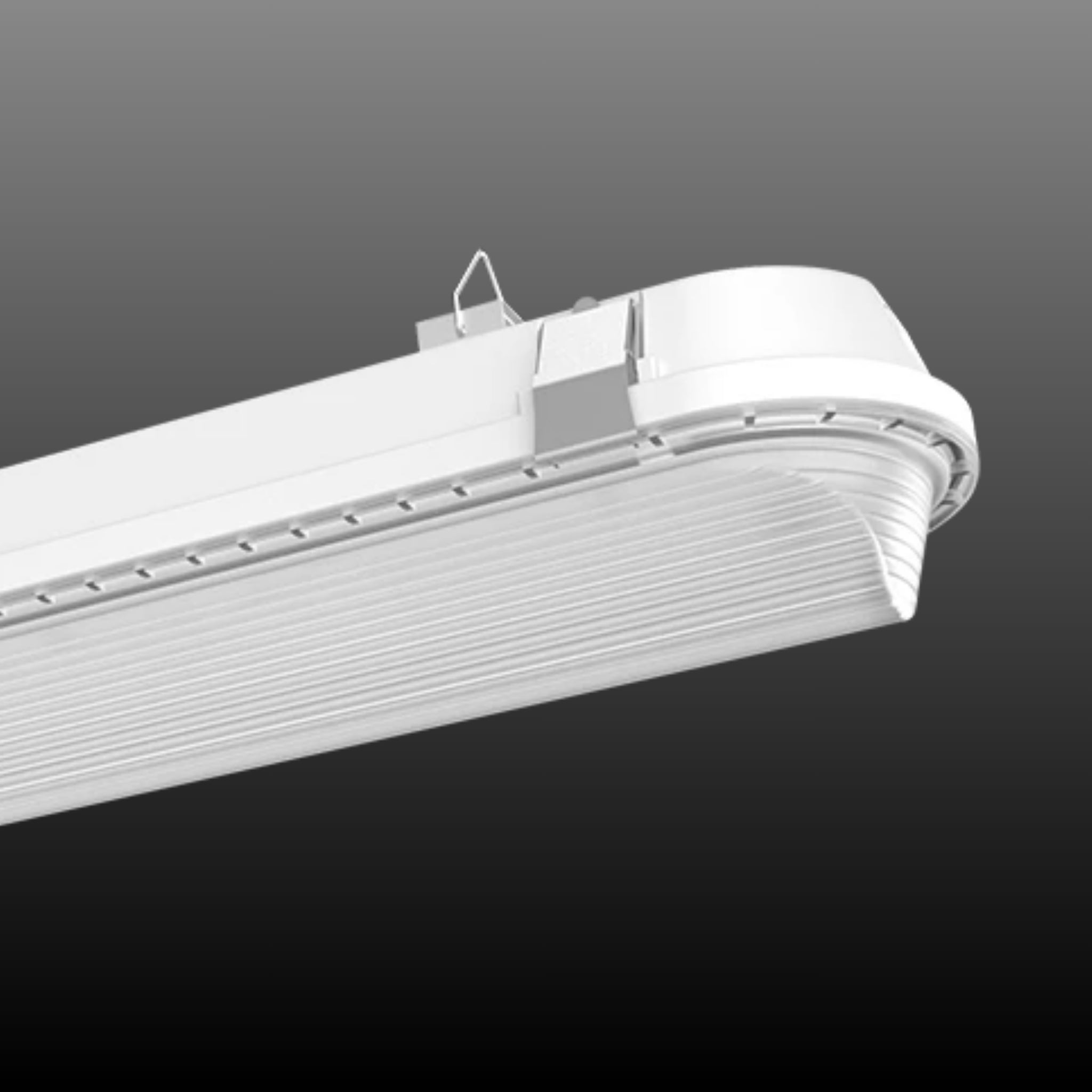

RAB SHARK4 Field-Adjustable 4ft Vapor Tight — 50W/40W/30W Selectable — 3500K/4000K/5000K — Microwave Occupancy Sensor — White/Textured Diffuse Polycarbonate Lens

The RAB SHARK4/MVS is a commercial 4ft Vapor Tight field-adjustable linear washdown and strip light engineered to deliver up to 7,323 lumens with field-adjustable 50W/40W/30W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on 120–277V electrical systems with 0–10V (down to 10%) continuous dimming, this luminaire provides durable illumination for demanding commercial and industrial environments. Equipped with a factory-installed Microwave Occupancy Sensor (MVS, up to 50 ft mounting height and 50 ft detection diameter), it automates occupancy and daylight harvesting out of the box. Built with a UL Listed for wet locations rating, it is qualified for commercial utility rebates under DLC 5.1 Listed standards and features an impact-resistant, IP66-sealed, UL 746C F1 weatherability-rated, and NSF-certified polycarbonate washdown enclosure.

Key Features

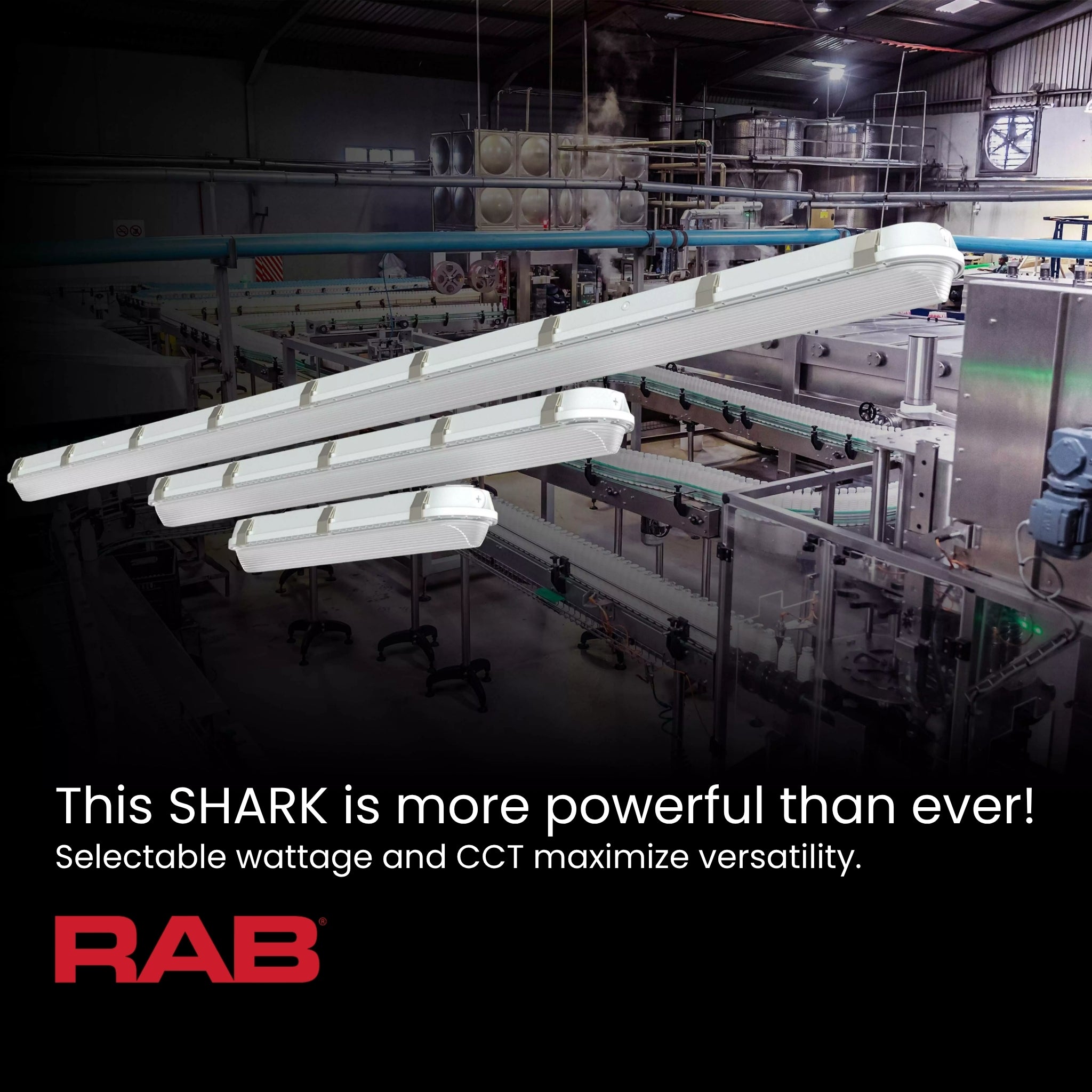

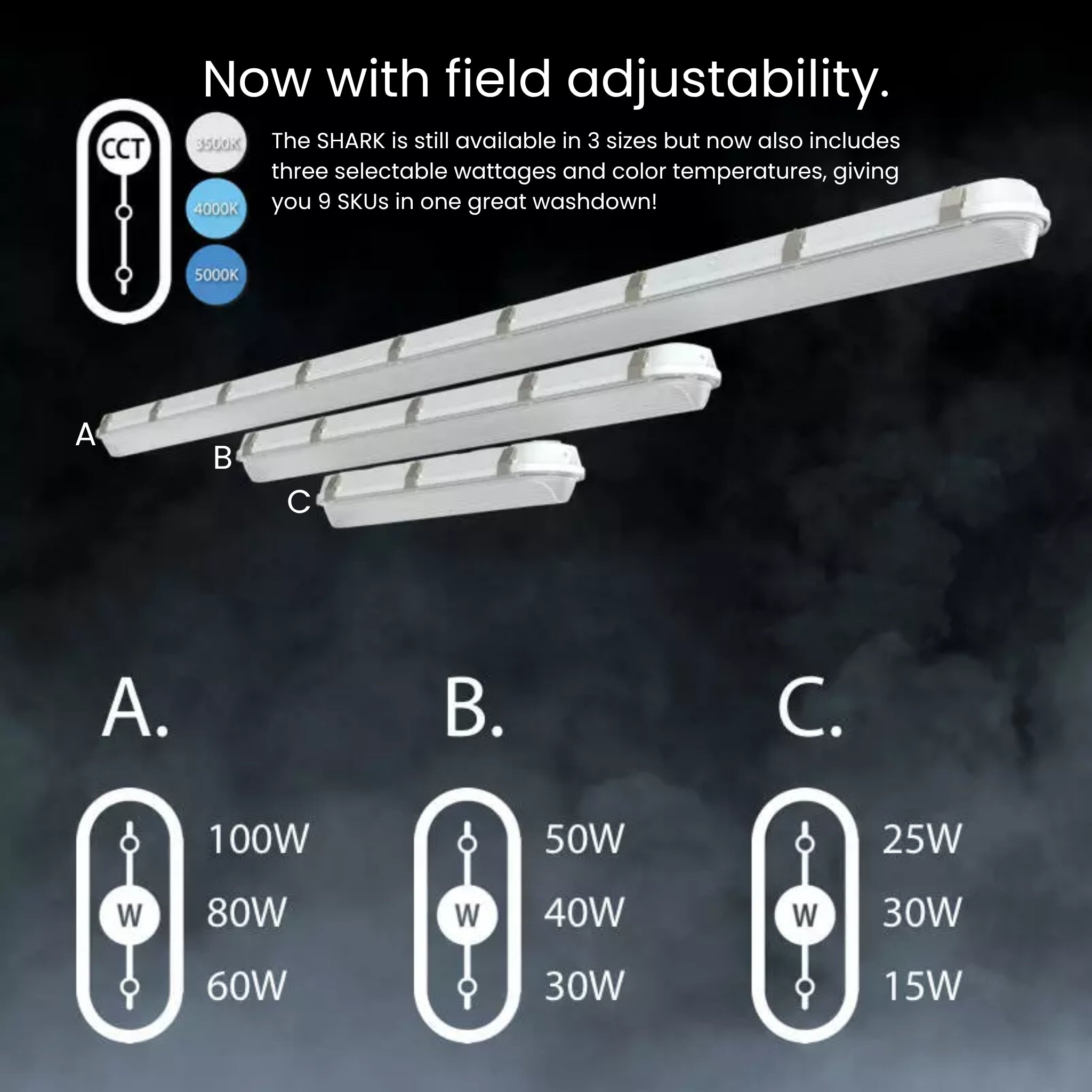

• Selectable Wattage: 50W / 40W / 30W (factory default 50W) — field-adjustable multi-wattage selectable driver for variable power settings
• Maximum Lumen Output: 7,323 lm at 50W (4000K)
• Peak Efficacy: 154.8 lm/W for high-efficiency commercial operation
• CRI: 83–86 color rendering across all settings (7-step MacAdam Ellipse binning per ANSI C78.377-2017)
• Selectable CCT: 3500K / 4000K / 5000K (factory default 4000K) — field-adjustable CCT for tunable white and switchable Kelvin control
• Lens & Optics: Textured, diffuse polycarbonate lens for low glare and maximum protection
• Dimming: 0–10V continuous dimming down to 10% standard
• Voltage: Universal 120–277V AC, 50/60Hz Class 2 constant current driver
• Location Rating: UL Listed for wet locations; UL 746C F1 weatherability rated
• Operating Temperature: -40°F (-40°C) to 104°F (40°C) ambient operating range
• Certifications: DLC 5.1 Listed, UL Listed, UL 746C F1, NSF Certified, IP66, RoHS
• Rated Life: 100,000 hours (L70) per IES LM-80 and TM-21 standards
• Warranty: 5-year no-compromise warranty — RAB
• Occupancy Sensor: Factory-installed Microwave Occupancy Sensor (MVS) with 50 ft max mounting height and 50 ft detection diameter

Performance & Light Output

At 50W: 6,926 lm (3500K / 139.1 lm/W at 49.8W input), 7,323 lm (4000K / 150.7 lm/W at 48.6W input), 7,070 lm (5000K / 139.4 lm/W at 50.7W input). At 40W: 5,877 lm (3500K / 143.0 lm/W at 41.1W input), 6,140 lm (4000K / 153.1 lm/W at 40.1W input), 5,966 lm (5000K / 144.1 lm/W at 41.4W input). At 30W: 4,489 lm (3500K / 146.7 lm/W at 30.6W input), 4,658 lm (4000K / 154.8 lm/W at 30.1W input), 4,569 lm (5000K / 148.3 lm/W at 30.8W input).

CRI 83–86 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing.

Smart & Control Features

The SHARK4/MVS linear washdown luminaire includes a factory-installed Microwave Occupancy Sensor (MVS) and supports standard 0–10V wired dimming:

• 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V DC low-voltage control circuits. Compatible with commercial dimmers and centralized building automation systems (BAS).
• Integrated Microwave Occupancy Sensor (/MVS): Operates on 12VDC (30mA, 50/60Hz) with a 50 ft maximum mounting height and 50 ft detection diameter at 50 ft mounting height (-40°F (-20°C) to 140°F (60°C) sensor operating range). Default settings: Motion Sensitivity High, Brightness 100%, Hold Time 20 minutes, Standby to Dim 20%, Standby Time 1 minute, When Vacant Off, Daylight Disabled.

Adjustable sensor settings—including standby dimming level (10%/20%/30%/50%), standby time (0s/10s/30s/1min/5min/10min/30min/60min/+∞), and daylight threshold (2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable)—require the handheld multi-sensor remote control (catalog # MSR1, sold separately). Also available in Lightcloud and Lightcloud Blue wireless mesh configurations (sold separately).

Electrical

Powered by a Class 2 constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor of 99.9% at 120V (97.7% at 277V) and Total Harmonic Distortion (THD) of 2.80% at 120V (3.03% at 277V). Integrated 2kV surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads.

Emergency Battery Backup: Available in `/E` battery backup configurations (120–277V models, sold separately) to provide a minimum of 90 minutes of standby illumination during a primary power failure (32°F (0°C) to 102°F (40°C) battery operating range; Battery Backup Light Loss Factor: 0.207).

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

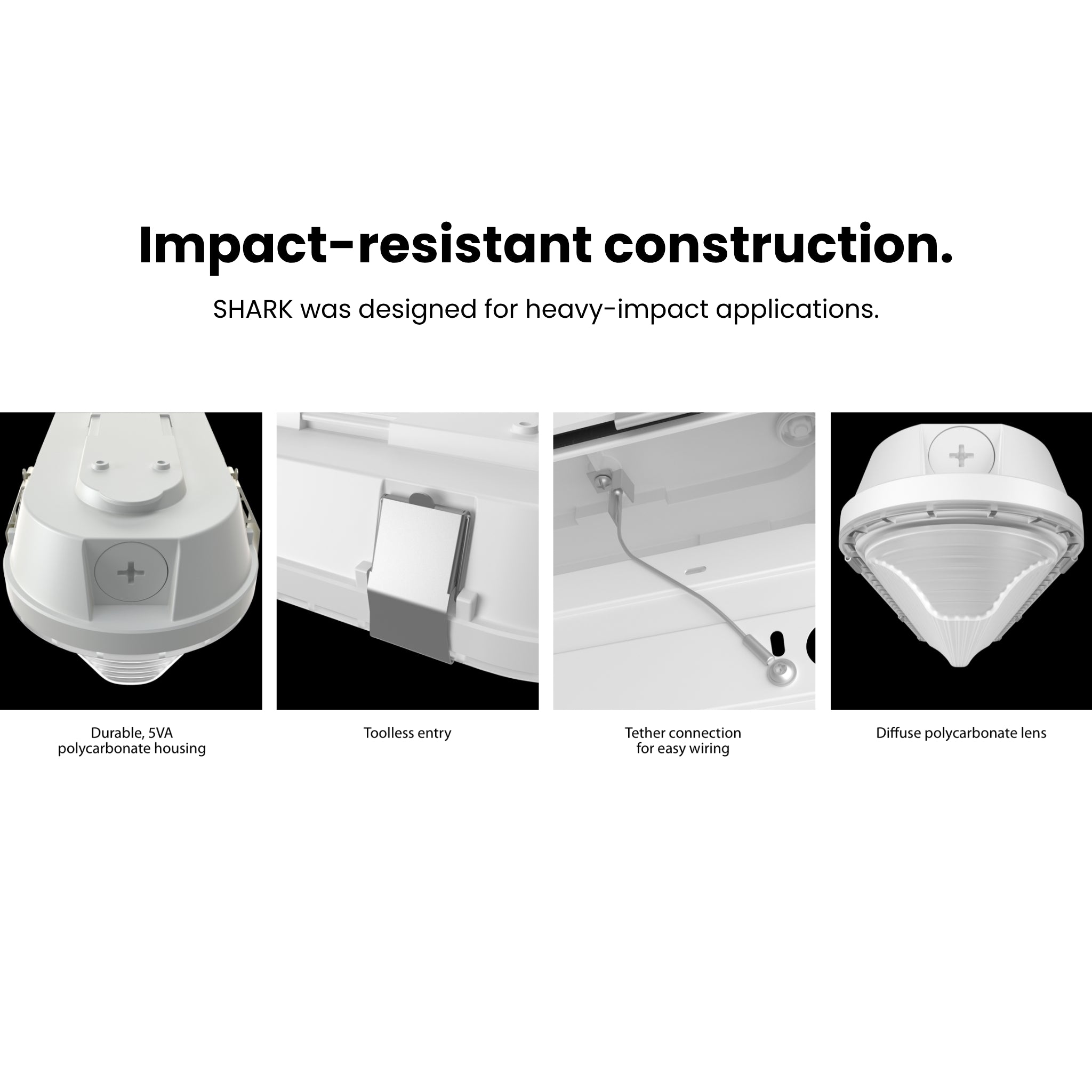

Durability & Impact Protection: Impact-resistant polycarbonate housing sealed with a continuous silicone foam gasket engineered for thermal dissipation, paired with UL 746C F1 weatherability rating (for UV resistance, water exposure, and extreme temperature conditions) and NSF certification for public health and safety sanitation environments.

Ingress Protection: IP66 rated for complete protection against airborne dust and hose-directed water ingress.

Operating Temperature: Cold weather starting at -40°F (-40°C); operating ambient temperature range of -40°F (-40°C) to 104°F (40°C).

Lens & Optics: Textured, diffuse polycarbonate lens for low glare and maximum protection.

Finish: White finish formulated for high durability and long-lasting color resistance against corrosion and surface wear.

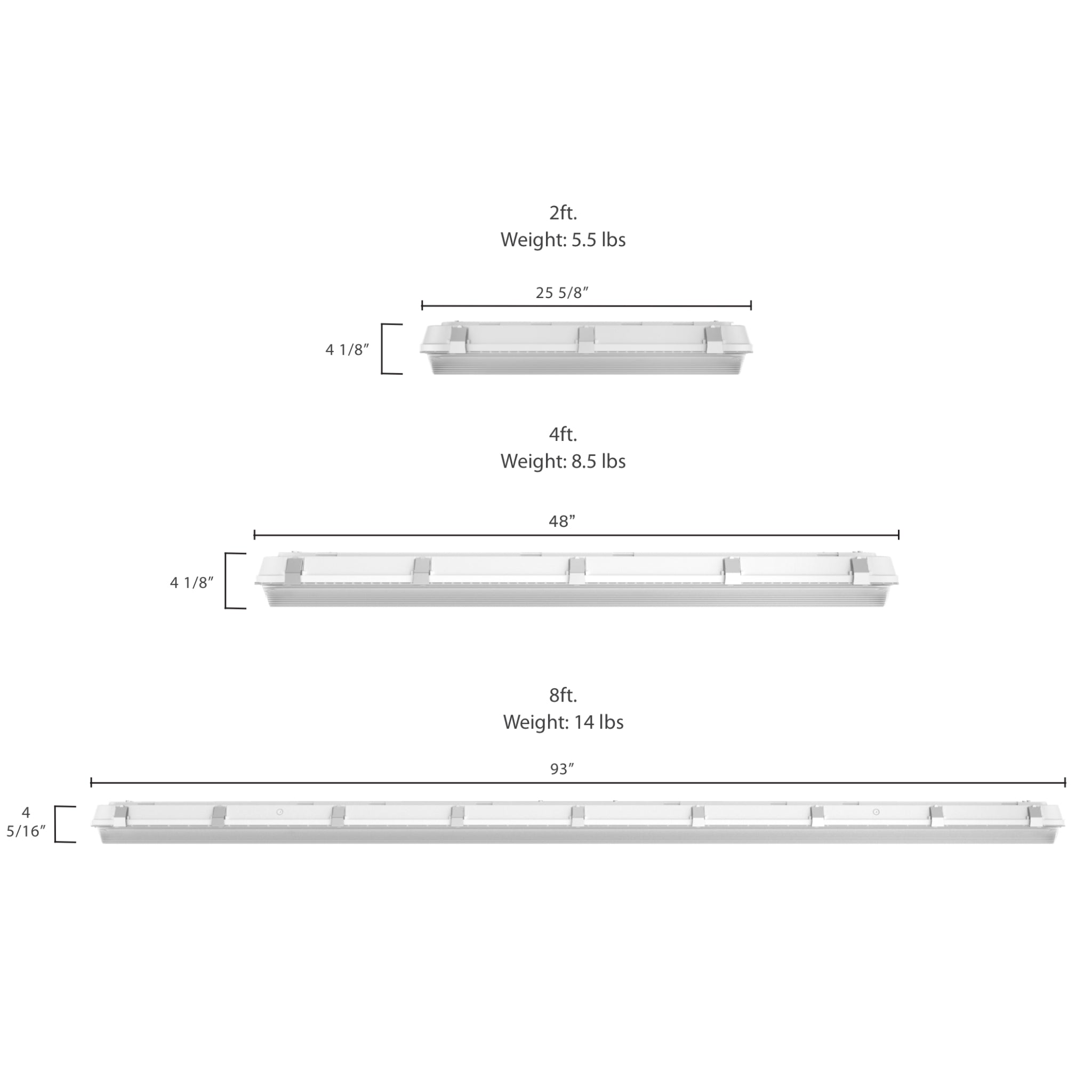

Dimensions & Weight: 48.00" L × 5.50" W × 4.13" H (48" L × 5 1/2" W × 4 1/8" H). Fixture weight: 13.11 lbs.

Installation & Mounting

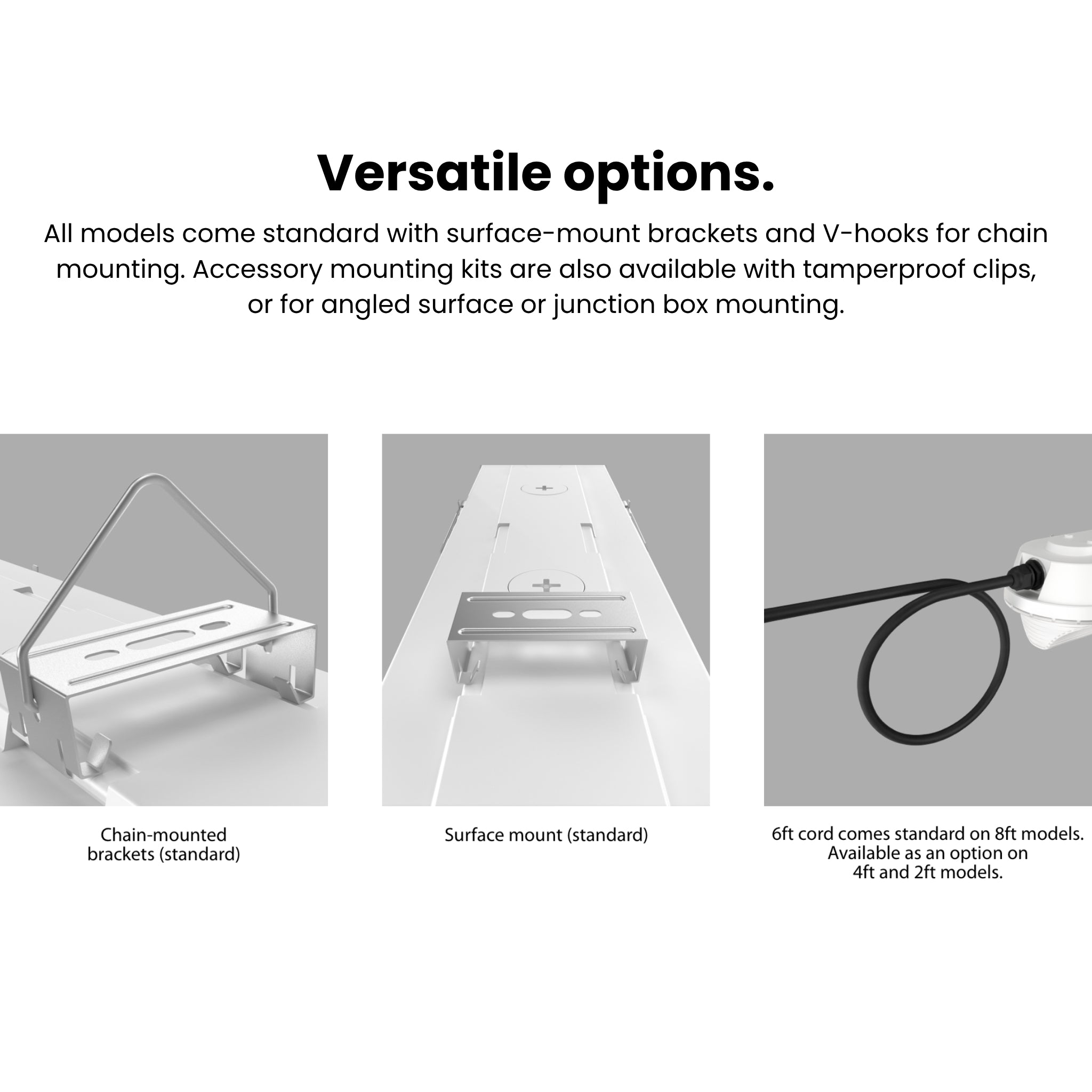

Standard Mounting: Supplied standard with stainless steel surface-mount brackets and V-hooks for suspended chain mounting.

Accessories (Sold Separately):

• Mounts: ANGSHARK-G2 (2–4ft Angular Stainless Steel Corner Bracket, sold separately), JBSHARK-G2 (2ft/4ft J-Box Stainless Steel Mounting Plate with Gasket, sold separately), TPKSHARK-G2 (2ft/4ft Stainless Steel Tamperproof Kit Bracket, sold separately)
• Sensors & Controls: MSR1 (Multi-Sensor Remote Control IP20, sold separately); PIR20[B][/LCB] and MVS20[B][/LCB] sensors (sold separately)
• Emergency Battery Backup: Available in factory-configured `/E` battery backup models (90-minute emergency battery backup on 120–277V models, sold separately)

Certifications & Rebates

• DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID S-QEWAXU, S-ICZWTG, S-V8PXFE (or model SHARK4/MVS).
• UL Listed: Certified for wet locations; UL 746C F1 weatherability rated for UV resistance, water exposure, and extreme temperature conditions.

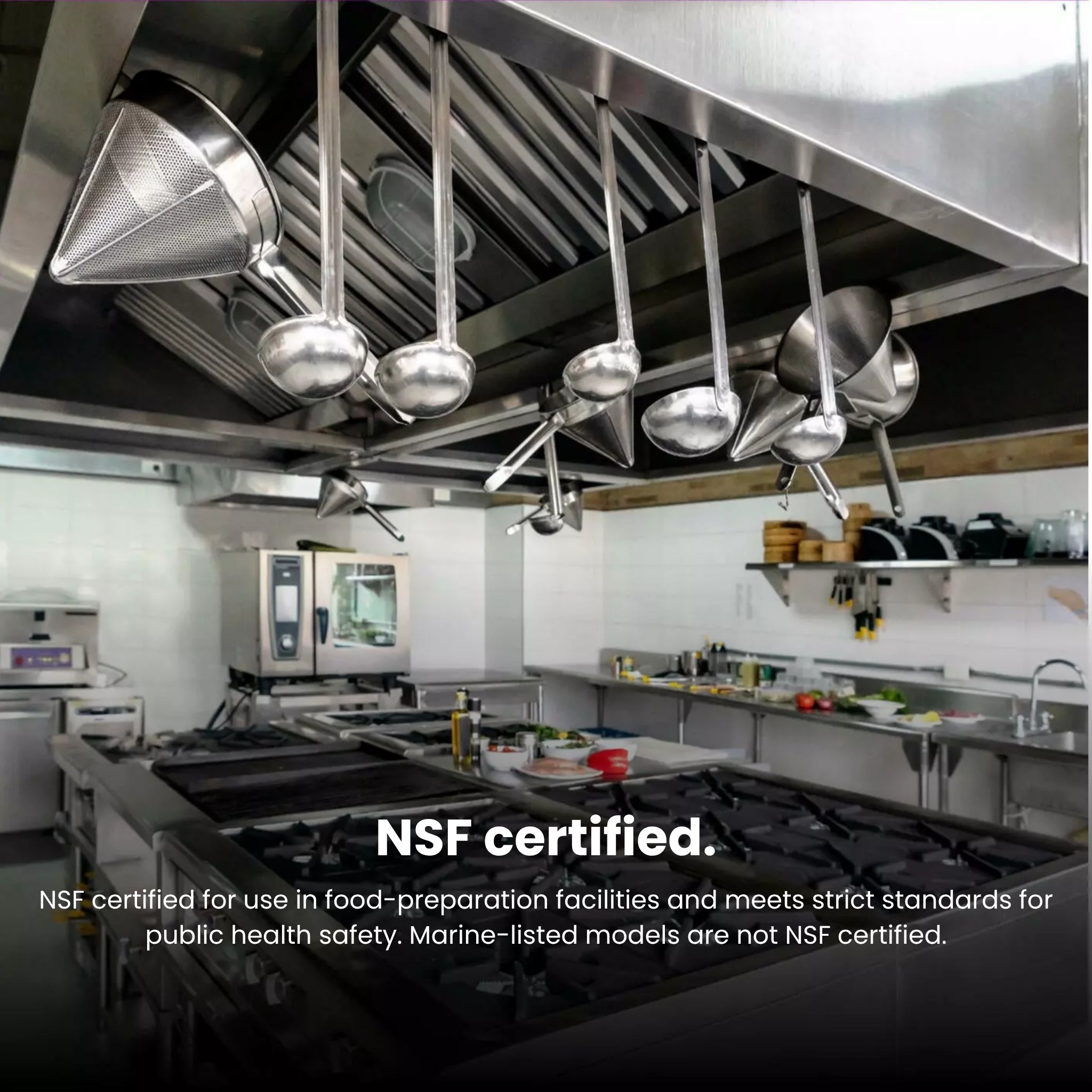

• NSF: NSF certified for public health and safety sanitation environments.
• RoHS Compliant: Mercury and UV free; engineered with RoHS-compliant components free of hazardous substances.

Typical Applications

• Food & Beverage Processing Areas — NSF certification and IP66 sealing withstand sanitation splashdowns and frequent cleaning.
• Commercial Kitchens & Walk-In Coolers — Reliable -40°F (-40°C) cold weather starting and wet location rating ensure dependable operation in refrigerated storage.
• Car Washes & Service Bays — Impact-resistant polycarbonate housing with a silicone foam gasket protects internal LED arrays against water spray and humidity.

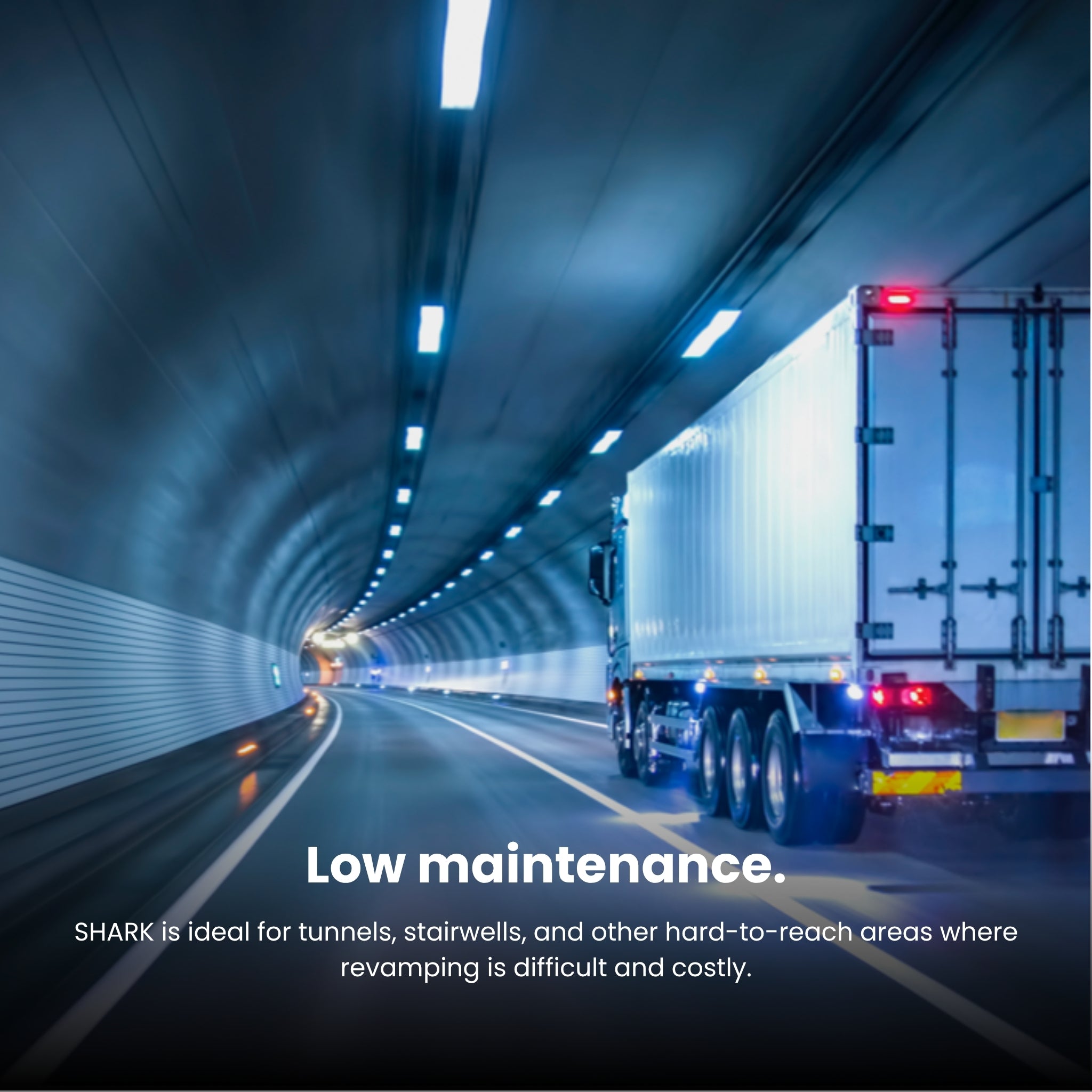

• Stairwells, Passageways & Utility Corridors — Low-glare textured diffuse polycarbonate lens and field-adjustable lumen output provide uniform ambient illumination.
• Parking Garages & Covered Canopies — UL 746C F1 weatherability rating resists UV exposure, moisture, and temperature fluctuations in semi-exposed structures.

What's Included

• RAB SHARK4/MVS 4ft Field-Adjustable Linear Washdown Vapor Tight with Microwave Occupancy Sensor — White
• Stainless steel surface-mount brackets and V-hooks for chain mounting
• Installation and operation manual
