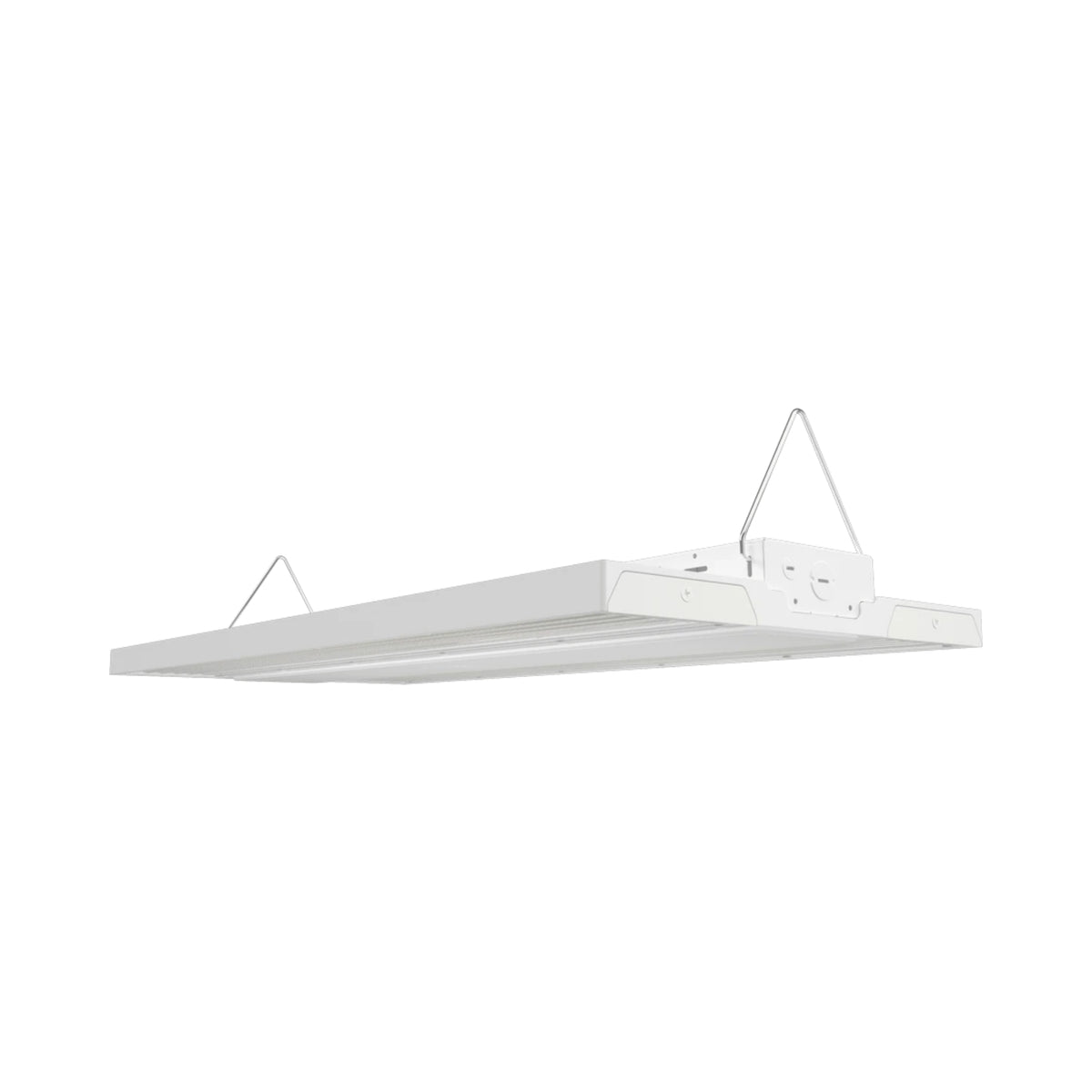

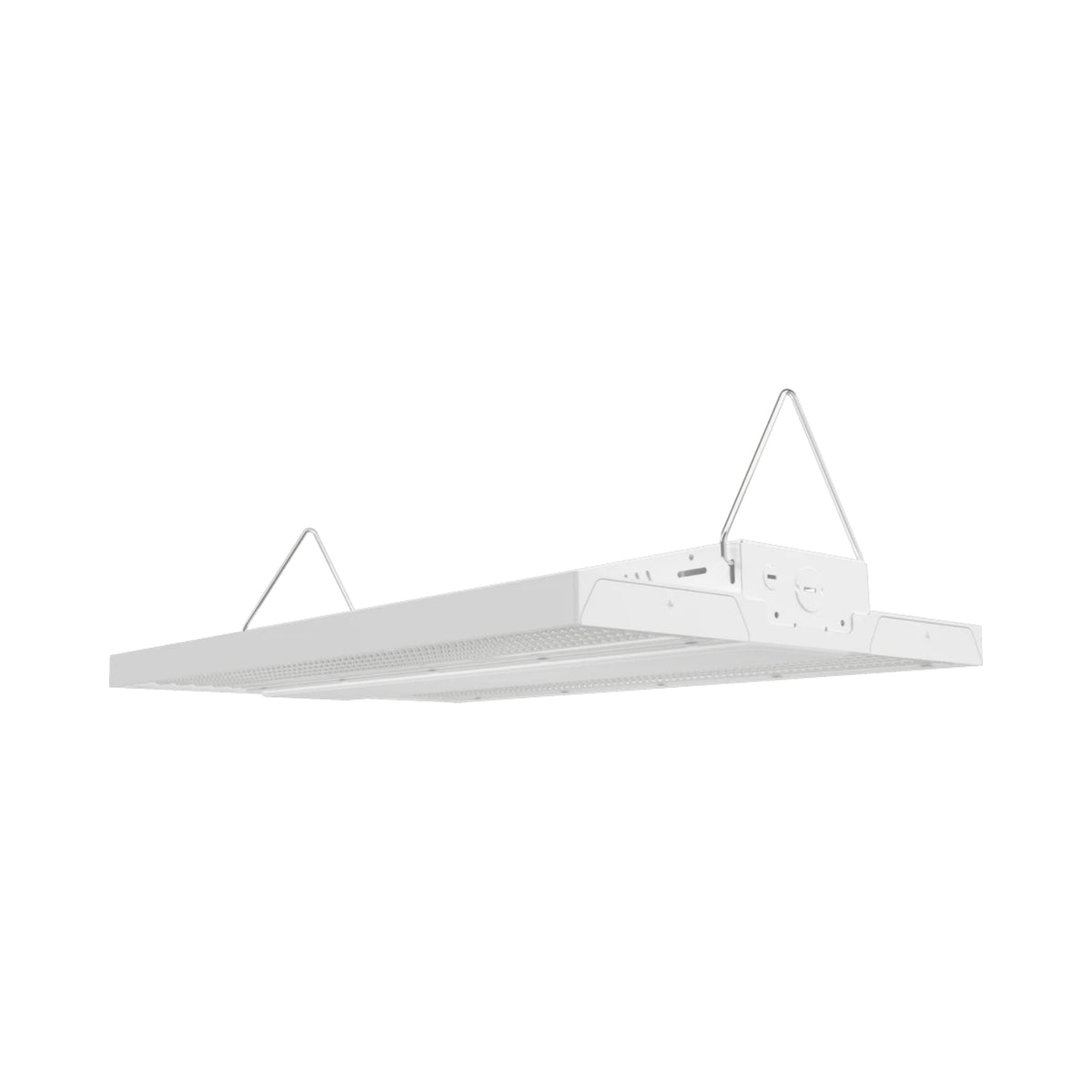

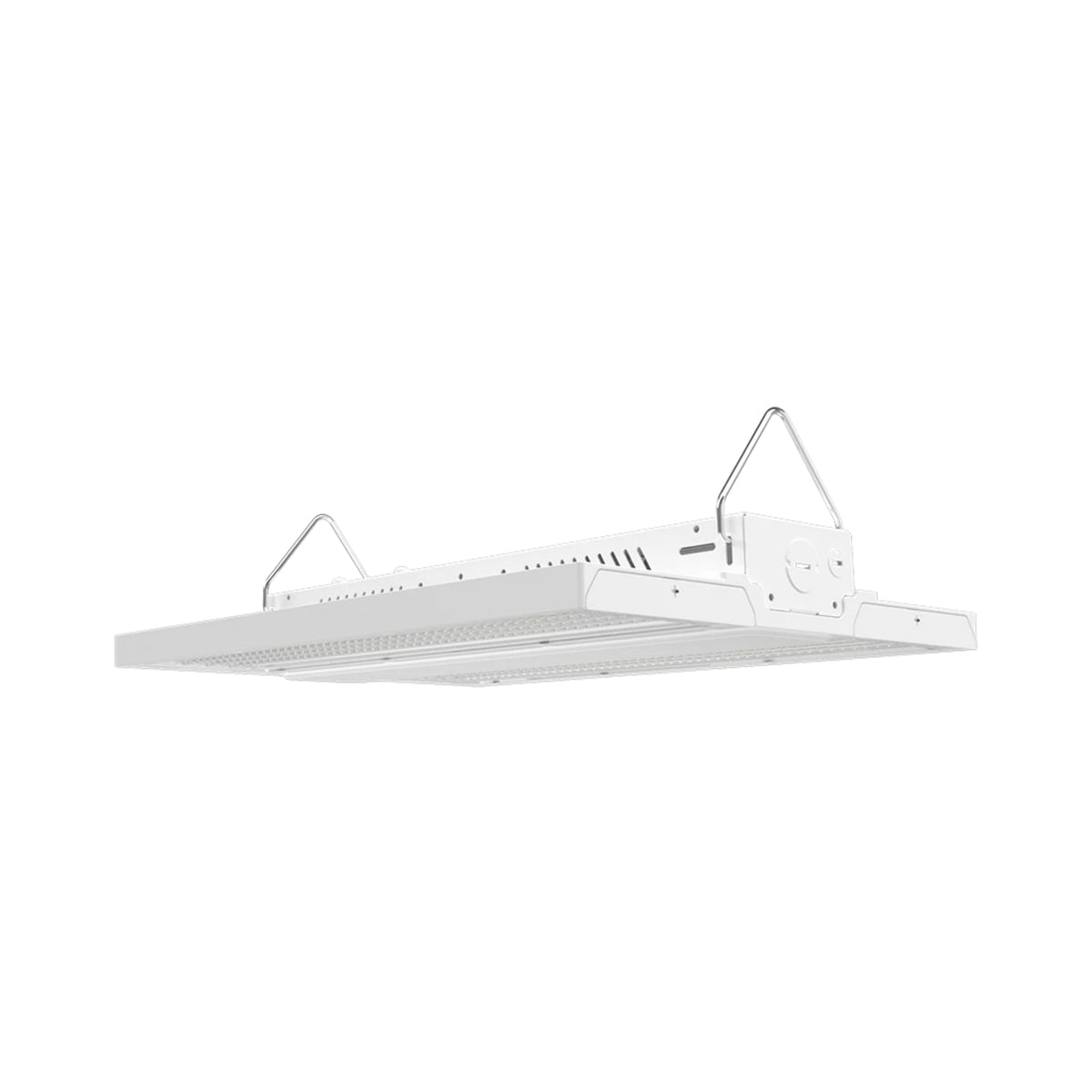

RAB RBAY15 Field-Adjustable Linear High Bay — 400/320/260/220/160/130/100/80W Selectable — 3500K/4000K/5000K — 120-277V/480V — White

The RAB RBAY15 is a field-adjustable linear high bay available in three ordering configurations — RBAY15S, RBAY15M, and RBAY15L — delivering documented output up to 61,882 lm across 400/320/260/220/160/130/100/80W selectable wattage steps and 3500K/4000K/5000K selectable color temperatures. It operates on 120-277V or 480V input, dims via a separate 0-10V dimming circuit down to 10%, and is UL Listed as suitable for damp locations. Each configuration is DLC Listed at the Premium tier. Its standout feature is a field-rotatable optic that switches between 90°/90° general-area distribution and 45°/110° aisle-focused distribution without changing fixtures.

Key Features

• Field-Adjustable Wattage: RBAY15S offers 130/100/80W, RBAY15M offers 260/220/160W, and RBAY15L offers 400/320/260W, each field-selectable at install.
• Maximum Output: Documented lumen output reaches 21,023 lm (RBAY15S), 41,366 lm (RBAY15M), and 61,882 lm (RBAY15L) depending on wattage, CCT, and voltage.
• Peak Efficacy: Efficacy reaches up to 170.4 lm/W (RBAY15S), 171.5 lm/W (RBAY15M), and 173.1 lm/W (RBAY15L) across documented configurations.
• CRI: Color Rendering Index ranges from 82 to 86 depending on configuration.
• Selectable CCT: Field-adjustable between 3500K, 4000K, and 5000K, defaulting to 4000K.
• Rotatable Beam Optics: Optics rotate between 90°/90° and 45°/110° distributions for general-area or aisle-focused lighting.
• 0-10V Dimming: Driver includes 0-10V dimming control wiring, dimmable down to 10% on a separate 0-10V DC dimming circuit.
• Constant-Current Driver: Class 1 constant-current driver operates on 120-277V or 480V, 50/60Hz.
• Damp Location Listed: UL Listed as suitable for damp locations.
• Operating Temperature: Minimum starting temperature of −40°F (−40°C) standard, or 32°F (0°C) with battery backup; maximum ambient of 122°F (50°C) (113°F (45°C) for RBAY15M/RBAY15L with battery backup).
• Certifications: UL Listed and DLC Listed at the Premium tier.
• Rated Life: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Warranty: RAB 5-year limited warranty covering light output and driver.
• Sensor Port: Built-in sensor port accepts standard or Lightcloud Blue-enabled PIR/MVS sensors (sold separately).

Performance & Light Output

At default wattage, 120-277V, 90°/90° beam: RBAY15S at 130W: 18,485 lm (3500K / 140.0 lm/W), 21,019 lm (4000K / 158.1 lm/W), 19,040 lm (5000K / 146.2 lm/W). RBAY15M at 260W: 38,179 lm (3500K / 146.9 lm/W), 41,007 lm (4000K / 165.9 lm/W), 38,074 lm (5000K / 148.0 lm/W). RBAY15L at 400W: 56,315 lm (3500K / 136.0 lm/W), 61,016 lm (4000K / 150.0 lm/W), 59,010 lm (5000K / 146.0 lm/W). Output varies further by beam angle, wattage step, and 480V driver option; see Key Features for the family's peak documented output and efficacy.

CRI is documented between 82 and 86 across configurations. Rated life is 100,000 hours, based on IES LM-80 results and TM-21 calculations.

Lens & Optics

The RBAY15's field-adjustable optic rotates 180 degrees between two documented beam patterns.

• 90°/90° Beam: General-area, wide-floor distribution.
• 45°/110° Beam (rotated): Narrow-aisle and racking-focused distribution.

Smart & Control Features

The RBAY15 includes a built-in sensor port compatible with standard PIR/MVS occupancy sensors or Lightcloud Blue-enabled PIR/MVS sensors.

• Standard PIR/MVS occupancy sensors (sold separately)
• Lightcloud Blue-enabled PIR/MVS sensors for Bluetooth Mesh wireless control via the Lightcloud Blue mobile app (sold separately)
• MSR1 Multi-Sensor Remote Control for adjusting settings on non-Lightcloud Blue sensors (sold separately)

Lightcloud Blue uses RAB's Rapid Provisioning technology to commission devices without a gateway or hub.

Electrical

Driver: Constant Current, Class 1, 120-277V or 480V, 50/60Hz.

Surge Protection: L/N-PE: 6kV, L-N: 6kV.

Dimming: 0-10V dimming control wiring, dims down to 10%, requires a separate 0-10V DC dimming circuit.

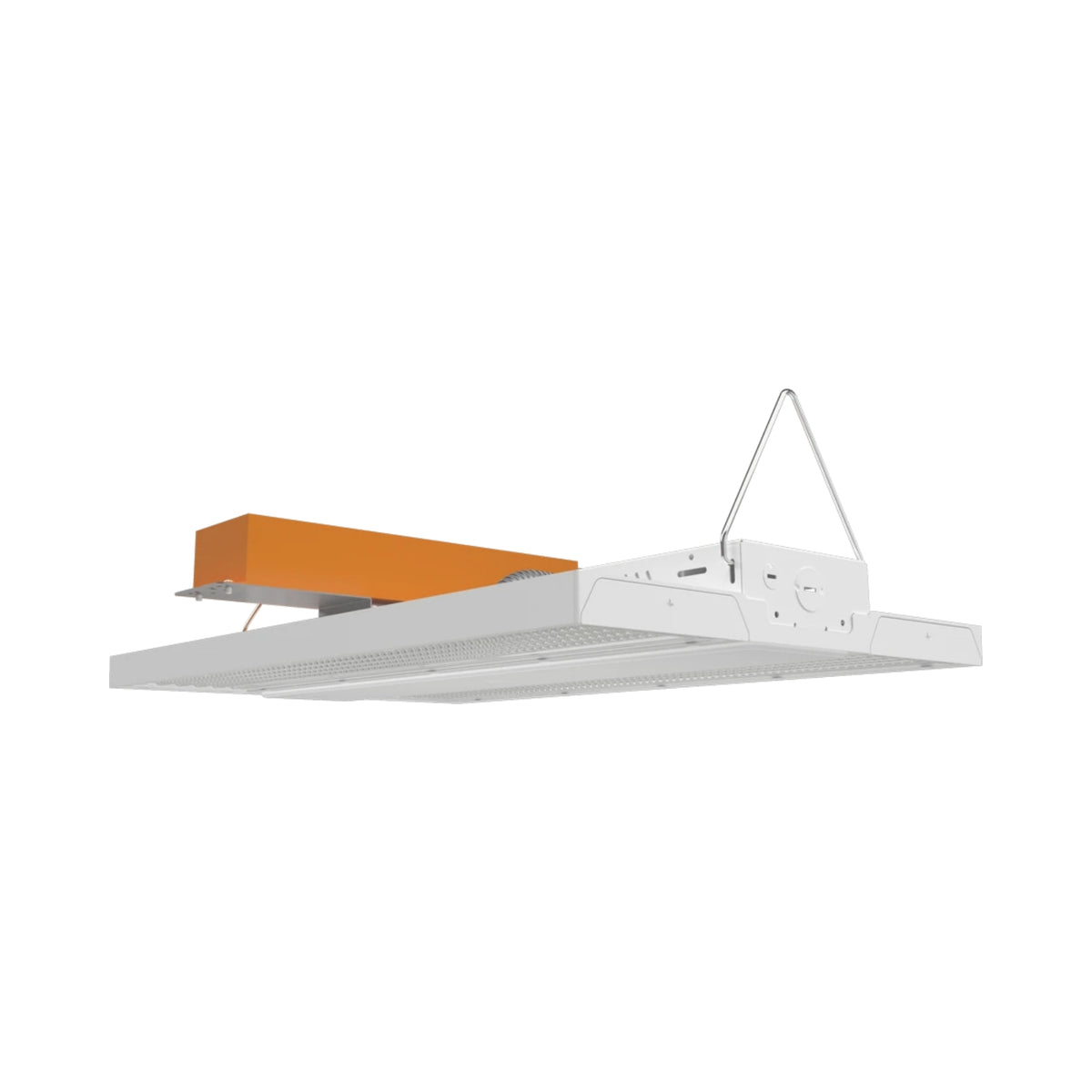

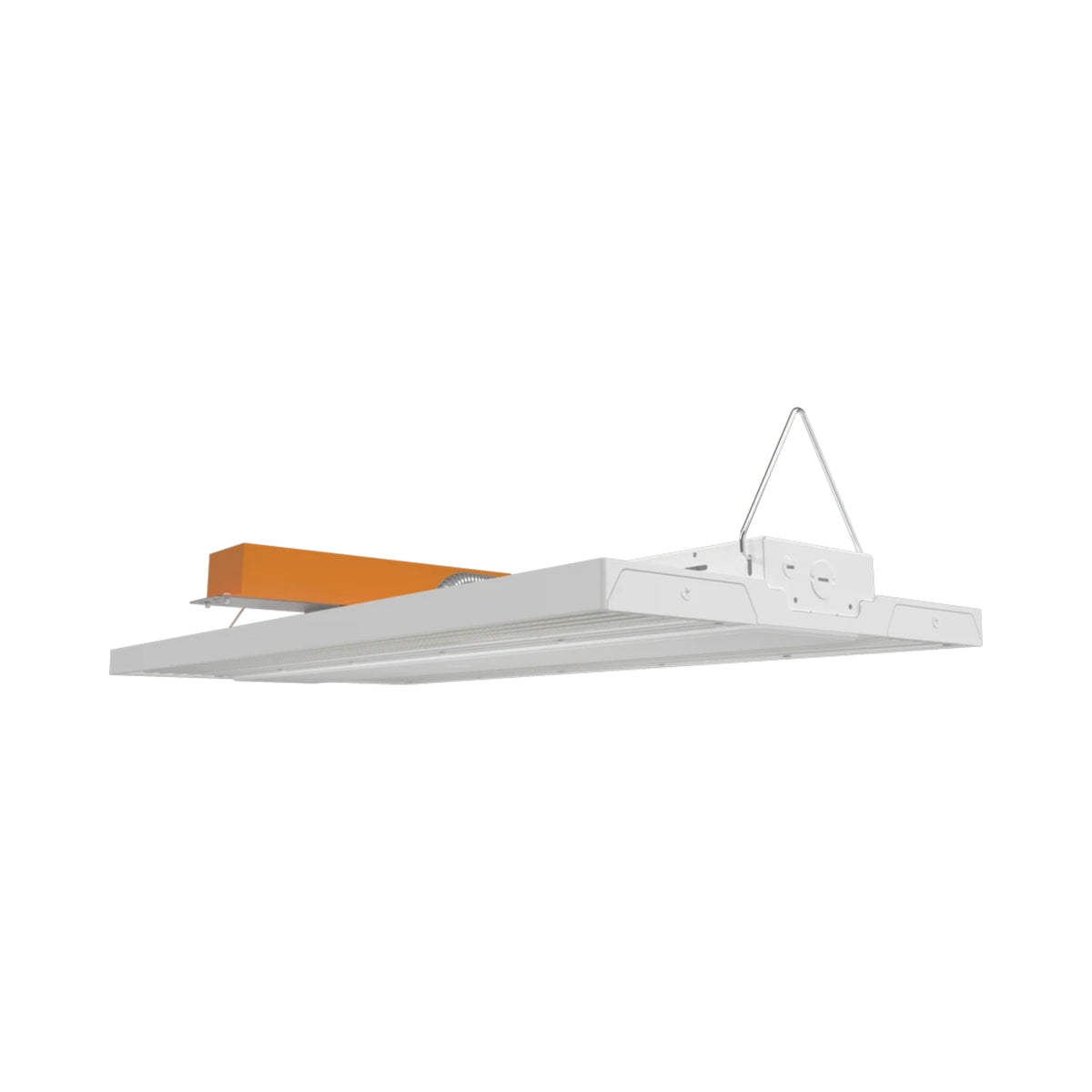

Battery Backup (optional): Operates the LED load for 90 minutes on power loss; wired for both 120-277V and 480V.

THD: RBAY15S 130W: 3.2% at 120V, 6.8% at 277V, 10.8% at 480V. RBAY15M 260W: 3.3% at 120V, 8.8% at 277V, 5.8% at 480V. RBAY15L 400W: 7.3% at 120V, 8.3% at 277V, 7.1% at 480V.

Power Factor: RBAY15S 130W: 99.8% at 120V, 94.0% at 277V, 91.9% at 480V. RBAY15M 260W: 99.8% at 120V, 97.5% at 277V, 96.3% at 480V. RBAY15L 400W: 99.5% at 120V, 98.0% at 277V, 95.5% at 480V.

Operating current and amp draw across documented input voltages:

Construction

Housing: Aluminum housing.

Lens & Optics: See Lens & Optics above for the documented rotatable optic system. Lens material is polycarbonate; reflector is polycarbonate.

Finish: White finish, formulated for high durability and long-lasting color.

Environmental Sealing: UL Listed as suitable for damp locations. Minimum starting temperature of −40°F (−40°C) standard, or 32°F (0°C) with battery backup. Maximum ambient of 122°F (50°C) standard, or 122°F (50°C) (RBAY15S) / 113°F (45°C) (RBAY15M, RBAY15L) with battery backup.

Weight: RBAY15S: 4.4 lbs (7.2 lbs with battery backup). RBAY15M: 7.87 lbs (10.07 lbs with battery backup). RBAY15L: 12.71 lbs (14.95 lbs with battery backup).

Installation & Mounting

Standard Hardware: Comes standard with V-hooks for chain mounting.

Accessories Sold Separately:

• Mounting: PMKRBAY15S pendant mount kit for RBAY15S — sold separately.
• Mounting: PMKRBAY15 pendant mount kit for RBAY15M and RBAY15L — sold separately.
• Mounting: SMKRBAY15S surface mount kit for RBAY15S — sold separately.

Certifications & Rebates

• UL Listed.
• Suitable for damp locations.
• DLC Listed, Premium tier. RBAY15S: S-Q4MQMG (120-277V), S-BFVHW7 (480V). RBAY15M: S-V4JPQ0 (120-277V), S-ZV0Q2H (480V). RBAY15L: S-CPV1Q9 (120-277V), S-HSKB3M (480V). Rebate availability varies by utility and location; verification available at designlights.org.
• RoHS-compliant components; mercury and UV free.

Typical Applications

• Open Warehouse Floors: The 90°/90° beam setting and up to 61,882 lm documented output suit wide, open-floor illumination.
• Aisle & Racking Areas: Rotating the optic to 45°/110° focuses light down narrow aisles and racking corridors.
• Damp or Semi-Enclosed Spaces: UL Listed as suitable for damp locations.
• Facilities on 480V Power Distribution: A documented 480V driver option supports high-voltage industrial electrical systems.
• Facilities Needing Backup Lighting: The optional battery backup runs the LED load for 90 minutes during a power outage.

What's Included

• RAB RBAY15 (S, M, or L) Field-Adjustable Linear High Bay, White finish.
• V-hooks for chain mounting.
• Factory-installed 0-10V dimming control wiring.
• Polycarbonate lens and polycarbonate reflector.
